marposs P7WB - Parameters for Manual Balancing with Weights; Wheel Rotation and Angle Evaluation Direction

– Programming Manual 18. Balancing heads Info 115

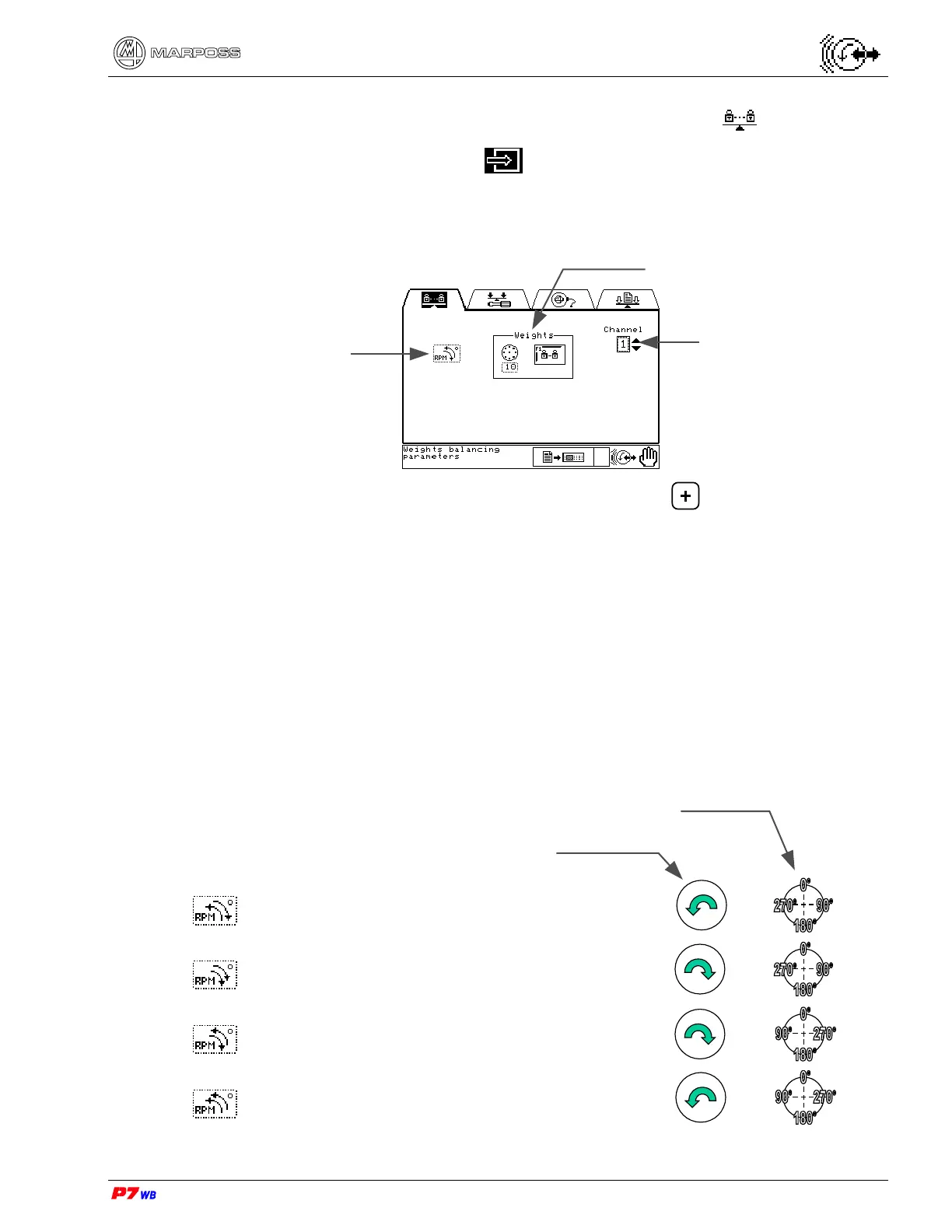

18.1. Parameters for manual balancing with weights
Page A3 of the “External Info” folder menu map (section 8.4, page 3).
The meaning of the displayed parameters is as follows:
(1) Channel selection: with the field highlighted, press to view the desired
channel.
18.1.1. Wheel rotation direction (RPM) / Angle evaluation direction (°)
“Angle evaluation direction” means:
• indexed scale on the wheel flange, for angular positioning of the balancing
weights in case of “fixed weights/variable angles” manual balancing.
• direction of holes angular positioning on the wheel flange in case of “variable
weights/fixed angles” manual balancing.
The possible combinations are:
Wheel rotation → counter-clockwise
Angle evaluation → clockwise
Wheel rotation → clockwise
Angle evaluation → clockwise
Wheel rotation → clockwise
Angle evaluation → counter-clockwise
Wheel rotation → counter-clockwise
Angle evaluation → counter-clockwise
Wheel rotation direction (RPM)
/ Angle evaluation direction (°)
Channel selection (1)
No. of holes and wei
g
hts
Angle evaluation direction (°)
Wheel rotation direction (RPM)
