(2) Detailed setting screen
Make the IP address, clock, MD function, and option settings of the C Controller
module.

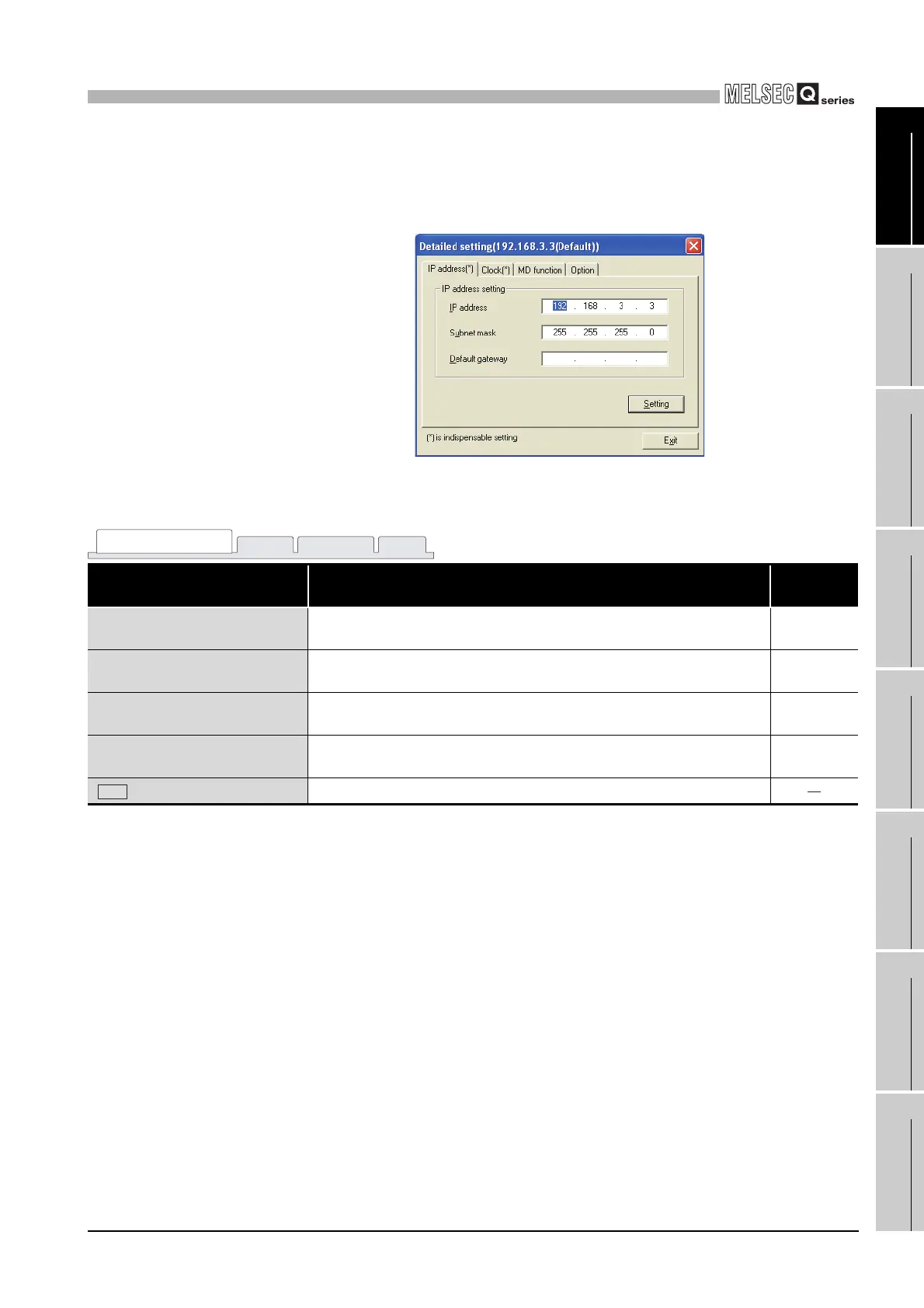

Figure 9.34 Detailed setting screen
Table9.16 Explanation of Detailed setting screen
Item Description
Reference
section
<<IP address>> tab Set the IP address to be used by the C Controller module.
This section
(2)(a)
<<Clock>> tab Set the clock of the C Controller module.
This section
(2)(b)
<<MD function>> tab
Set the timeout period of communication made by the MELSEC data link
function.
This section
(2)(c)
<<Option>> tab
Set the processing priority for communication with the C Controller
module.
This section
(2)(d)
button
Closes the "Detailed setting" screen.
IP address(*)
Clock(*) MD function Option
Exit
