9 - 38
9.2 C Controller Setting Utility
9.2.6 Operating Online operation screen
9
UTILITY OPERATION
(a) IP address setting screen
Set the IP address to be used by the C Controller module.
* 1 When the "IP address" screen is opened, the IP address setting used by the C Controller module
is read and displayed.
When IP address reading is failed, an error message appears and the initial value is displayed in
the each item of "IP address setting".
* 2 The IP address can be set to the initial value by the hardware self-diagnostic function of the C
Controller module.
* 3 The set IP address becomes valid when the C Controller module is powered off and then on or is
reset.
When the IP address of the C Controller module has been changed, make the connection target
setting with the new IP address.
1) IP address setting range
The IP addresses available for the C Controller module are indicated below.
Before setting the IP address, consult your network administrator (network
planner or IP address manager).

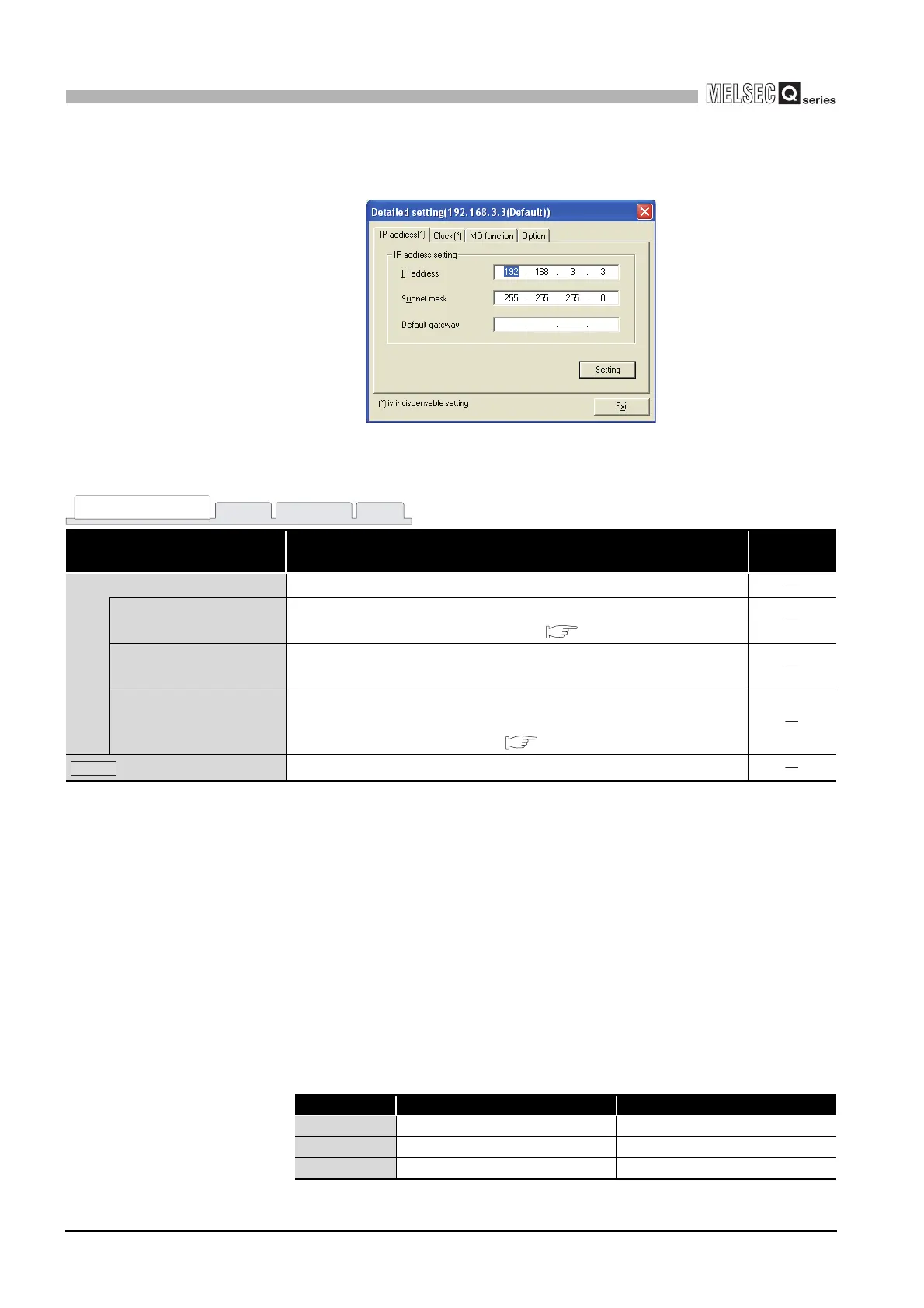

Figure 9.35 IP address screen
Table9.17 Explanation of IP address screen
Item Description
Reference
section
IP address setting
*1, *2
Displays and sets the IP address used by the C Controller module.
IP address
Displays and sets the IP address of the C Controller module.
(Initial value: 192.168.3.3, Setting range: This section (2)(a)1))
Subnet mask
Displays and sets the subnet mask of the C Controller module.
(Initial value: 255.255.255.0, Setting range: 0.0.0.0 to 255.255.255.255)
Default gateway
Sets the IP address of the default gateway used by the C Controller
module.
(Initial value: None, Setting range: This section (2)(a)1))
button
*3
Writes the "IP address setting" data to the C Controller module.
Table9.18 IP address setting range
Class High-order bits of IP address IP address range
A 0 0.0.0.1 to 126.255.255.255
B 10 128.0.0.0 to 191.255.255.255
C 110 192.0.0.0 to 223.255.255.255
IP address(*)
Clock(*) MD function Option
Setting
To Next Page
