9 - 62
9.3 CC-Link utility
9.3.2 Operating Module information screen
9
UTILITY OPERATION
(c) Details of error status
The following indicates the details of the error status.
(2) Module detail information screen
This screen displays the detailed information of the CC-Link module.
Table9.37 Details of error status
Display Description
Normal Normal status.
Transport error Transmission channel error was detected.
Parameter error Parameter error was detected.
CRC error CRC error was detected.
Timeout error Timeout error was detected.
Abort error CC-Link module (gate array) error was detected.
Setting error Setting error was detected.
Illegal Any other error was detected.

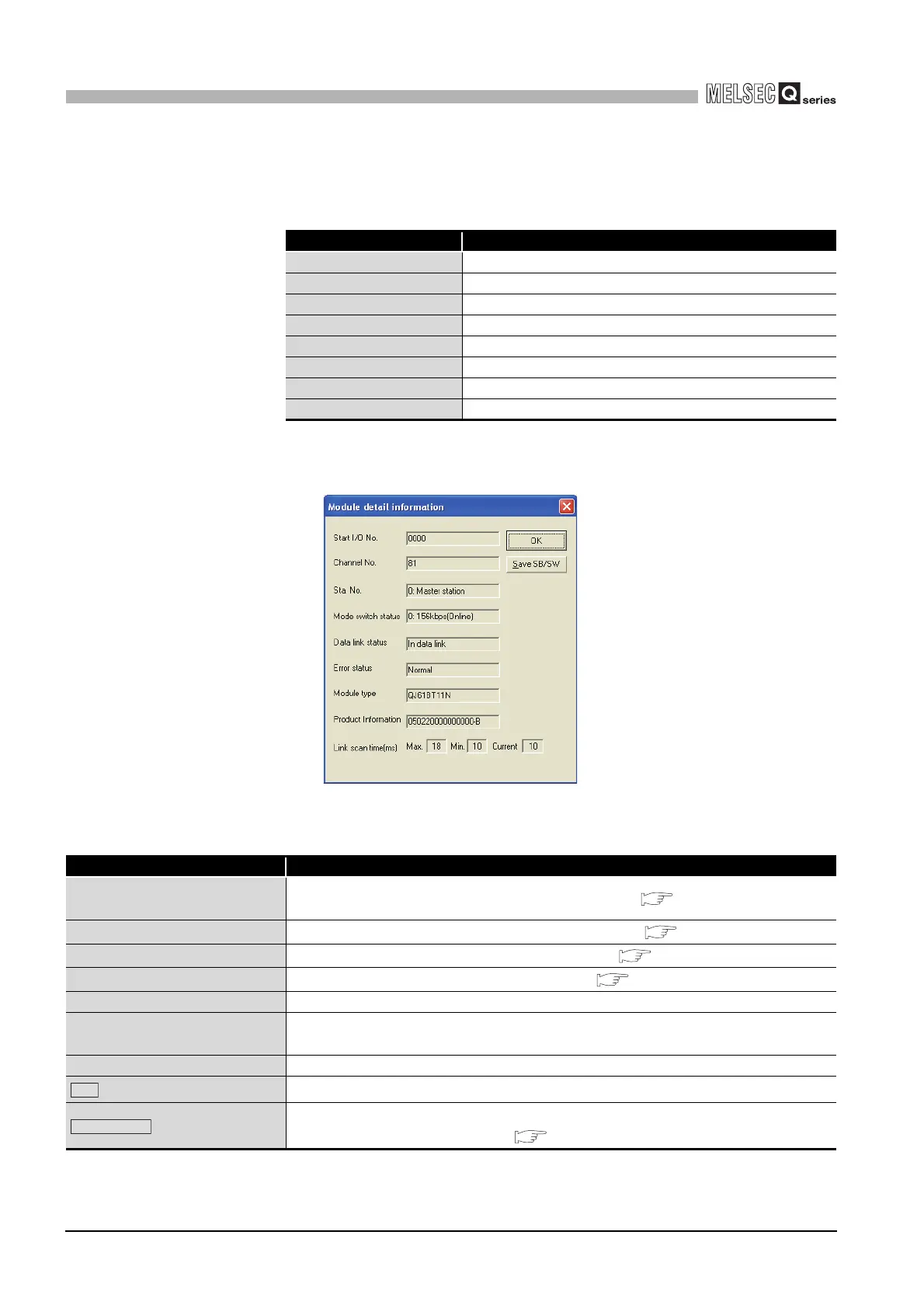

Figure 9.52 Module detail information screen
Table9.38 Explanation of Module detail information screen
Item Description
Start I/O No., Channel No.,
Sta. No.
Display the detailed information of the CC-Link module. ( This section (1))
Mode switch status
Displays the mode switch status of the CC-Link module. ( This section (2)(a))
Data link status
Displays the data link status of the CC-Link module. ( This section (1)(b))
Error status
Displays the error status of the CC-Link module. ( This section (1)(c))
Module type Displays the module name of the CC-Link module.
Product Information
Displays the product information (serial No. and function version) of the CC-Link
module.
Link scan time Displays the Max., Min. and current link scan times of the CC-Link module. (Unit: ms)
button
Closes the "Module detail information" screen.
button
Saves the link special relay (SB) and link special register (SW) information of the CC-
Link module into a CSV format file. (
This section (3))
OK
Save SB/SW
