Mitsubishi MELSEC Q Series User Manual

9
UTILITY OPERATION
9.3 CC-Link utility
9.3.5 Operating Parameter setting screen
9 - 75
9
UTILITY OPERATION
10
FUNCTIONS AND PROGRAMMING
11
OVERVIEW OF MULTIPLE CPU SYSTEM
12
MULTIPLE CPU SYSTEM CONFIGURATION
13
MULTIPLE CPU SYSTEM CONCEPT
14
COMMUNICATIONS BETWEEN CPU MODULES
15
PARAMETERS ADDED FOR MULTIPLE CPU
16
PRECAUTIONS FOR USE OF AnS SERIES MODULE
(a) Number assigned to target modules
The numbers are assigned to the target modules in ascending order of the "start I/
O No." starting from 1 when this tab is opened or when the parameter setting file
is loaded.
When reassigning numbers to the target modules, the parameter settings are
retained.
1) The position where "start I/O No." is "00" is empty
2) A module has been added to the position where "start I/O No." is "00"

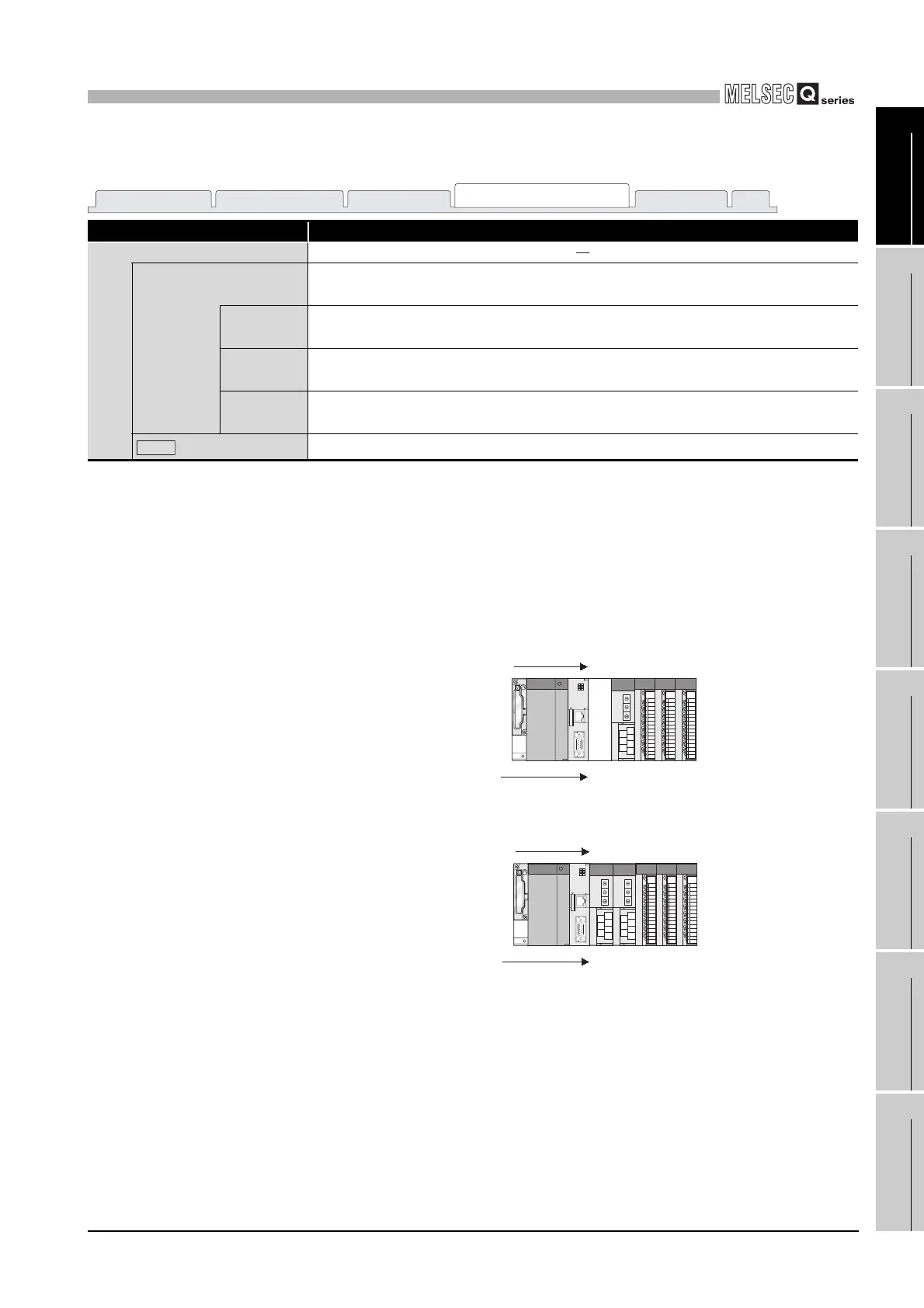

Table9.49 Explanation of Parameter setting screen (Continued)
Item Description
Station information setting
Intelligent buffer select
(word)
This setting is available only when "Intelligent device station", "Ver. 1 Intelligent device
station", or "Ver.2 Intelligent device station" is selected in "Station type".
Send
Specify the send area. (Word unit)
(Initial value: 64, Setting range: 0, 64 to 4096)
Receive
Specify the receive area. (Word unit)
(Initial value: 64, Setting range: 0, 64 to 4096)
Automatic
Specify the automatic update area. (Word unit)
(Initial value: 128, Setting range: 0, 128 to 4096)
button
Clears the "Station information setting" parameters and sets the initial values.
Figure 9.58 Position where "start I/O No." is "00" is empty
Figure 9.59 Module has been added to the position where "start I/O No." is "00"
Module information
Other station monitor Online operation
Parameter setting
Target setting Test
Clear
1
Target module
Empty
00 20Start I/O No.
21
Target module
00 20Start I/O No.
