(4) Equal assignment screen
The link device points of all stations can be equally assigned on this screen.
The start and end station values show the number of the equal assignment stations
and the setting must be within (Total link stations - (Start station No. - 1)).
(a) When "LB/LW setting" is set for "Switch screens" on "Parameter setting"
screen
* 1 "Total stations" is set in "Network range assignment" on the "Parameter setting" screen
( This section (1)).

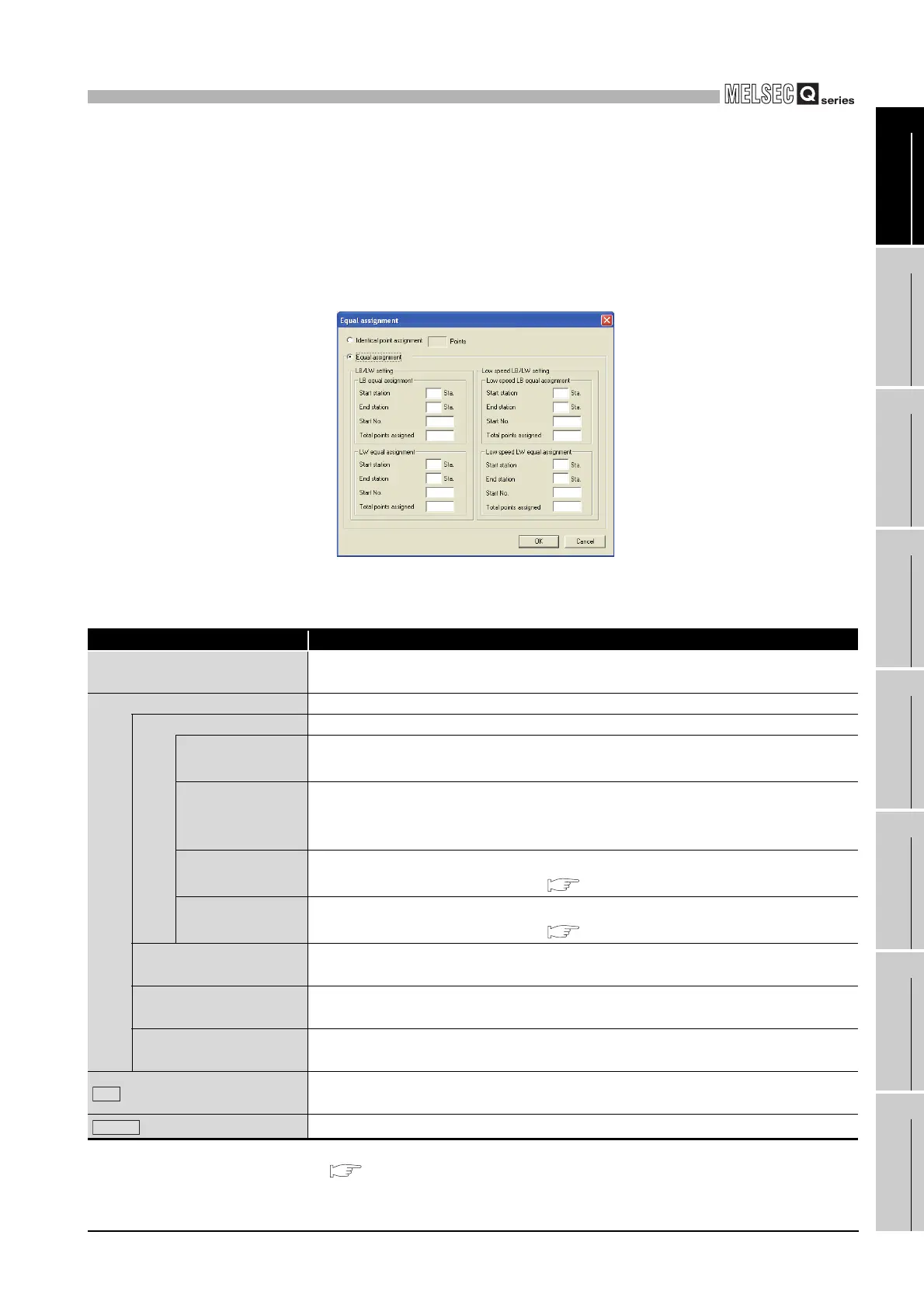

Figure 9.93 Equal assignment screen (for LB/LW setting)
Table9.84 Explanation of Equal assignment screen (for LB/LW setting)
Item Description
Identical point assignment
Equally assigns the input points to the link devices of each station. (Unit: 16 points)
(Initial value: "(Blank)", Setting range: 16 or more)
Equal assignment Equally divides the input points and assigns them to the link devices of each station.
LB equal assignment Set the method for equal assignment to LB.
Start station
Set the first of the stations to which equal assignment will be performed.
(Initial value: "(Blank)", Setting range: 1 to ("Total stations"
*1
setting))
End station
Set the last of the stations to which equal assignment will be performed.
(Initial value: "(Blank)", Setting range: ("Start station" setting) to ("Total stations"
*1
setting))
Start No.
Set the start No. of the link device to be equally assigned.
(Initial value: "(Blank)", Setting range: This section (1)(a))
Total points
assigned
Set the total points of the link device to be equally assigned.
(Initial value: "(Blank)", Setting range: This section (1)(a))
LW equal assignment
Set the method for equal assignment to LW.
Set each setting item as in "LB equal assignment".
Low speed LB equal
assignment
Set the method for equal assignment to low speed LB.
Set each setting item as in "LB equal assignment".
Low speed LW equal
assignment
Set the method for equal assignment to low speed LW.
Set each setting item as in "LB equal assignment".
button
Executes equal assignment according to the settings, and closes the "Equal
assignment" screen.
button
Closes the "Equal assignment" screen without executing equal assignment.
OK
Cancel
