9 - 126
9.4 MELSECNET/H Utility
9.4.6 Operating Parameter setting screen
9
UTILITY OPERATION
(b) When "LX/LY setting (1)" or "LX/LY setting (2)" is set for "Switch screens"
on "Parameter setting" screen
* 1 "Total stations" is set in "Network range assignment" on the "Parameter setting" screen
( This section (1)).

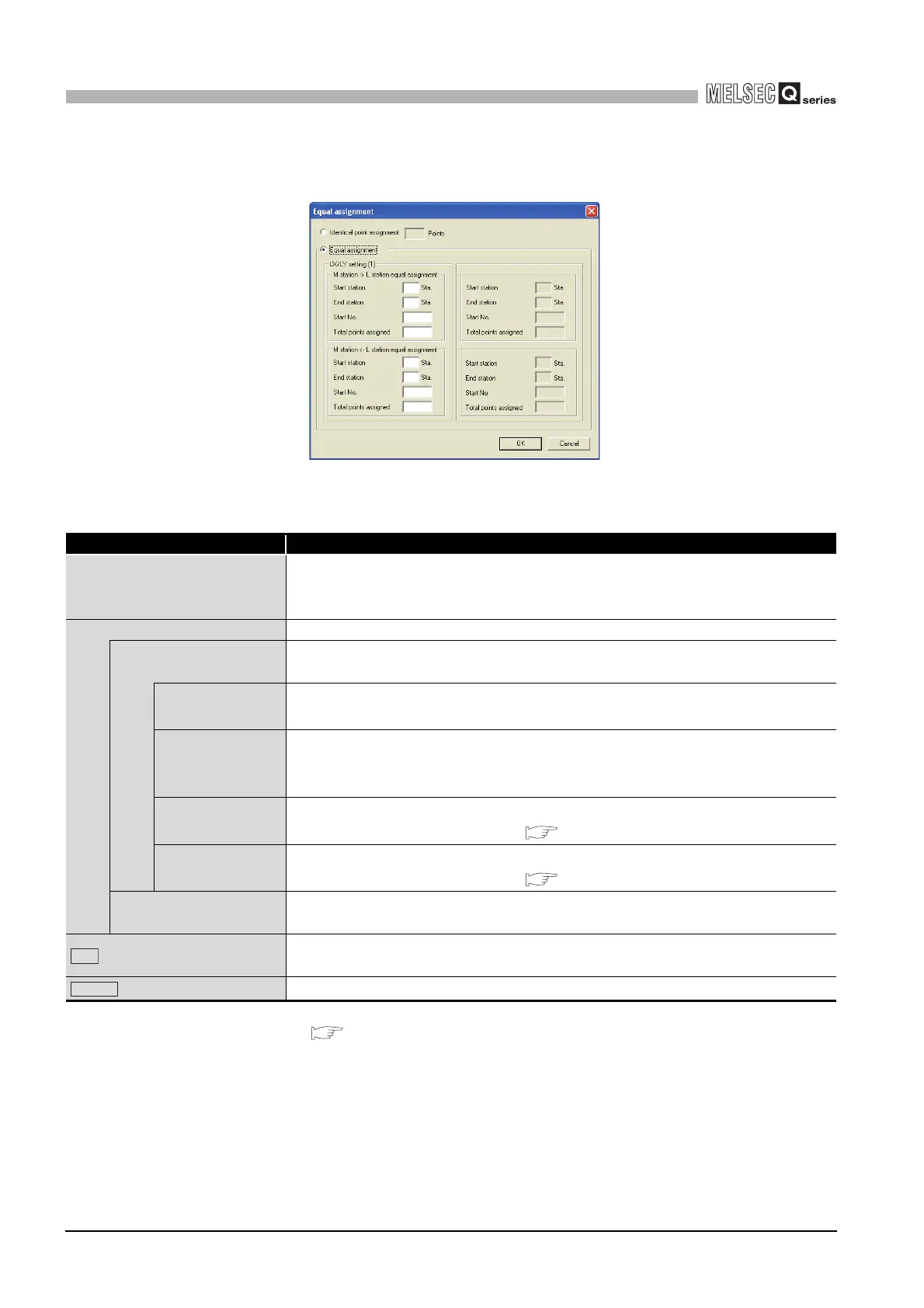

Figure 9.94 Equal assignment screen (for LX/LY setting (1))
Table9.85 Explanation of Equal assignment screen (for LX/LY setting (1)/(2))
Item Description
Identical point assignment
Equally assigns the input points to the link devices of each station. (Unit: 16 points)
Note that no points are assigned to the station set as an I/O master station.
(Initial value: "(Blank)", Setting range: 16 or more)
Equal assignment Equally divides the input points and assigns them to the link devices of each station.
M station -> L station equal
assignment
Set the method of making equal assignment to LY(1) or LY(2).
Start station
Set the first of the stations to which equal assignment will be performed.
(Initial value: "(Blank)", Setting range: 1 to ("Total stations"
*1
setting))
End station
Set the last of the stations to which equal assignment will be performed.
(Initial value: "(Blank)", Setting range: ("Start station" setting) to ("Total stations"
*1
setting))
Start No.
Set the start No. of the link device to be equally assigned.
(Initial value: "(Blank)", Setting range: This section (1)(a))
Tota l p oints
assigned
Set the total points of the link devices to be equally assigned.
(Initial value: "(Blank)", Setting range: This section (1)(a))
M station <- L station equal
assignment
Set the method for equal assignment to LX(1) or LX(2).
Set each setting item as in "M station -> L station equal assignment".
button
Executes equal assignment according to the settings, and closes the "Equal
assignment" screen.
button
Closes the "Equal assignment" screen without executing equal assignment.
OK
Cancel
