pair mode. By default this value should be zero, which enables automatic selection
mode.
6.6.2 The Creaser Tools Page

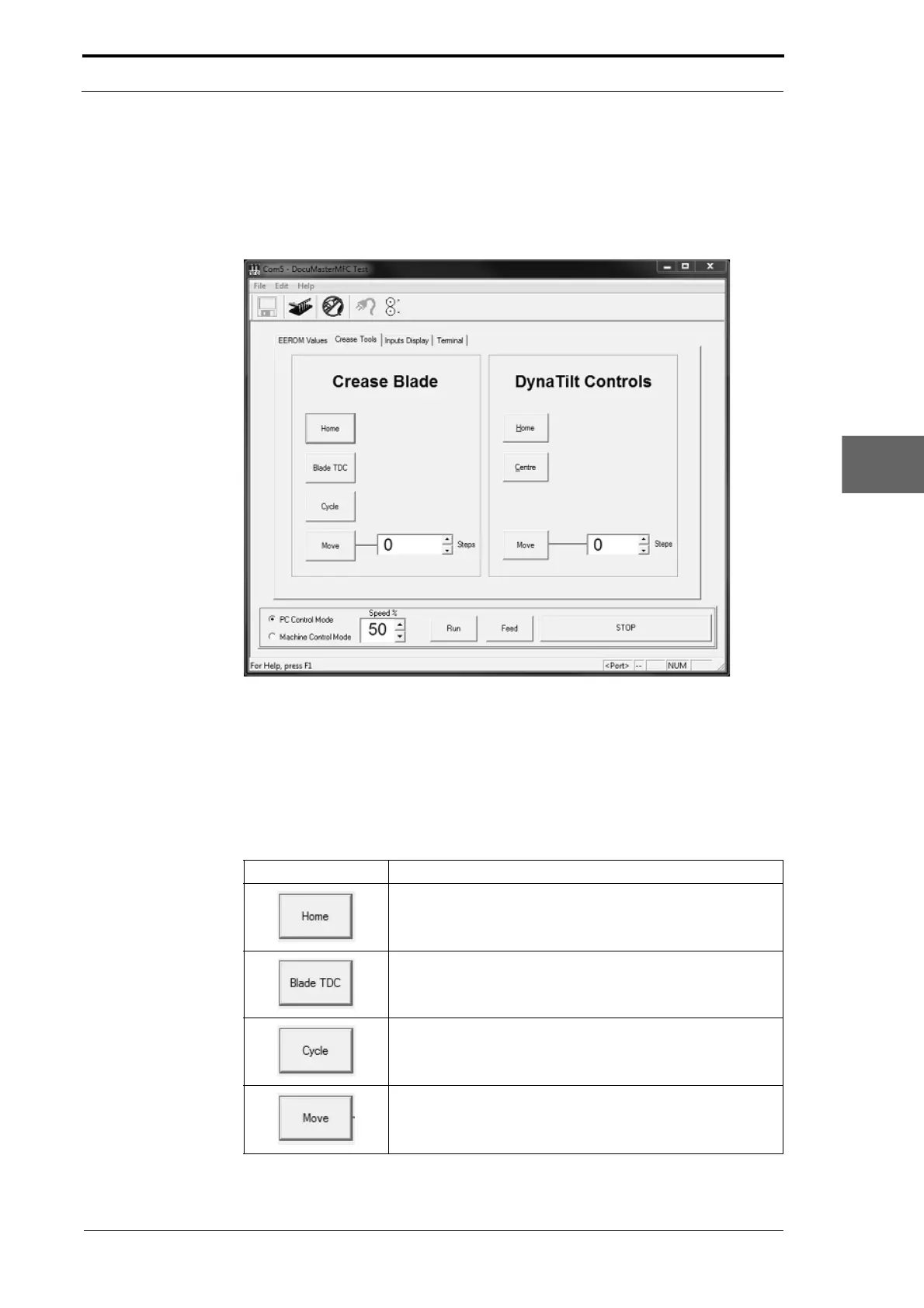

Figure 6.9 The Creaser Tools Page
The Crease Tools page gives you direct control of the creasing mechanism. Use a
command button to test a function on the crease blade mechanism, or the DynaTilt
mechanism.
The Crease Blade Tools
Command Button Information
The 'Home' button makes the crease blade mechanism
move to its home position. The home position is when the
blades-set is open.
The 'Blade TDC' button makes the crease blade mechanism
move to its TDC position. The TDC position is when the
blade-set is at the top of its stroke.
The 'Cycle' button makes the crease blade mechanism do
one complete crease cycle.
The 'Move' button makes the crease blade drive motor move
the amount of steps that have been set in the move setting
field.
