4. Service Procedures - Machine Adjustments and Calibration
86 Morgana DocuMaster MFC - Service Manual

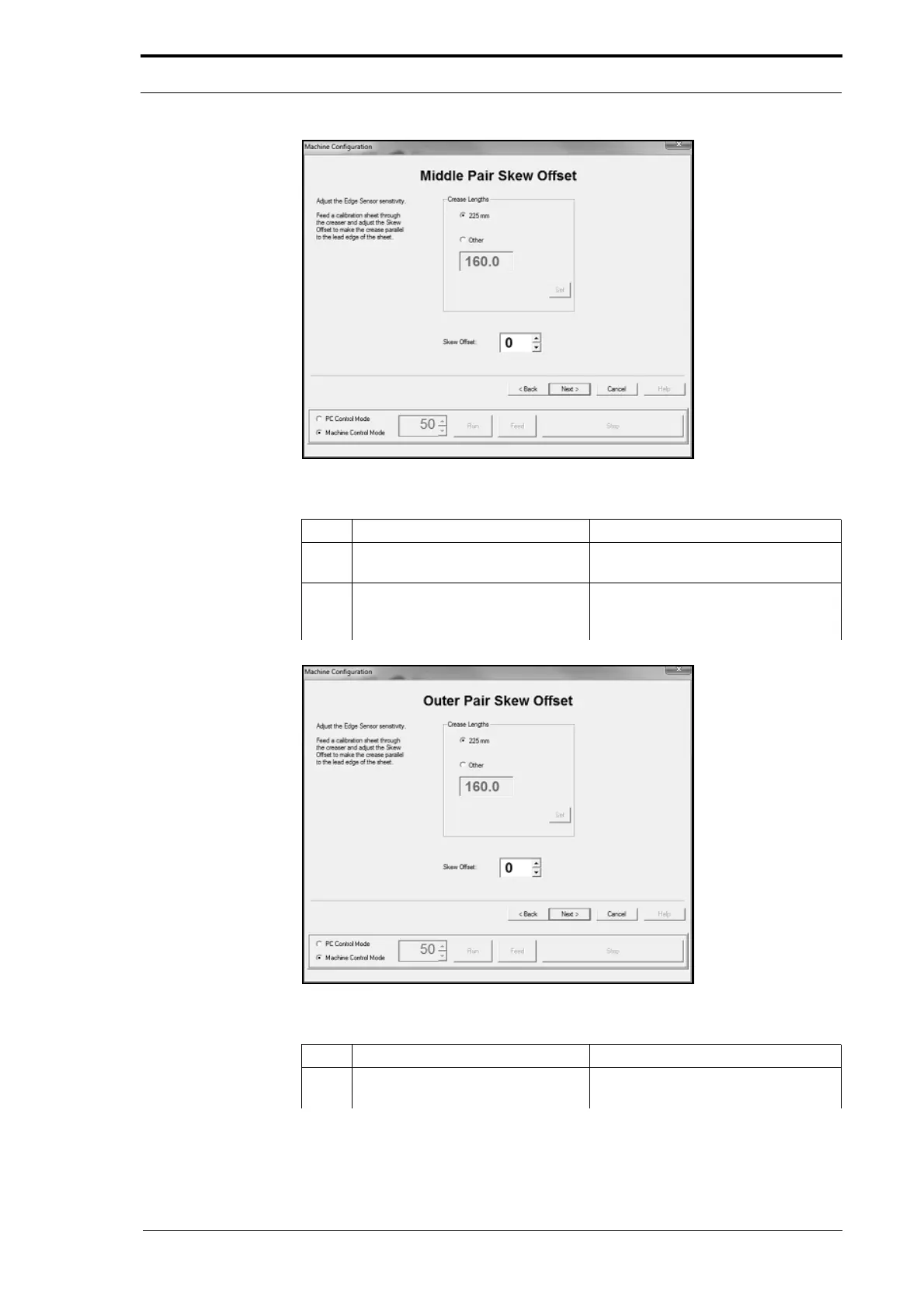

Figure 4.63 Middle Sensor Pair Skew Offset Adjustment Page
Step Action Information
9 Adjust the sensitivity of the middle
p
air of edge-sensors.
(See Section 4.5.20).
10 Adjust the middle pair skew offset
trim to
make the crease parallel to
the lead-edge of the sheet.
Do Steps 5 thru 8.
Figure 4.64 Outer Sensor Pair Skew Offset Adjustment Page
Step Action Information
11 Adjust the sensitivity of the outer
p
air of edge-sensors.
(See Section 4.5.20).
