NEC Express5800 110Ej - WARNING LABELS

To Next Page

To Previous Page

1-2 Notes on Using Your Server

WARNING LABELS

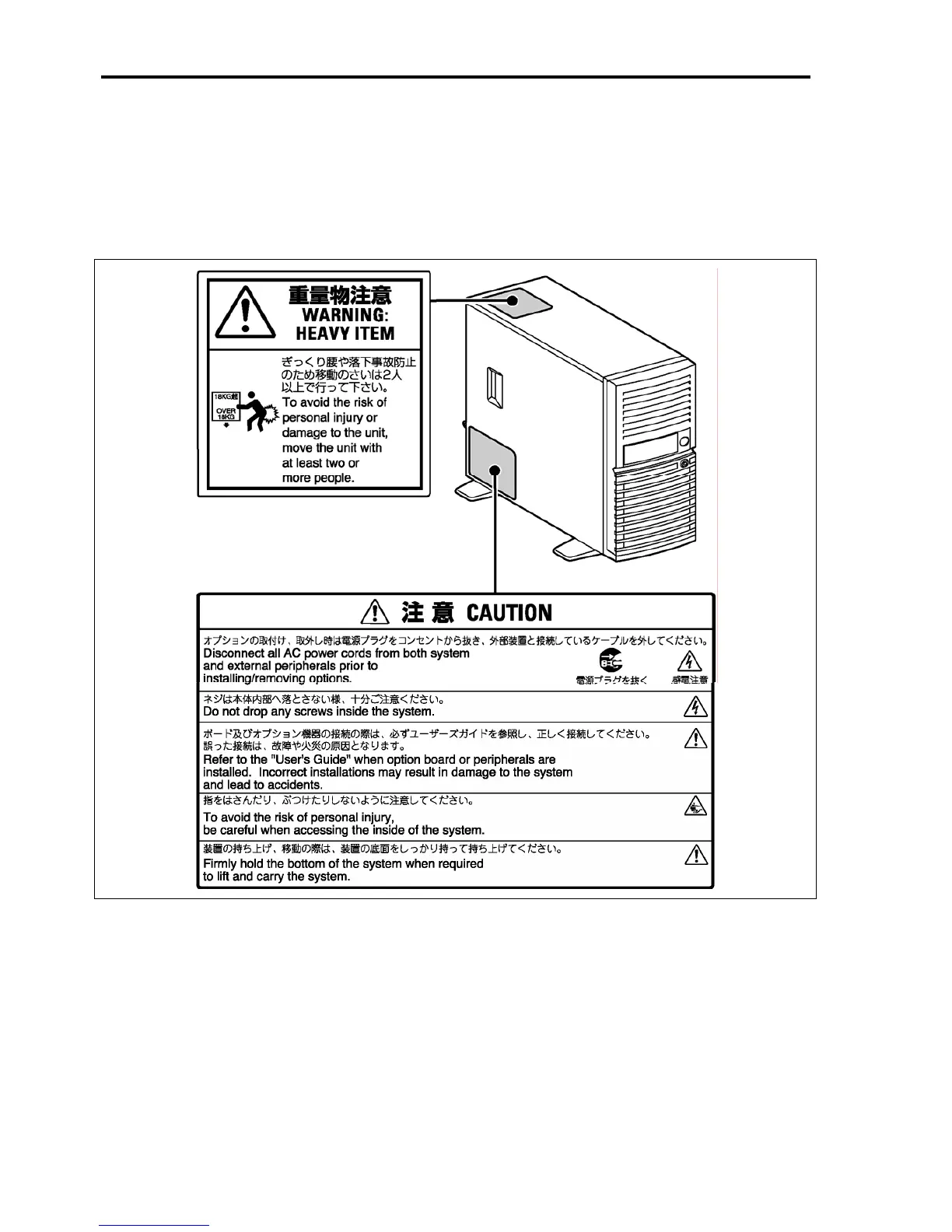

The warning label is attached to components with possible danger or their vicinity in your server to inform the user that

a hazardous situation may arise when operating the server. (Do not intentionally remove or damage any of the labels.)

If you find any labels totally/partially removed or illegible due to damage, contact your sales representative.
