2-8 General Description

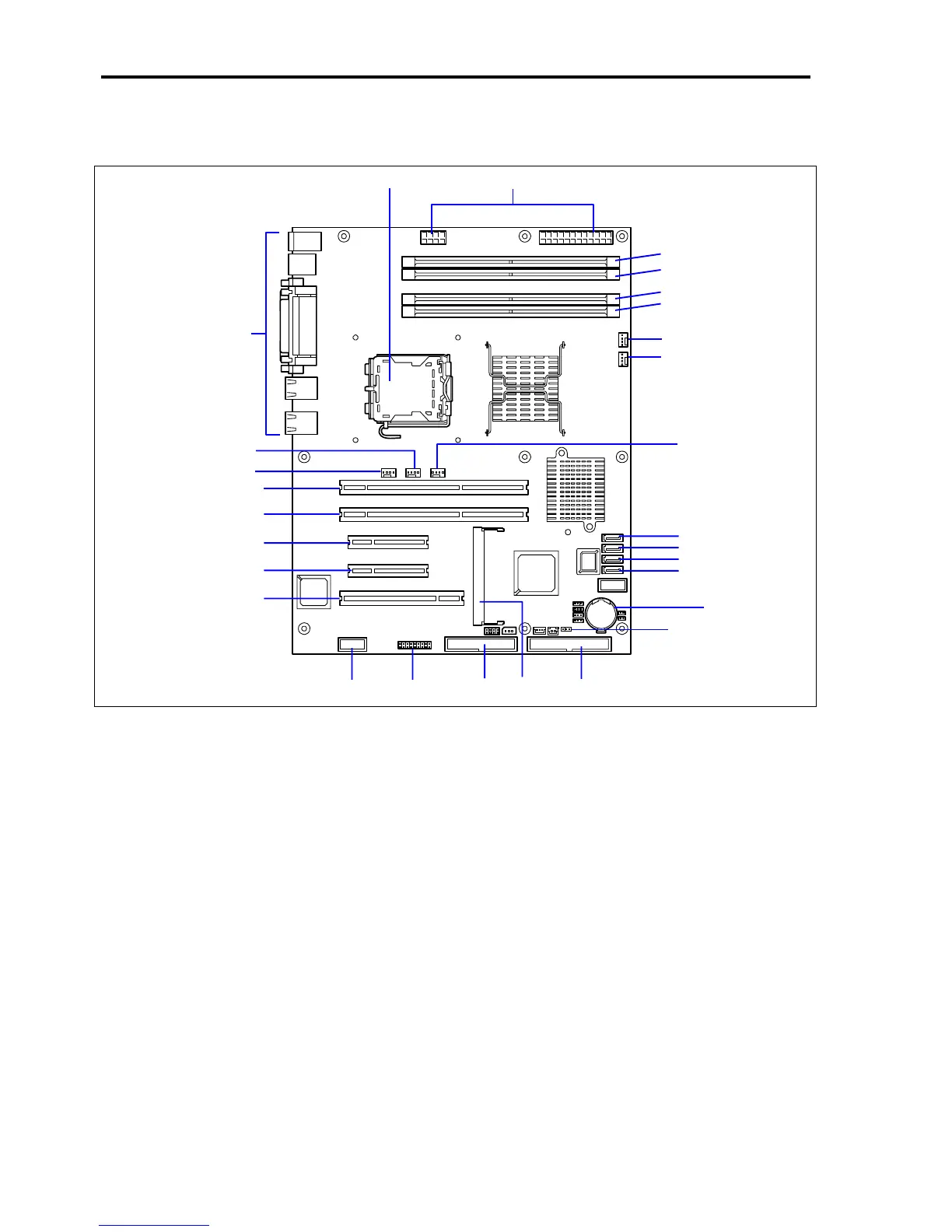

MOTHER BOARD
1
3-4
3-3
3-2
3-1
4-5
4-4
8
5-4
5-3
5-2
5-1
6
7
10 9
14
13-1
13-2
13-3
13-4
13-5
2
1112
4-3
4-2
4-1
1
Processor socket
7
Configuration jumper switch (CMOS/Clear)
2
Power connectors
8
IDE connector
3
DIMM sockets
9
RMC connector
(The last digit shows a DIMM number.)
10
Floppy disk drive connector
4
Cooling fan connector
11
Switch/LED cable connector
4-1: CPU heat sink fan
12
Serial port B connector (for option)
4-2: Rear fan
13
PCI board slots
4-3: Not used 13-1: 64-bit/133MHz PCI-X
4-4: Front fan 13-2: 64-bit/133MHz PCI-X
4-5: Not used 13-3: PCIe ×8
5
Serial ATA connectors 13-4: PCIe ×1 (connector: x8)
(The last digit shows a DIMM number.) 13-5: 32-bit/33MHz PCI-X
6
Lithium battery
14
Connector for external device

NEC Express5800 110Ej Specifications

General

Form Factor	Tower
RAM	Up to 32GB DDR3
Storage	SATA
RAID	RAID 0, 1
Network	Dual Gigabit Ethernet
Hard Drive	Up to 4 x 3.5" SATA HDD
