H-6 Rack-Mount Kit

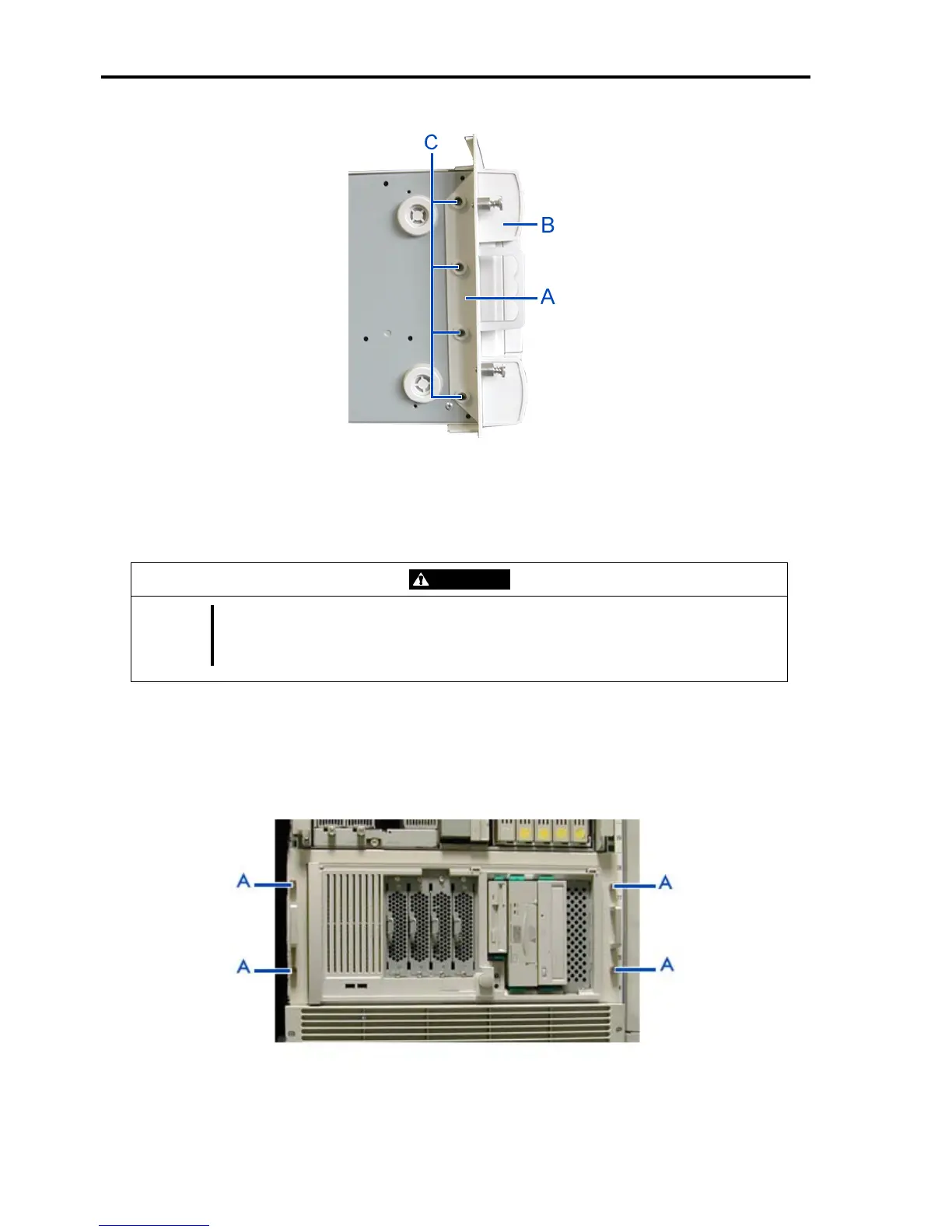

Figure 5: Securing the rack mounting frame
INSTALLING THE SERVER IN THE RACK CABINET
CAUTION
The system weighs around 19 kg. If it contains numerous optional boards and peripheral
devices, it may weigh even more. To avoid personal injury, make sure you have at least one
person help you lift or move the system.
Do not use the handles of the rack mounting frame to lift the server.
1. Lift the server onto the support rails and slide it toward the rear of the
cabinet.
2. Secure the server to the vertical mounting rails with the four thumbscrews
(A in figure 6).
Figure 6: Securing the server to the rack cabinet
