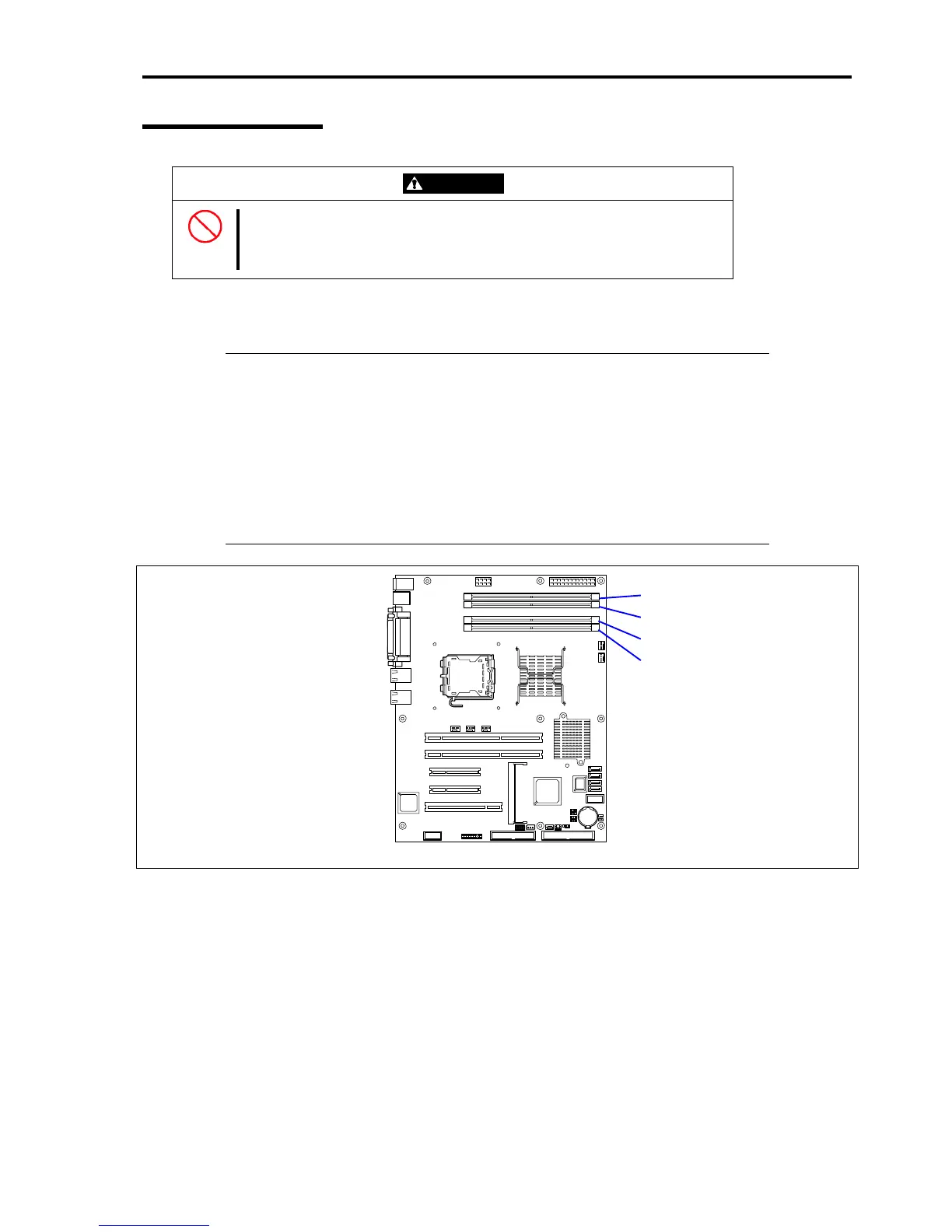

Upgrading Your Server 9-25
DIMM
CAUTION
The qualified service representative can only install or remove the components
described in this subsection. To avoid personal injury or electrical shock, contact
your service representative when your need to install/remove the internal
components.
The DIMM (Dual Inline Memory Module) is installed in a DIMM socket on the mother board installed in the server.
Up to 8GB (2GB × 4) of memory can be added.
IMPORTANT:
îš„ The DIMM is easily affected by static electricity. Handle the DIMM after making your
body contact with a metallic frame section of the server to discharge the static electricity
on your body. Do not make bare hands contact with terminals and components on the
DIMM. In addition, do not put the DIMM on a desk directly. See "Static Precautions"
for details of the static electricity.
îš„ Do not use any DIMM that we do not authorize. If an unapproved third party's DIMM is
installed in the server, not only the DIMM but also the server itself may be defected.
You will be charged by any repair of a malfunction or defect caused by such a device
within the warranty period.
Mother board
DIMM Group #4
DIMM Group #3
DIMM Group #2
DIMM Group #1
FRONT REAR
The mother board in your server supports the dual channel memory configuration.
The dual channel memory configuration increases data transfer rate.
To Next Page
