9-10 Upgrading Your Server
3.5-inch Hard Disk Drive
The hard disk drive bay may contain up to four hard disk drives.
IMPORTANT: Do not use any hard disk drive that we do not authorize. Installing a
third-party's hard drive may cause a failure in the server as well as the hard disk drive.
Repair of any failure or damage in the server caused by such a hard disk drive will be
charged.
CAUTION
The qualified service representative can only install or remove the components
described in this subsection. To avoid personal injury or electrical shock, contact
your service representative when your need to install/remove the internal
omponents.
c

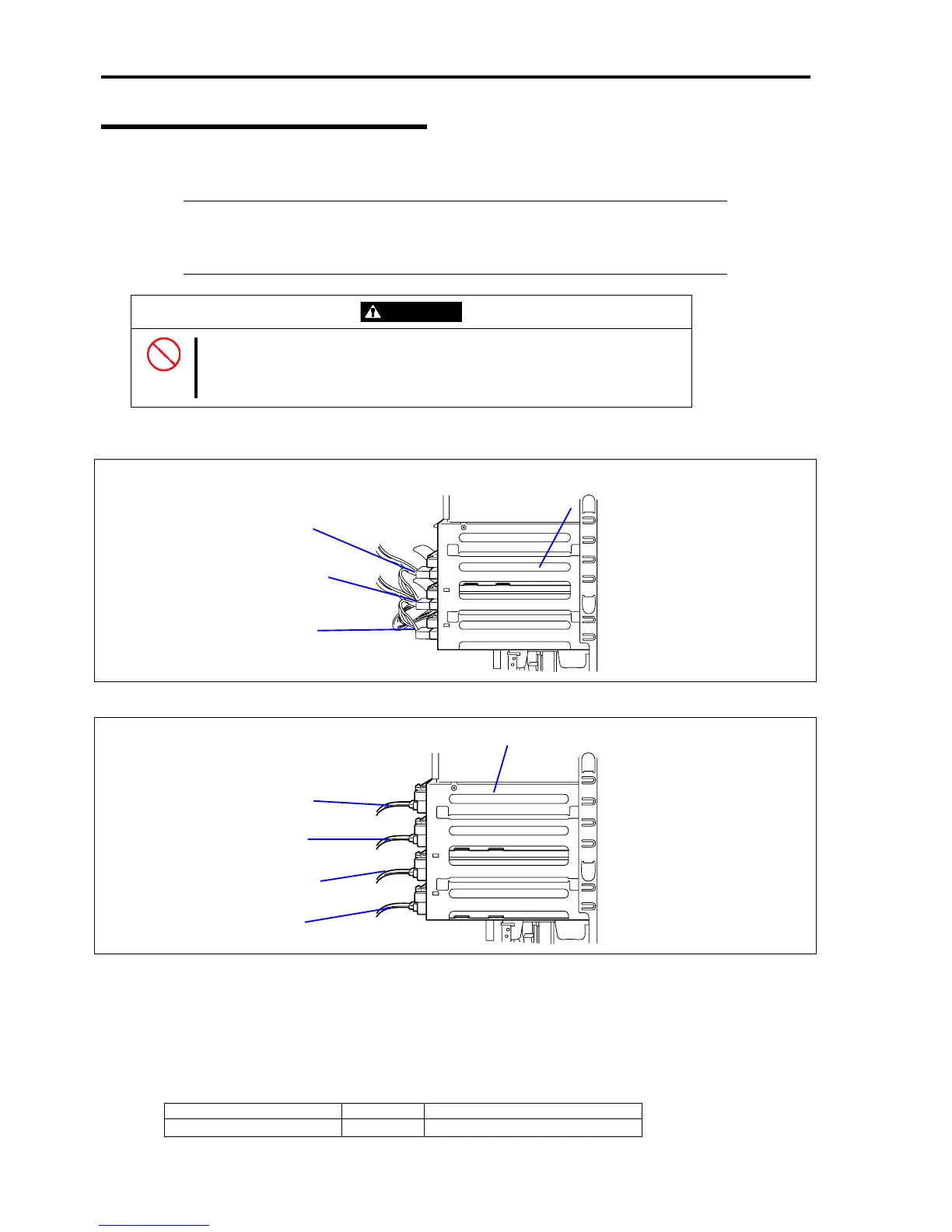

<When installing SCSI hard disk drives>
Hard disk drive bay
Hard disk drive (Third)
SCSI termination: OFF
Hard disk drive (Second)
SCSI termination: OFF
Hard disk drive (First)
SCSI termination: OFF
SCSI ID: 2
SCSI ID: 1
SCSI ID: 0
<When installing SATA hard disk drives>
Hard disk drive bay
Hard disk drive (Fourth)
Hard disk drive (Third)
Hard disk drive (Second)
Hard disk drive (First)
Installation
Follow the procedure as described below to install 3.5-inch hard disk drives.
1. Configure the operation mode of hard disk drives according to the manual supplied with the hard disk drive.
îš„ SCSI hard disk drive
*1
Hard Disk Drive SCSI ID Bay to Install
First hard disk drive
*2
ID0 Bottom
