Upgrading Your Server 9-7
Installation

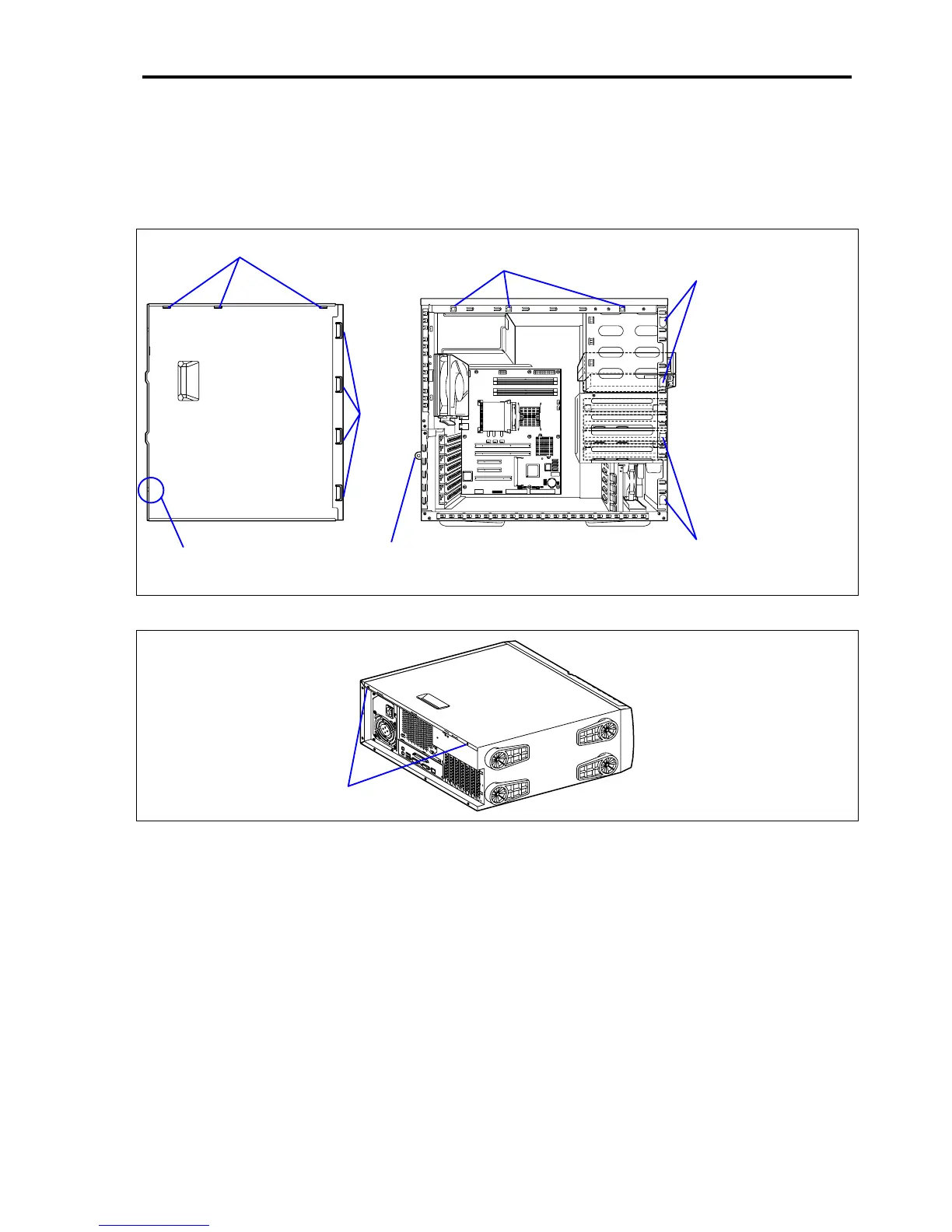

The side cover can be installed in the reverse procedure of the removal. Make sure that the hooks on the side cover are
inserted into the frame holes of the server certainly. When you install the cover by sliding the cover toward the front of
the server, also make sure that the hooks on the front side are engaged with the frame of the server. Otherwise, you will
fail to install the cover securely.
Hooks on top
Holes
Insert a lock plate here.
Hooks
on
front
side
Rear of the left side cover Frame of the server
Frame
Frame
Lock plate
Finally, install the left side cover and secure it with two screws removed in step 5 of removal procedure.
Screws
