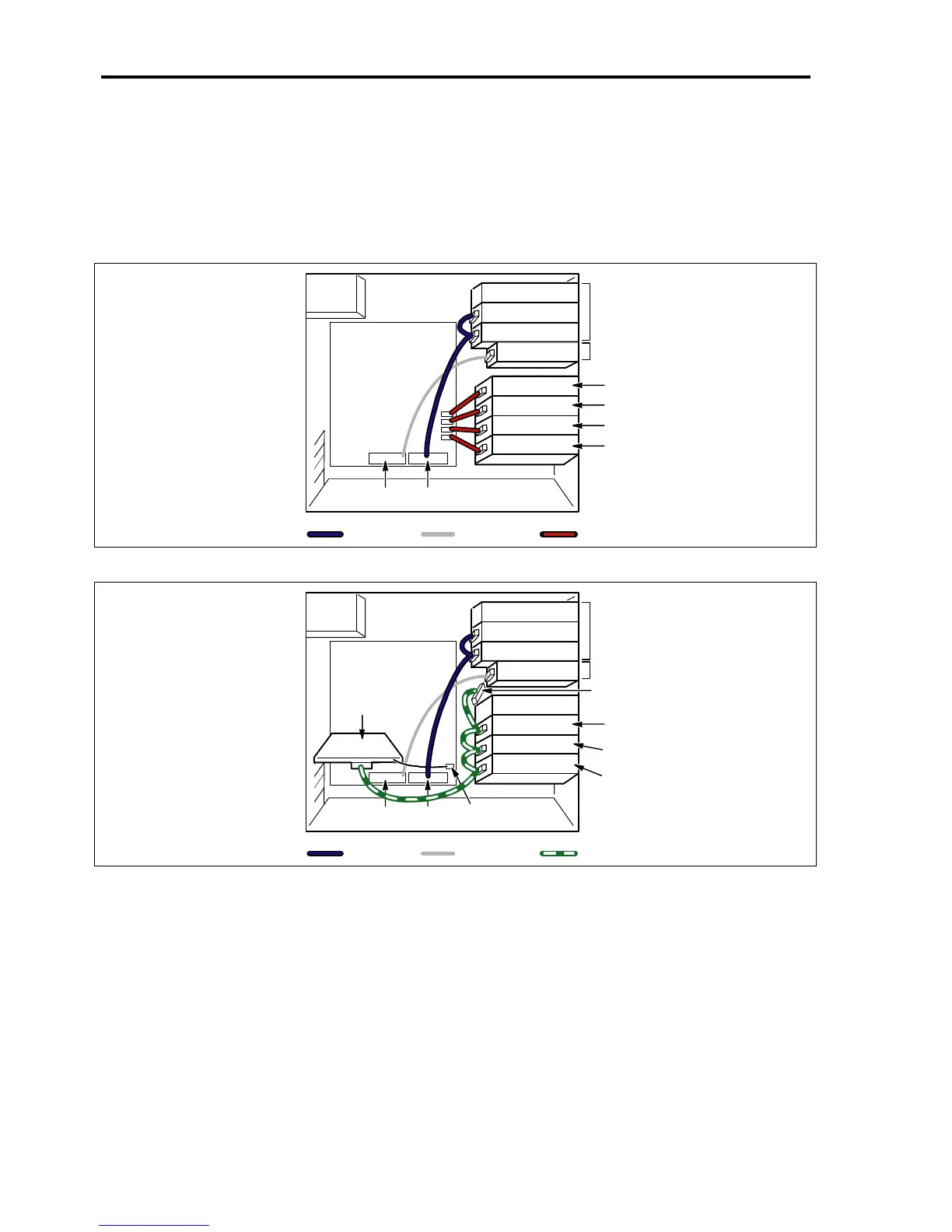

10-8 Internal Cabling Diagrams
Installation of IDE Device
Use the separately-priced IDE controller and the IDE cable for the connection.
[Standard configuration]
îš„ SATA
5.25-inch device bay
3.5-inch device bay
Fourth hard disk drive
Third hard disk drive
Second hard disk drive
First hard disk drive
CD-ROM drive
Floppy disk drive
Mother board
Floppy disk
Power
supply
drive
IDE
IDE cable FDD cable SATA cable
IDE device
îš„ SCSI
Terminato
r
5.25-inch device bay
3.5-inch device bay
Third hard disk drive
SCSI ID2
Second hard disk drive
SCSI ID1
First hard disk drive
SCSI ID0
Floppy disk drive
Mother board
Floppy disk
Power
supply
drive
IDE
IDE cable FDD cable SCSI cable
LED
connector
SCSI
controller
Unused
CD-ROM drive
IDE device
IDE cable sold separately is required for external devices.
