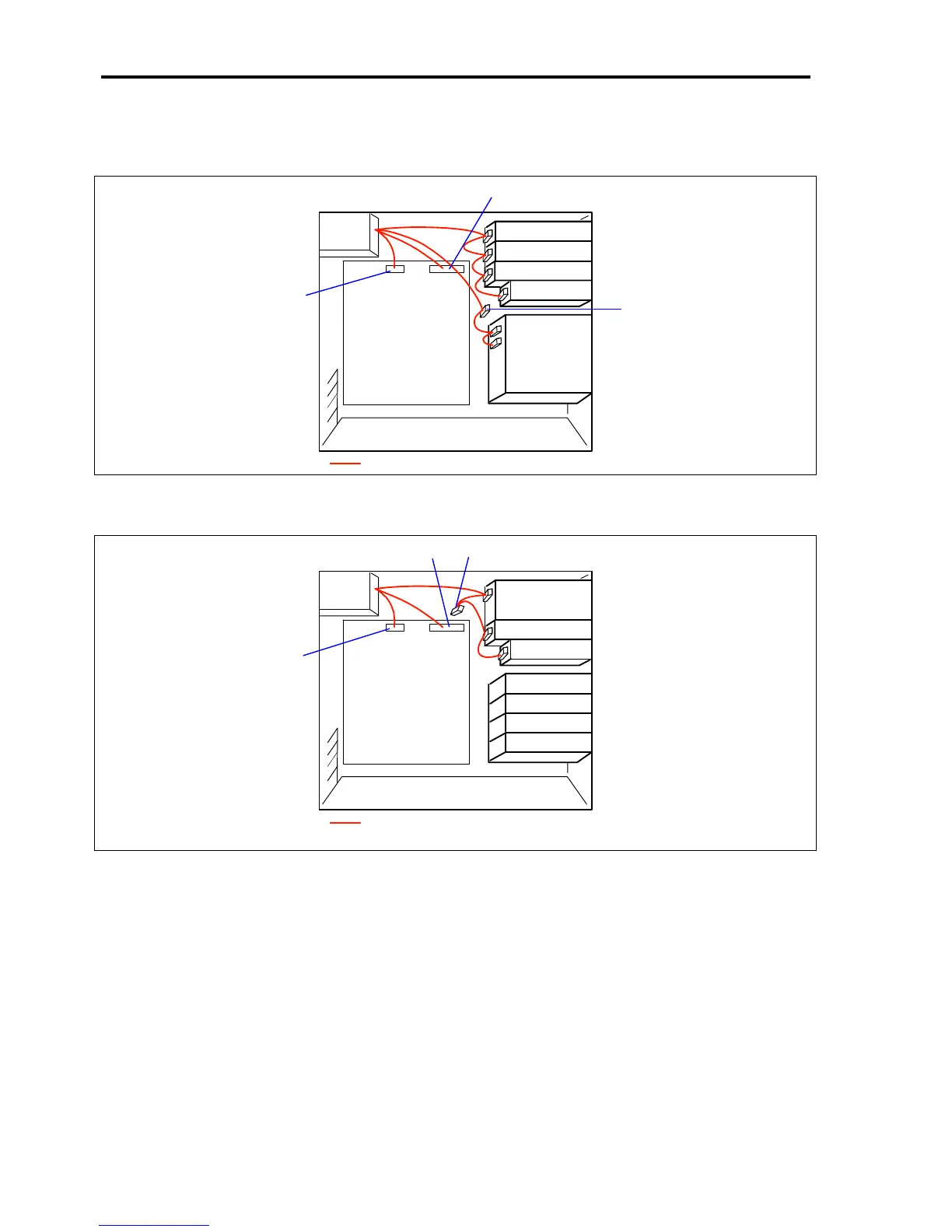

10-10 Internal Cabling Diagrams
[Additional HDD cage connected]
îš„ SATA
CD-ROM drive
Floppy disk drive
Power
supply
Mother board
Power cable
Option device
P2
P1
Option device
P3
P4
P5
P6
P8 and P9
Additional
HDD cage
P7*
* Unused connector
[Optional 5-inch file device bay installed]
îš„ SCSI
CD-ROM drive
Floppy disk drive
Mother board
Power cable
P1
P3
P5
P6
P7 to P14:
Unused
* Unused connector
Hard disk drive
installing kit
Unused
Unused
Unused
Unused
P2
P4*
