Setting Up Your Server 3-9
To connect the power cord from the server to an interruptive power supply (UPS), use the service outlets on the rear of
the UPS.
The UPS service outlets are categorized into two groups: SWITCH OUT and UN-SWITCH OUT. (They may be called
"OUTPUT1" and "OUTPUT2".)
To control power supply with an application (ESMPRO UPSController) that controls the UPS, connect the power cord
to an SWITCH OUT outlet.
For constant power supply, connect the power cord to a UN-SWITCH OUT outlet. (Connect the modem that is in
service for 24 hours to this outlet.)

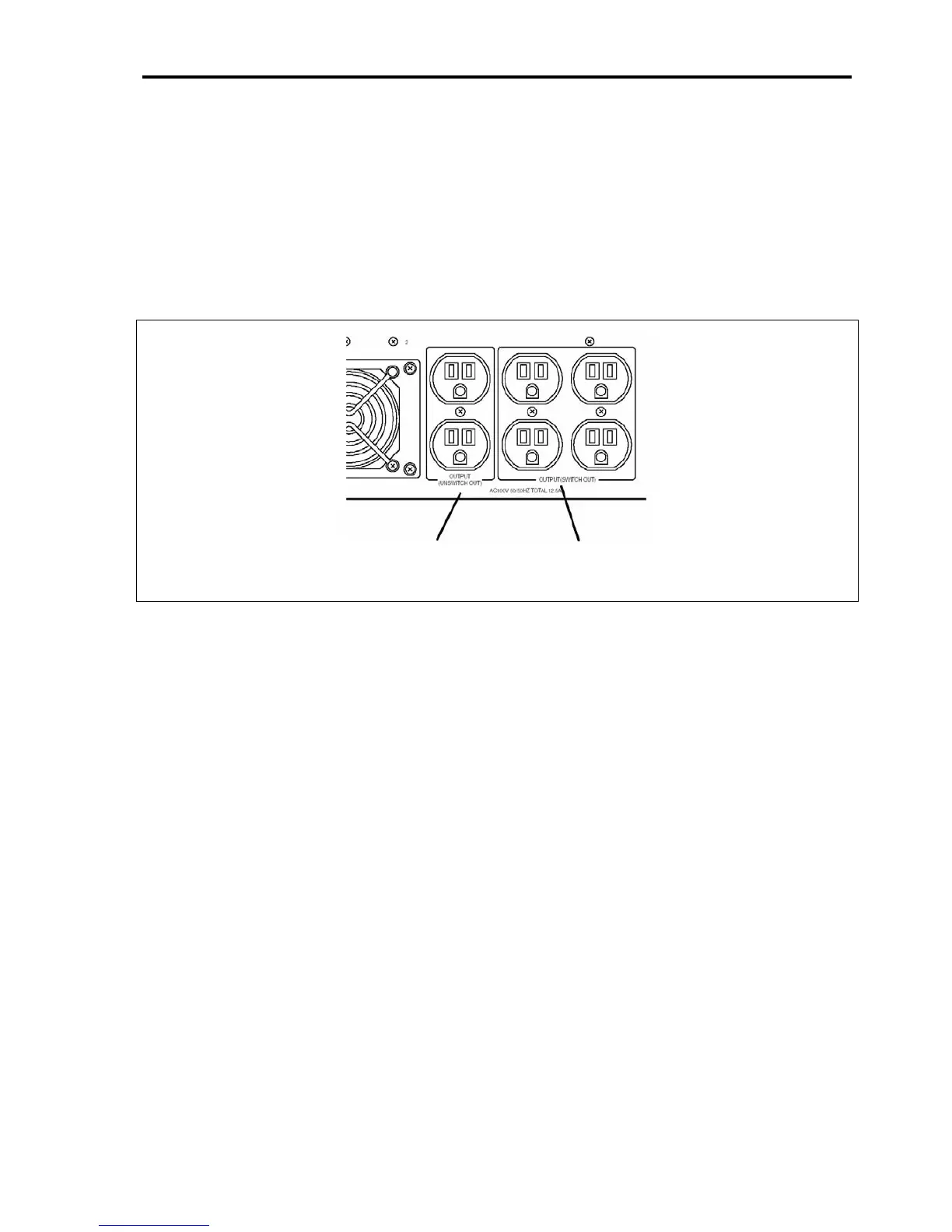

<Example>
UN-SWITCH OUT
(OUTPUT 2)
SWITCH OUT
(OUTPUT 1)
When using a power cord from the server to the UPS, change the BIOS setup utility of the server to link with power
supply from the UPS.
Change a parameter for "AC-LINK" of the Advanced menu of the BIOS setup utility. See Chapter 4 for details.
