General Device Settings and Actions M6100 Broadcast Satellite Modulator
We want that the "Eth. Mgmt Itf Link Failure" alarm triggers a General Interface Alarm.
(The reason could be that this alarm must trigger a switchover to a redundant device).
Note that a "Mgmt Itf Failure" by default does not trigger the alarm switches. To change this behavior
you have to assign the "Mgmt Itf Failure" alarm to a General Interface or General Device alarm.
(Whether to choose the General Interface or General Device alarm depends on the configuration of
the USS (Universal Redundancy Switch).

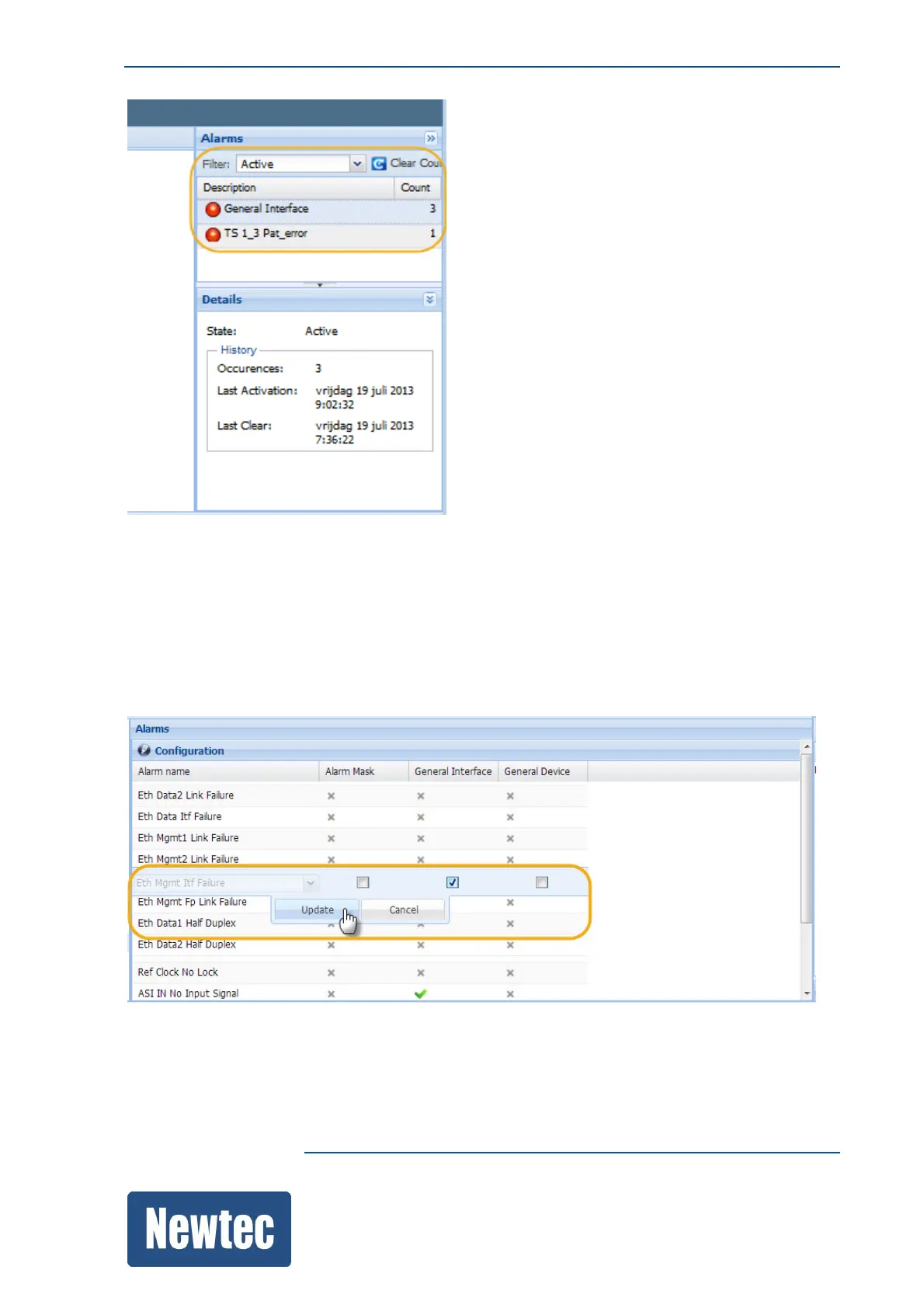

The following figure shows the configuration of the "Eth Mgmt Itf Failure" alarm.
The next time when the Eth Mgmt Itf Failure alarm is present, a General Interface alarm is triggered.
The following figure shows the alarms pane.
