How to Manage the Device M6100 Broadcast Satellite Modulator
9.5.7 Detailed View of a Functional Block
Click on the enlarge button in the top right corner of a functional block to view more parameters for
the functional block.

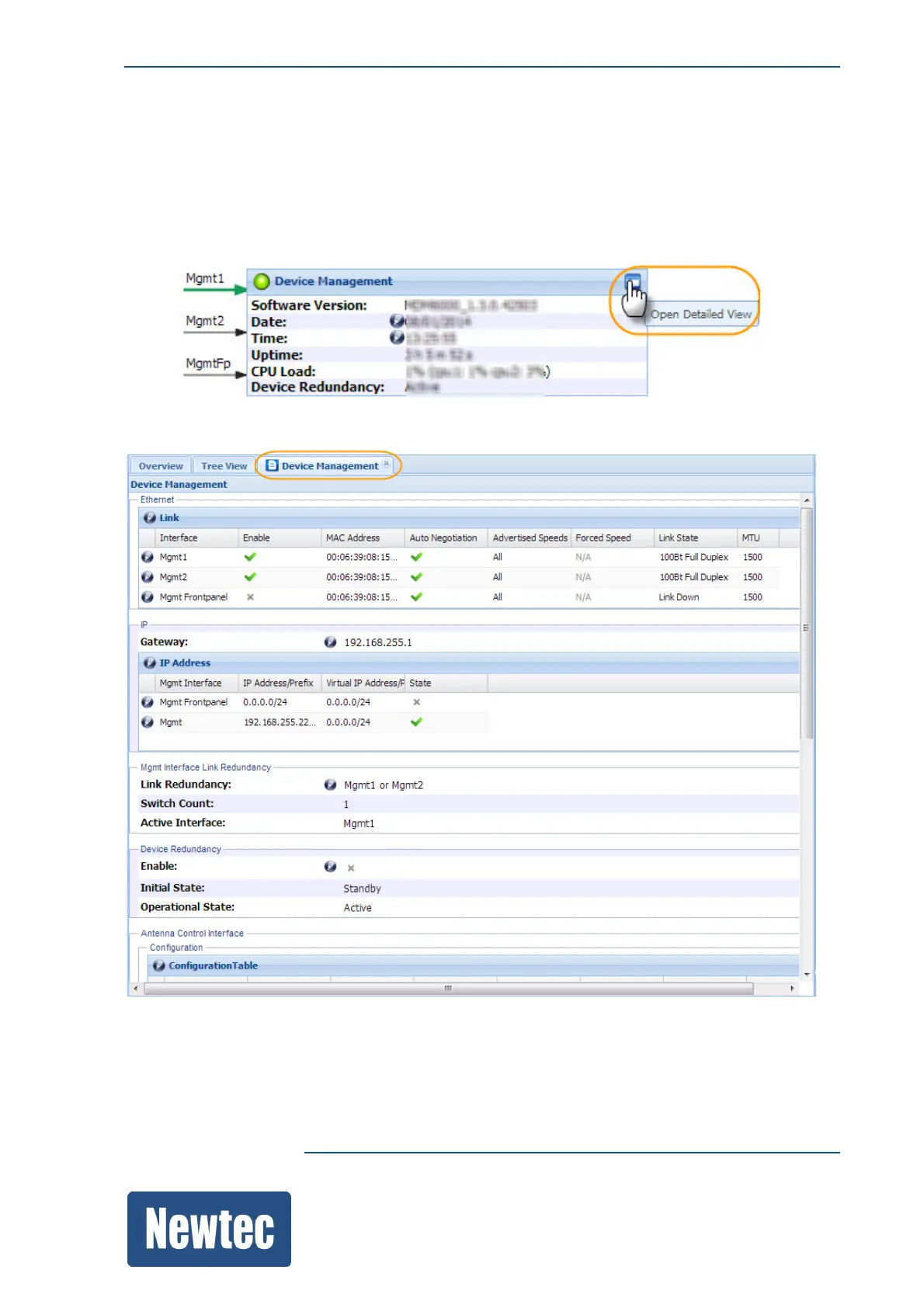

Refer to the following figure:
