How to Manage the Device M6100 Broadcast Satellite Modulator

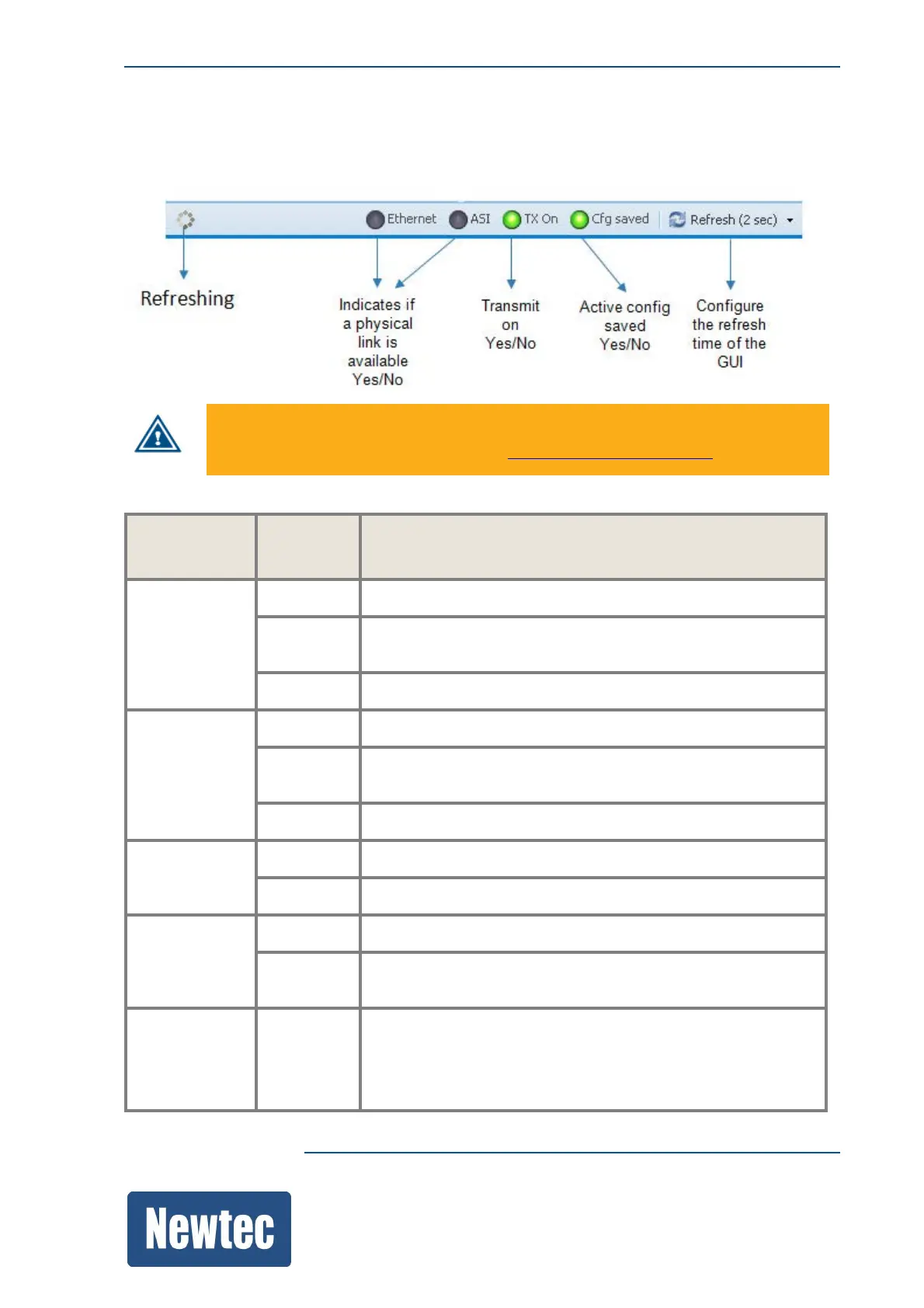

9.5.10 Status Bar
The status bar informs on the following:
Cfg saved is red when the active configuration is modified but not saved.
To save the configuration, refer to section: SaveaConfigurationonpage84.
The following table describes the available LEDs.
LED LED
Color
Description
Ethernet
(All interfaces
are
monitored)
Green The incoming data signal is valid.
Red Indicates an interface alarm. Please check the alarm pane to
get more details.
Off The incoming data signal is not valid.
ASI Green The incoming or outgoing data signal is valid.
Red The incoming / outgoing data is configured but there is no
activity monitored during the last second.
Off The incoming signal is not valid.
Tx On Green The device is transmitting.
Off The transmission is disabled.
Cfg saved
Green Indicates that the active configuration is saved.
Red Indicates that the active configuration is modified but not
saved.
Refresh
Select the drop-down menu to define the GUI Refresh Time.
When working over a slow/long-delay link (like a satellite link)
slowing down this refresh time could be useful to improve the
responsiveness of the GUI.
