Use Case: TS over IP Constant Bit Rate M6100 Broadcast Satellite Modulator
13 Use Case: TS over IP Constant Bit Rate
In this use case, the modulator is connected to a video encoding system that generates a TS over
IP. To combat RFI we want to insert a Network ID into the TS. This TS is modulated in DVBS -2
QPSK and transmitted over satellite to set-top boxes in a DTH (Direct-To-Home) network.

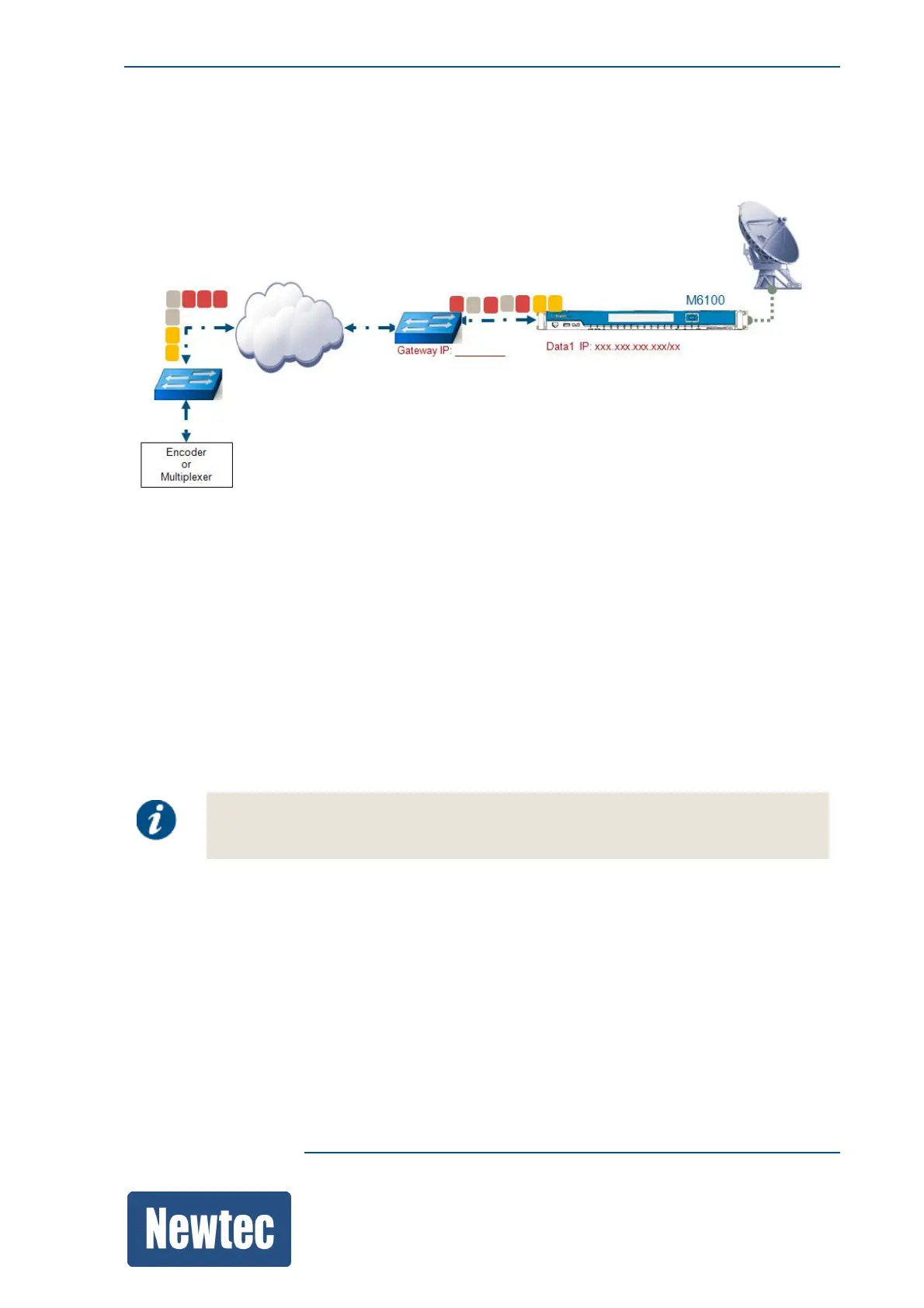

The previous figure is an example of such a setup.
The main settings of the video encoding baseband system are:
• Traffic Profile = CBR;
• TS Encapsulation Protocol = UDP;
• TS Bit Rate = 13.5Mbps;
• RTP FEC;
• Destination IP Address.
In this use case, we presume that the management interface configuration is already
done. The user is able to manage the device using the GUI.
