Data Interfaces M6100 Broadcast Satellite Modulator
11.8 BBF over IP In
This block takes care of Baseband Frames (BBFs) received on the data Ethernet port(s) of the
modem.
It is used when an external encapsulator (like AZ810) is used.
Navigate to the following location:
M6100 >> BBF over IP
• Enable: reception of BBFs on this data input interface;
• Input Selection: Select on what physical interface to take in the data.
– Data1;
– Data2;
– Data Bond (this is the bond interface, both physical interfaces and link redundancy must be
activated).
• Reset monitoring counters.

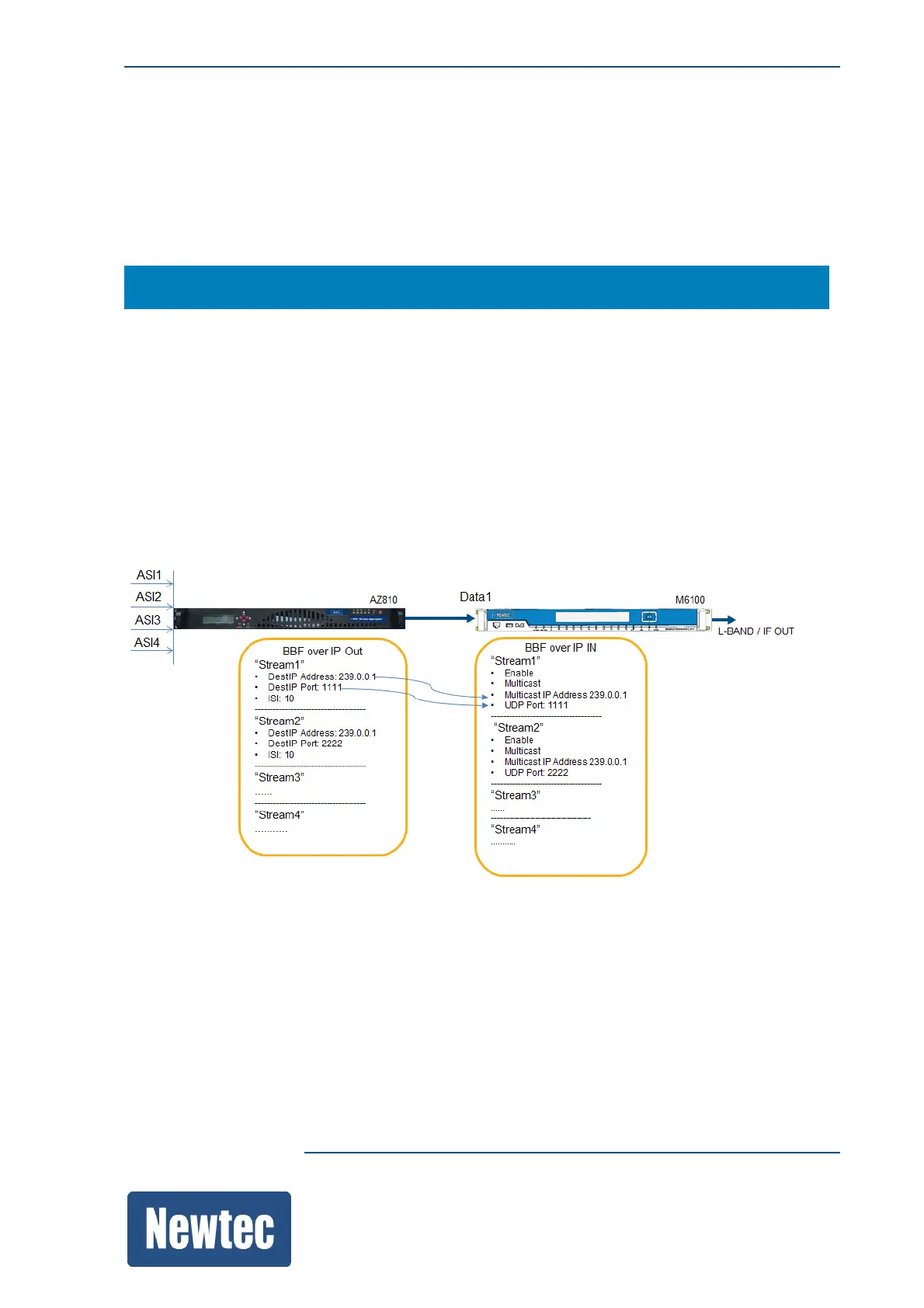

The following figure shows an example of a setup between the AZ810 and the M6100.
