Data Interfaces M6100 Broadcast Satellite Modulator
11.7.4.1 Traffic Classification
The purpose of traffic classification is to identify flows/streams of traffic that need a different
treatment.
Traffic classification is based on the destination Network Address, via classification expressions or a
combination of both.
Once the traffic is classified into a traffic node, this traffic is forwarded towards the traffic shaper.

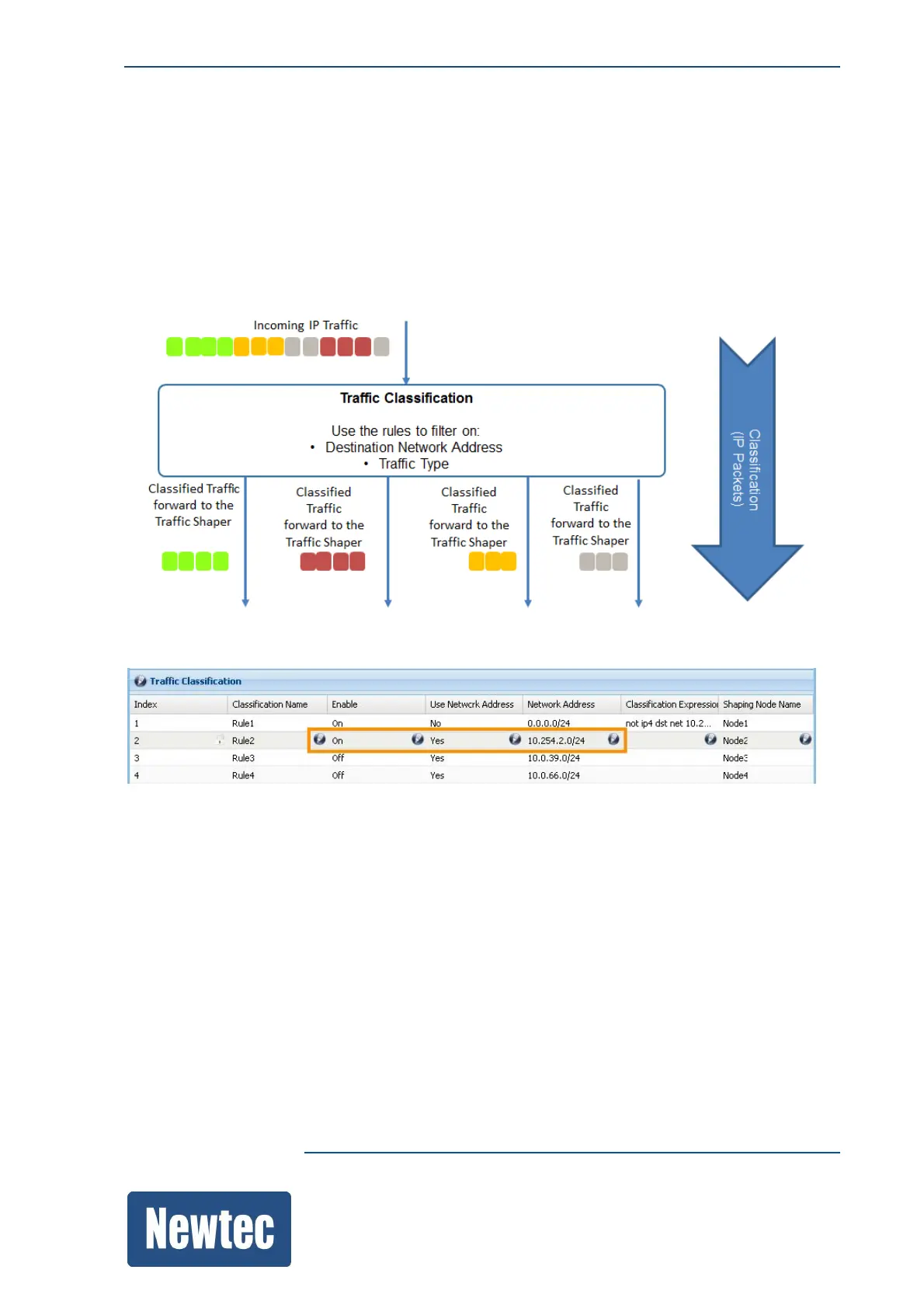

The following figure illustrates how the incoming traffic is classified.
The traffic classification is listed under.
