Physical Description M6100 Broadcast Satellite Modulator
7.2 Back Panel Description

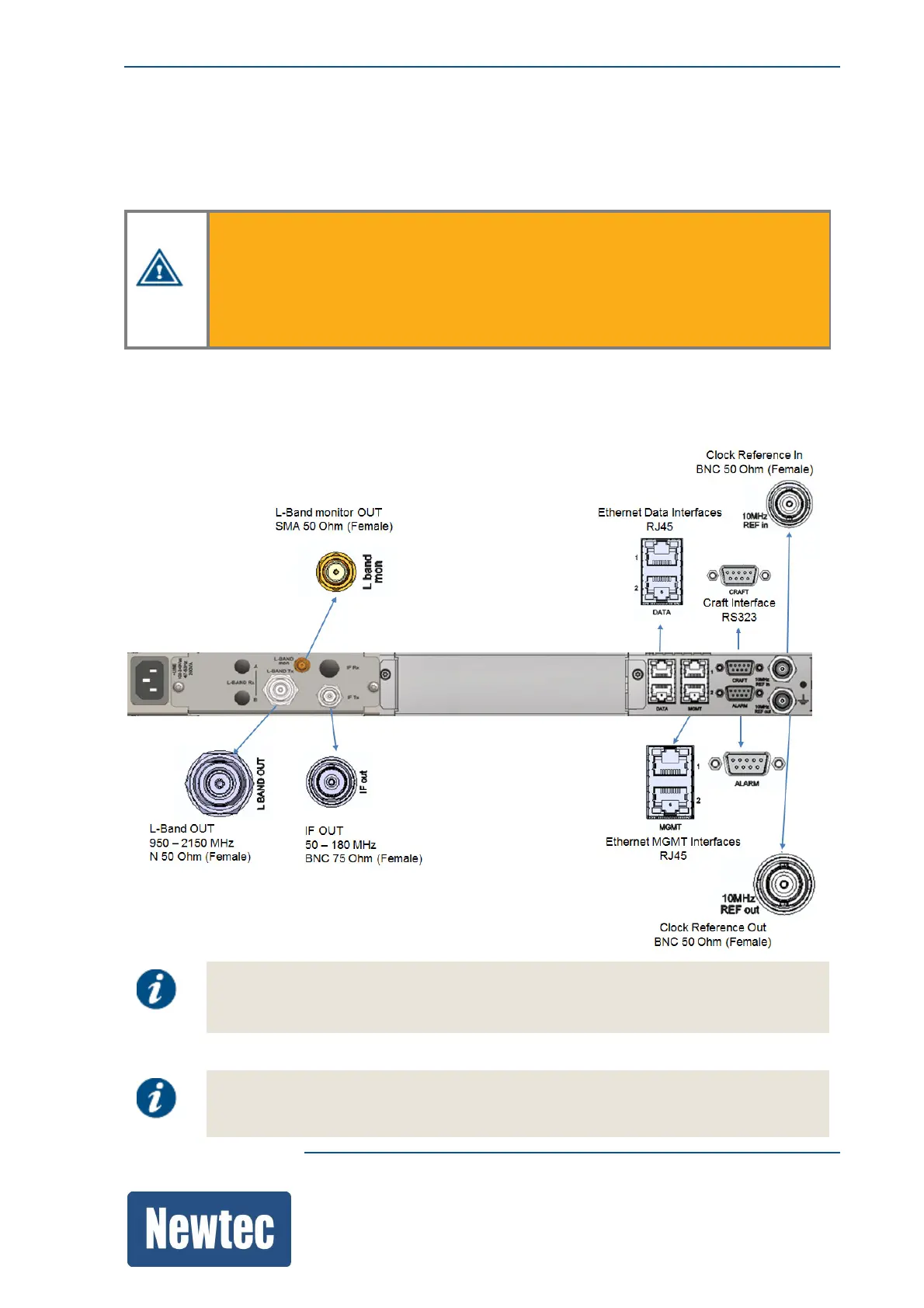

The following figure shows the possible connections on the M6100. The back panel connections
available depend on the specific hardware configuration of your device.
The maximum force that may be used to fix the SMA (L-Band monitor OUT)
connector is restricted to 1.2Nm!
The maximum force for the other connectors is restricted to 1Nm!
When one of these limits is exceeded, the connectors can be damaged and the
correct functioning of the connectors cannot be guaranteed.
Three major back panel configurations are available.
Default Hardware Configuration (Ordering number CH-01)
This configuration is used to perform TS over IP.
The license key VI-01 needs to be activated to enable TS over IP input interfaces.
The 10MHz REF out is optional and is selected during ordering. (Ordering number is
RO-01.)
