Newtec M6100 - Page 28

Newtec Proprietary
Confidentiality: Unrestricted
V1.4
20/225
Physical Description M6100 Broadcast Satellite Modulator

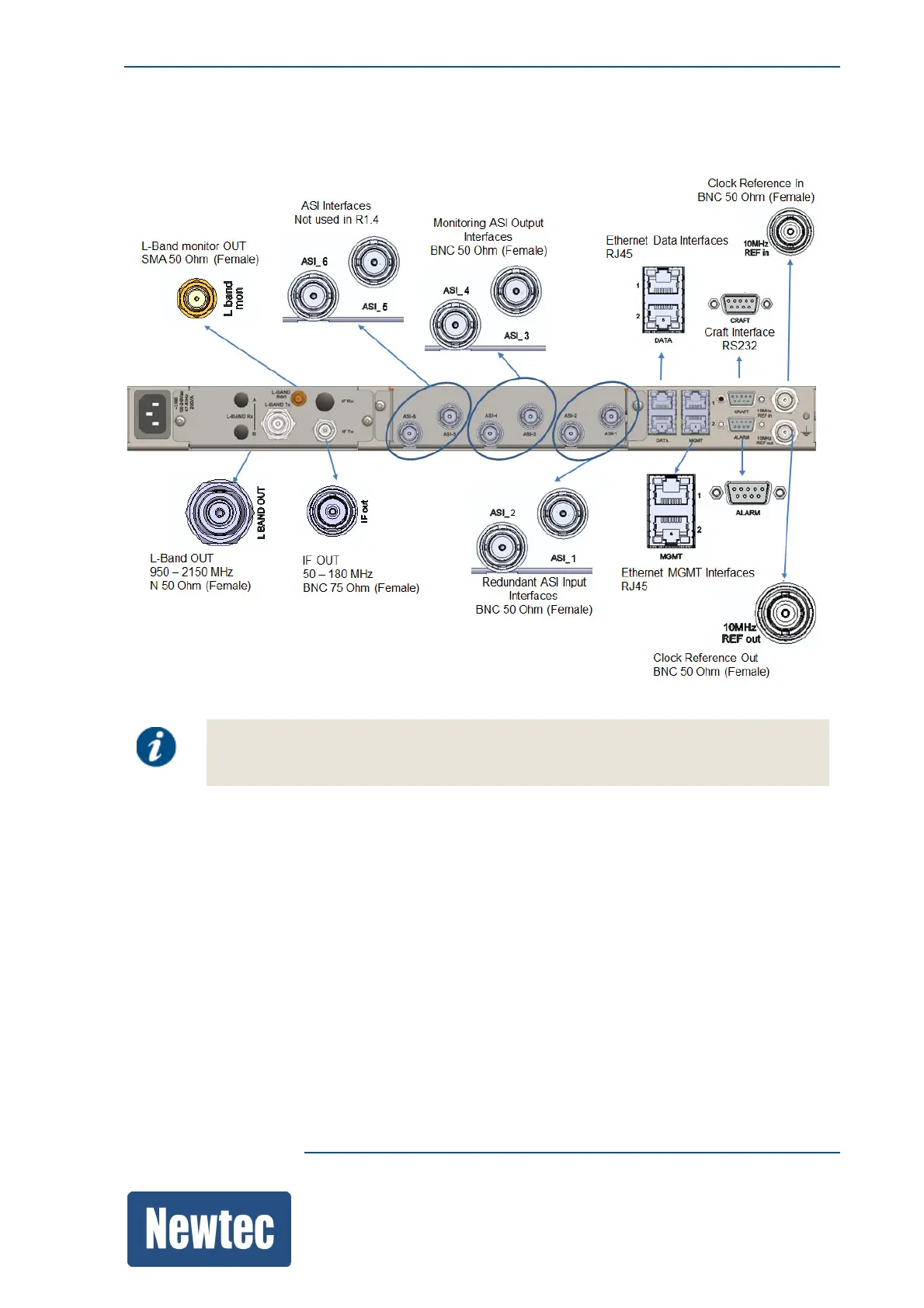

Hardware configuration option with ASI inputs and outputs (Ordering number CH-01 and
AS-02)
The 10MHz REF out is optional and is selected during ordering. (Ordering number is
RO-01.)
