How to Manage the Device M6100 Broadcast Satellite Modulator
9.6.2 Front Panel Buttons Description

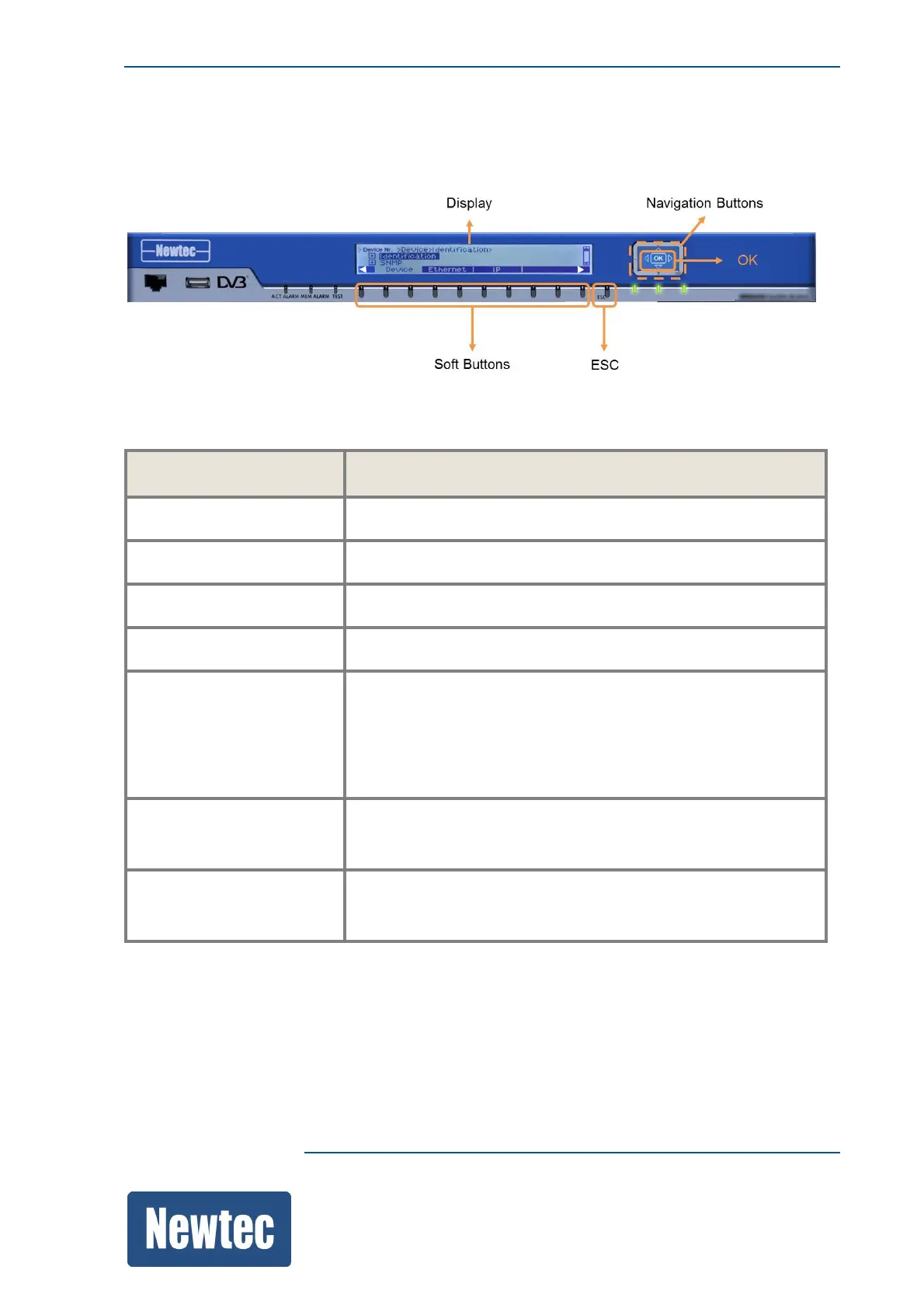

The following figure displays the different control buttons of the front panel.
The following table describes the buttons displayed in the previous figure.
Name/Symbol Description
Arrow UP Navigate to the upper item.
Arrow DOWN Navigate to the lower item.
Arrow LEFT Fold an expanded branch or a leaf sub item.
Arrow RIGHT Unfold a collapsed branch.
OK Depending on the position it has the following function:
• Branch: Expand;
• Leaf: Open a parameter;
• Confirm a new value.
ESC • Fold an expanded branch;
• Discard a new value.
Soft Buttons • Navigate through the root menu (arrows);
• Select a main branch from the root menu.
