V1.4
116/225
Data Interfaces M6100 Broadcast Satellite Modulator

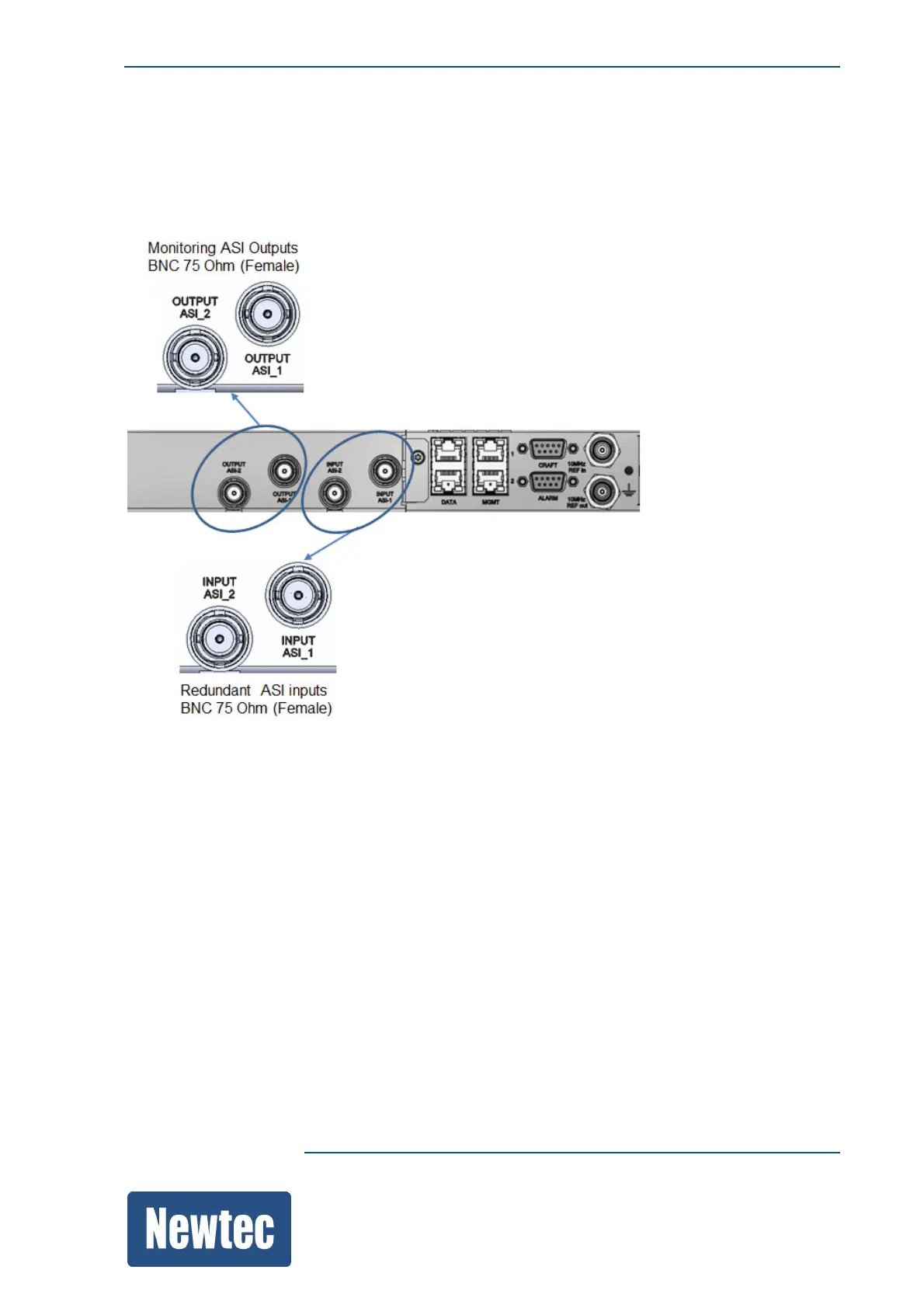

Depending on the hardware version of the device the back panel has four or six ASI interfaces
available.
This is also reflected in the output selection parameters. The following sections shows the behavior
in case of a back panel with four ASI and six ASI interfaces.
Four ASI interfaces available on the back panel (hardware before R1.4)
The following figures show different possibilities of output selection and to which output interface the
signal is forwarded. (see next page)
