Data Interfaces M6100 Broadcast Satellite Modulator

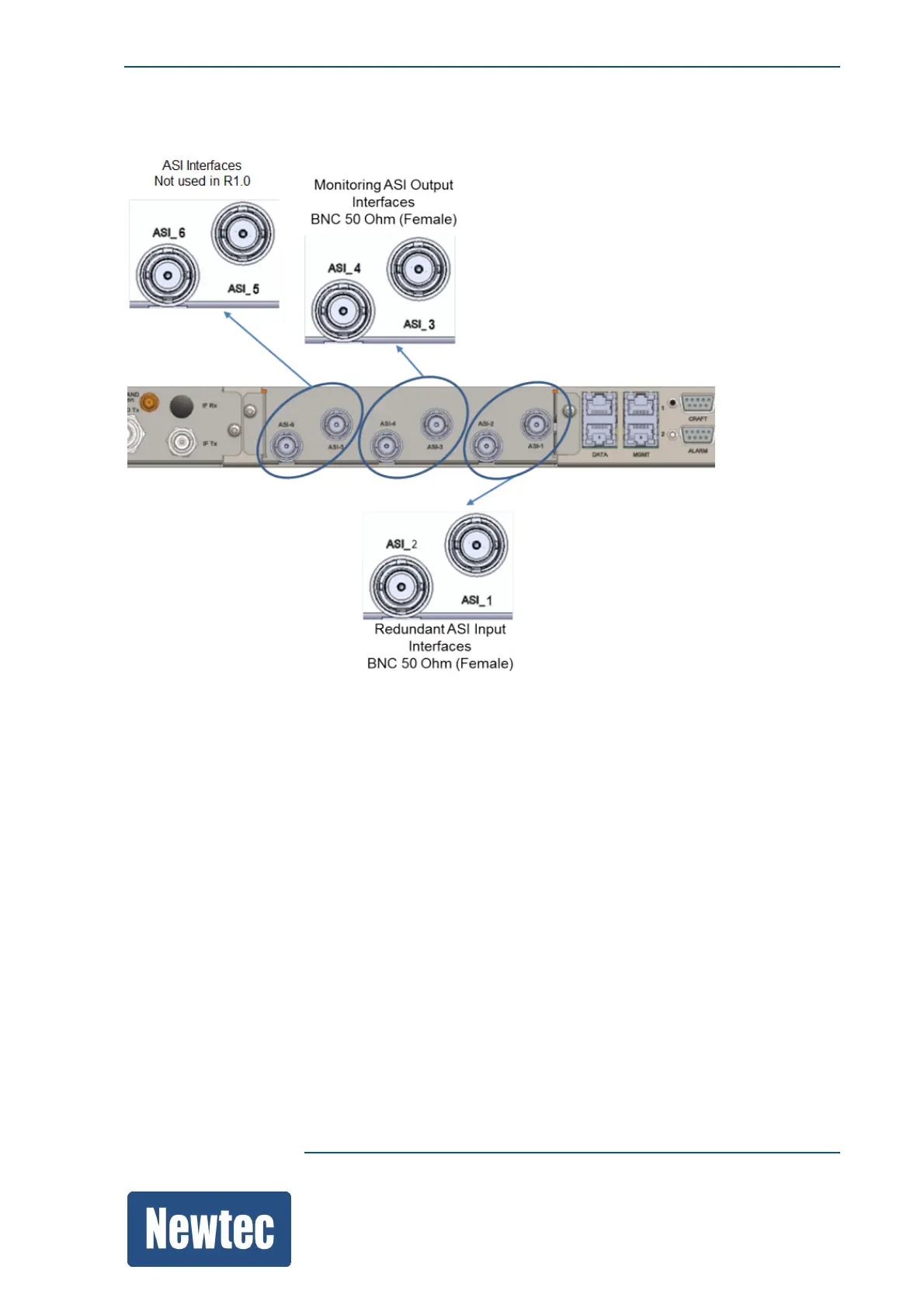

Six ASI interfaces available on the back panel (from R1.4 onwards)
The following figures show different possibilities of output selection and to which output interface the
signal is forwarded. (see next page)
