Data Interfaces M6100 Broadcast Satellite Modulator

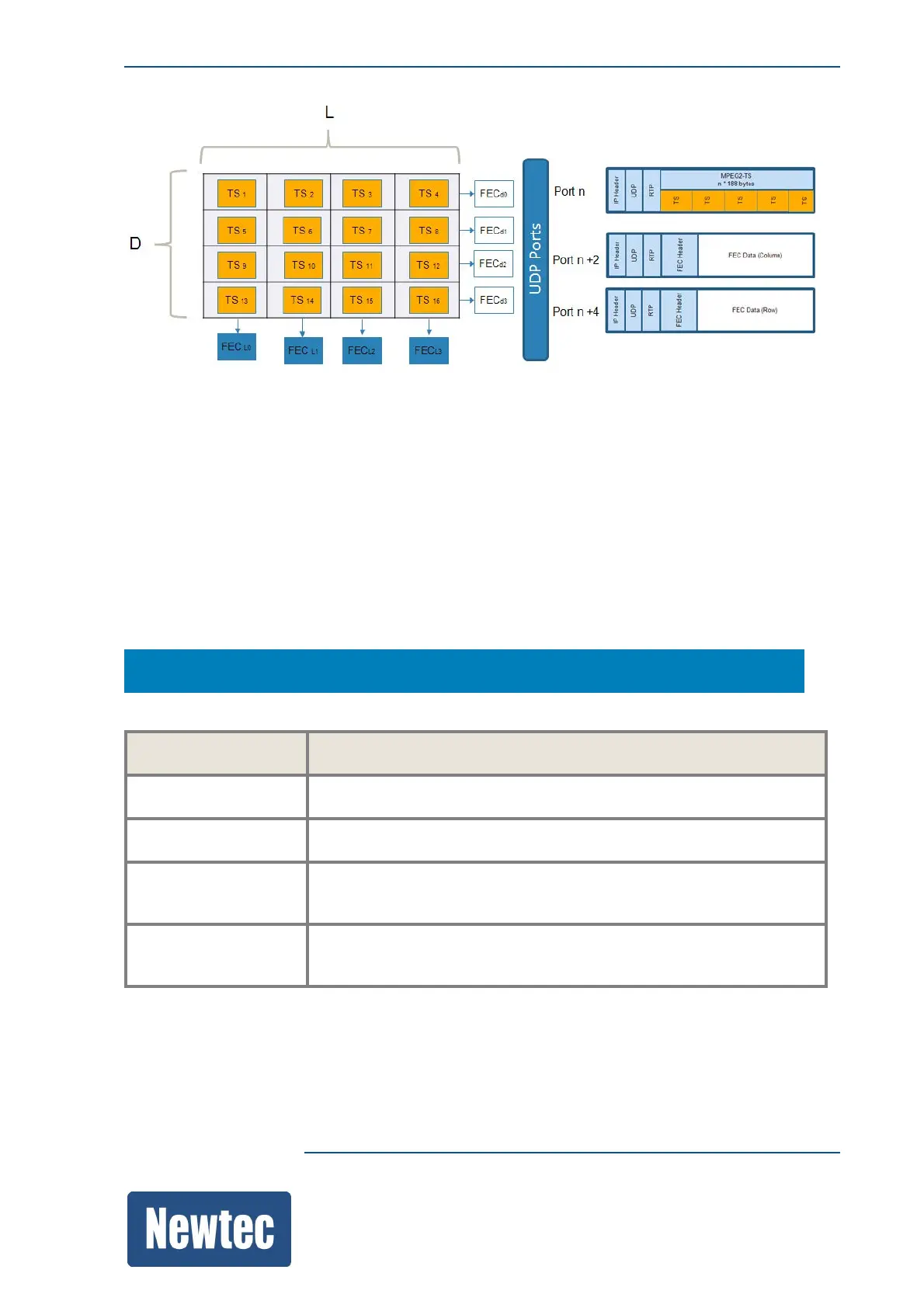

The M6100 Broadcast Satellite Modulator has all hardware on board to support L(column) and D
(Row FEC) up to 20 where L*D<=100.
The M6100 Broadcast Satellite Modulator is able to detect the FEC packets automatically. These
FEC packets are used to reconstruct the original transmitted transport stream.
The M6100 Broadcast Satellite Modulator corrects the errors but also removes the FEC overhead
prior to transmission.
The error count and number of corrected errors are reported, the operator can use this information to
monitor the link quality between video head-end and modulator.
These monitoring parameters can be located under.
M6100 Boadcast Satellite Modulator>TS over IP >> Monitor
Parameter Description
RTP FEC Scheme Displays the currently used RTP-FEC Scheme.
RTP In Count Displays the number of received RTP packets.
RTP Column FEC In
Count
Displays the number of received RTP column FEC packets.
RTP C Row FEC In
Count
Displays the number of received RTP row FEC packets.
