Wireway Removal
1-, 2-, 3-Cell Color Touch Installation and Service Guide/67-2014 Rev G © 2011 Omnicell, Inc.
Pharmacy cabinets PC box screws are accessed by opening the keyboard door and using the
T15 Torx driver. [6-32x1/4 BH screws]

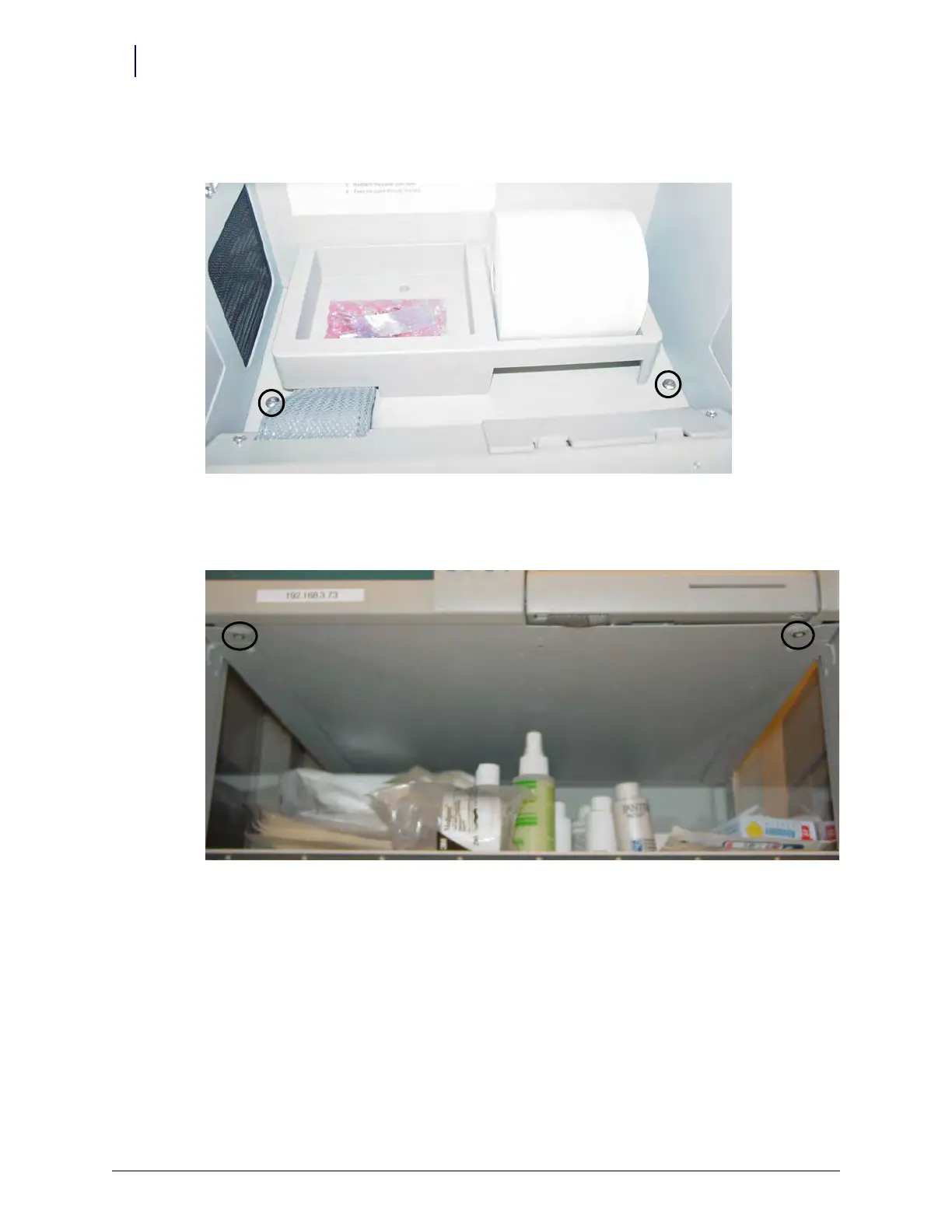

Figure 2-1. Pharmacy cabinet
Supply cabinets PC box screws are accessed under the box at the front corners, using a T-10
Tor x dr iver. [8-32x3/8 SHC screws]
Figure 2-2. Supply cabinet
a. Slowly pull the CT PC Box from the frame until the side-mounted slides lock and stop.
