2-12 Frames and Wireways
Wireway Removal
1-, 2-, 3-Cell Color Touch Installation and Service Guide/67-2014 Rev G © 2011 Omnicell, Inc.
8. Remove the two screws that secure the second bayonet to the frame.

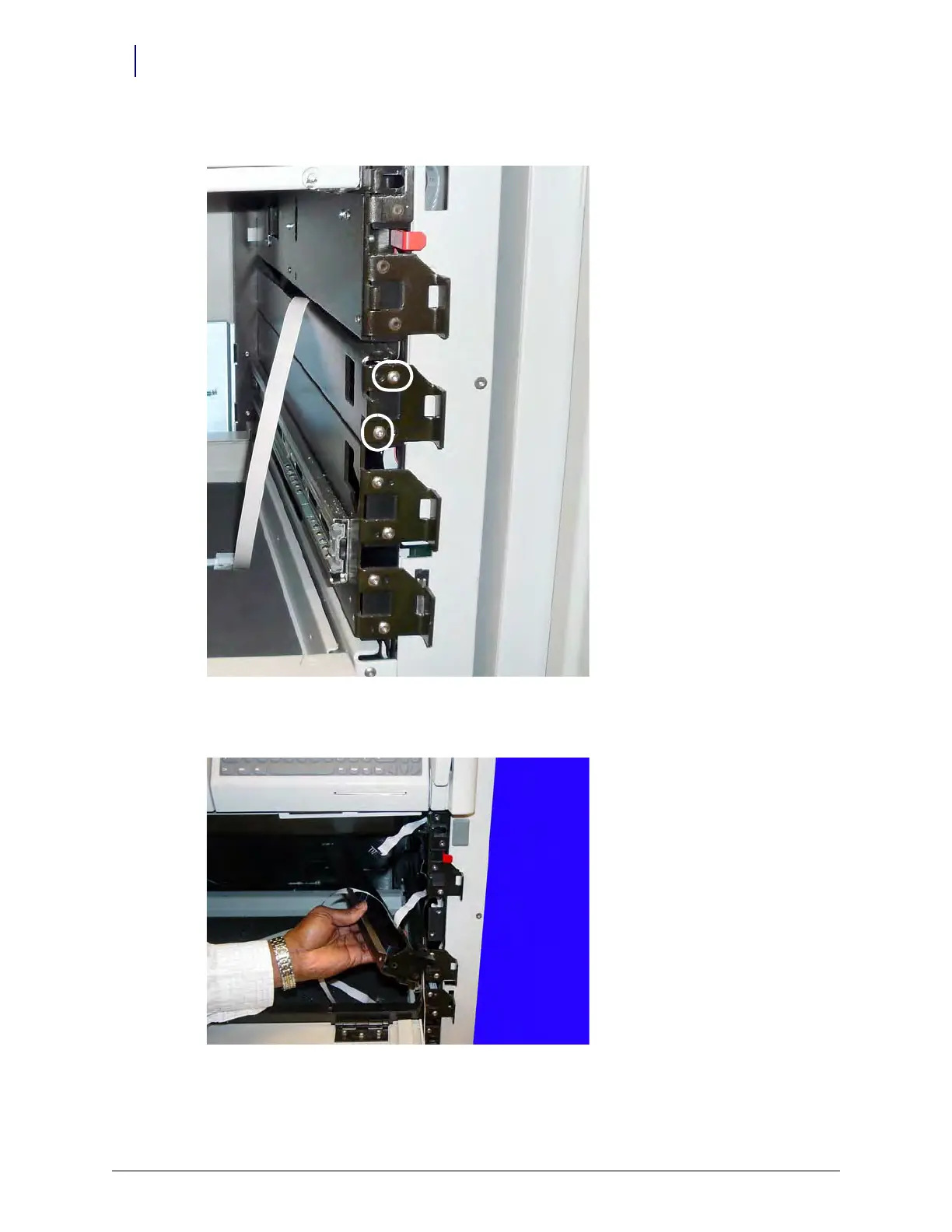

Figure 2-20. Remove the two screws securing the second bayonet from the top to the frame
9. Remove the second bayonet from the frame and disconnect the ribbon cable.
Figure 2-21. Remove the second bayonet and disconnect the ribbon cable
