© 2011 Omnicell, Inc. 1-, 2-, 3-Cell Color Touch Installation and Service Guide/67-2014 Rev G
Drawer Connect Board 8-5
Removal Procedure
11. Remove the eight screws securing the drawer connect board to the wall using the 1/16” Allen
wrench.

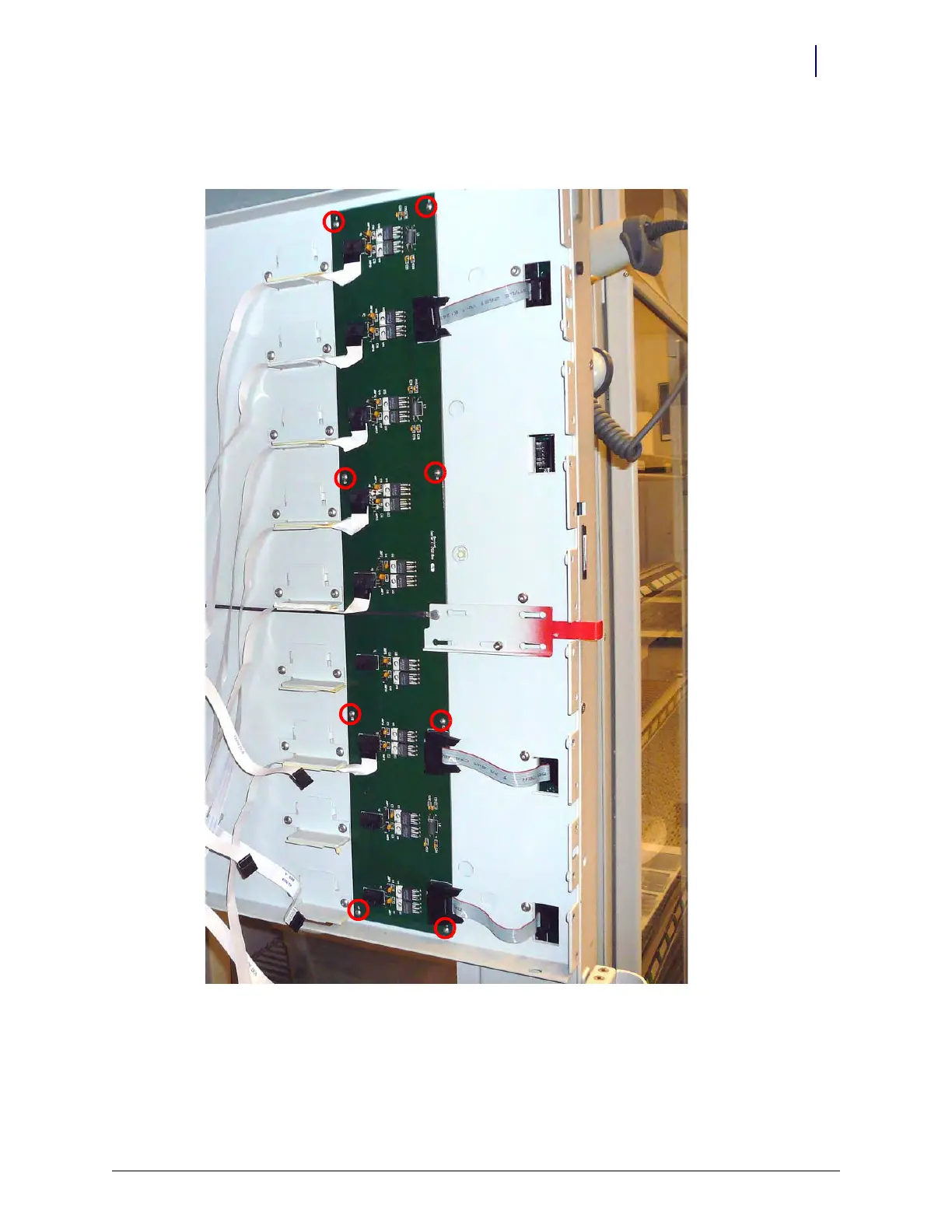

Figure 8-8. Remove the Screws Securing the Drawer Connect Board to the Wall
12. Remove the drawer connect board.
