Section 5 Object Operations 5-1 Creating Functional Objects
NS-Designer Operation Manual NS-Designer Operation Manual NS-Designer Operation Manual

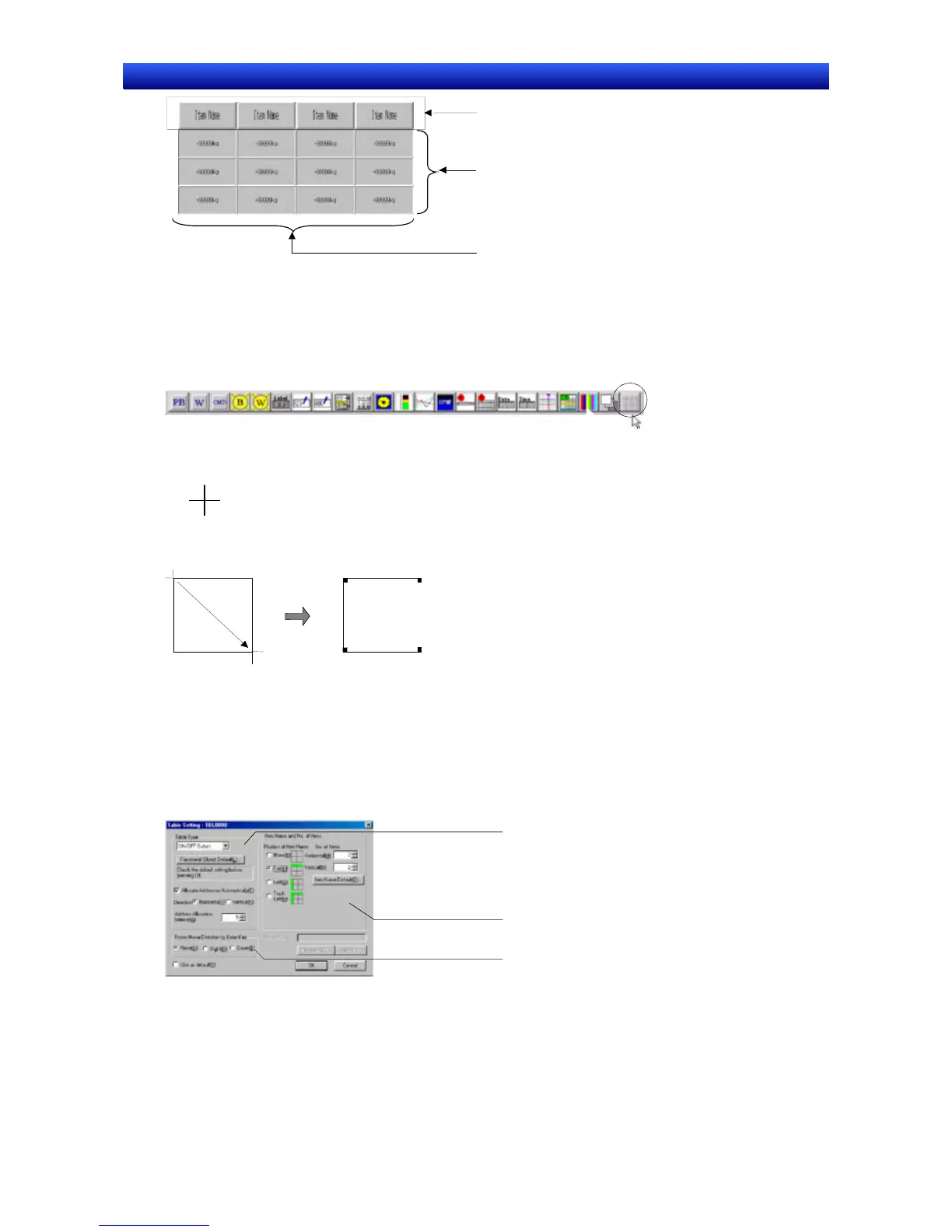

Item names
Rows (horizontal)
Columns (vertical)
Placing Tables on Screens
1. Either select Functional objects - Table or click the Table Button on the toolbar.
Toolbar
The cursor will change to the following shape:
2. Move the cursor to the position that will be the starting point for the functional object.
3. Drag the cursor to the end point for the table display region.
Drag
Setting Table Properties
Settings, such as the number of lines and columns in a table and the functional objects to be created, are
made in the Property Settings Dialog Box for the table.
To display the Property Settings Dialog Box, select the table and select Settings – Object Properties,
or right-click and select the Table properties from the pop-up menu.
The Table Setting Dialog Box will be displayed.
1
2
3
5-4

Omron NS Specifications

General

Power Supply	24 VDC
Display Size	5.7 to 12.1 inches (depending on the model)
Resolution	320 x 240 to 800 x 600
Touchscreen Type	Resistive
Display Type	TFT LCD
Communication Interfaces	RS-232C, RS-422/485, Ethernet, USB
Memory	Flash memory
Operating Temperature	0 to 50°C (depending on the model)
Storage Temperature	-20°C to 60°C
Protection Rating	IP65 (front panel)
Dimensions	Varies depending on the model
Weight	Varies depending on the model
CPU	Proprietary Omron CPU (performance varies depending on the model)
