Section 5 Object Operations 5-12 Cross-referencing Addresses
NS-Designer Operation Manual NS-Designer Operation Manual NS-Designer Operation Manual
Reference
♦ The shortcut keys for displaying address cross references are the Ctrl + R Keys.
♦ If Screen is selected for the range, addresses set using the following menu items cannot be dis-
played.
Settings - Flicker Setting
Settings - Alarm/Event Setting
Settings - Data Log Setting
Settings - Data Block Setting
Settings - System Setting
Settings - Project Properties - Macro
Settings - Screen Properties - Macro
R
R
e
e
f
f
e
e
r
r
e
e
n
n
c
c
e
e
Replacing Addresses
After searches have been executed, addresses allocated to functional objects can be replaced in one
operation.
1. Click the Replace Button.
2. The Replace Dialog Box will be displayed. Refer to Replace in 5-4 Editing for detailed settings.
Reference
♦ When replacing an address set as a flicker or alarm/event setting, or as a data block interlock ad-
dress, include the relay number in the specified address. Replacement will not be performed prop-
erly if the relay number is not specified.
R
R
e
e
f
f
e
e
r
r
e
e
n
n
c
c
e
e
Saving Search Results to File
Saves the list of search results to a CSV file.
1. Click the Save to File Button.

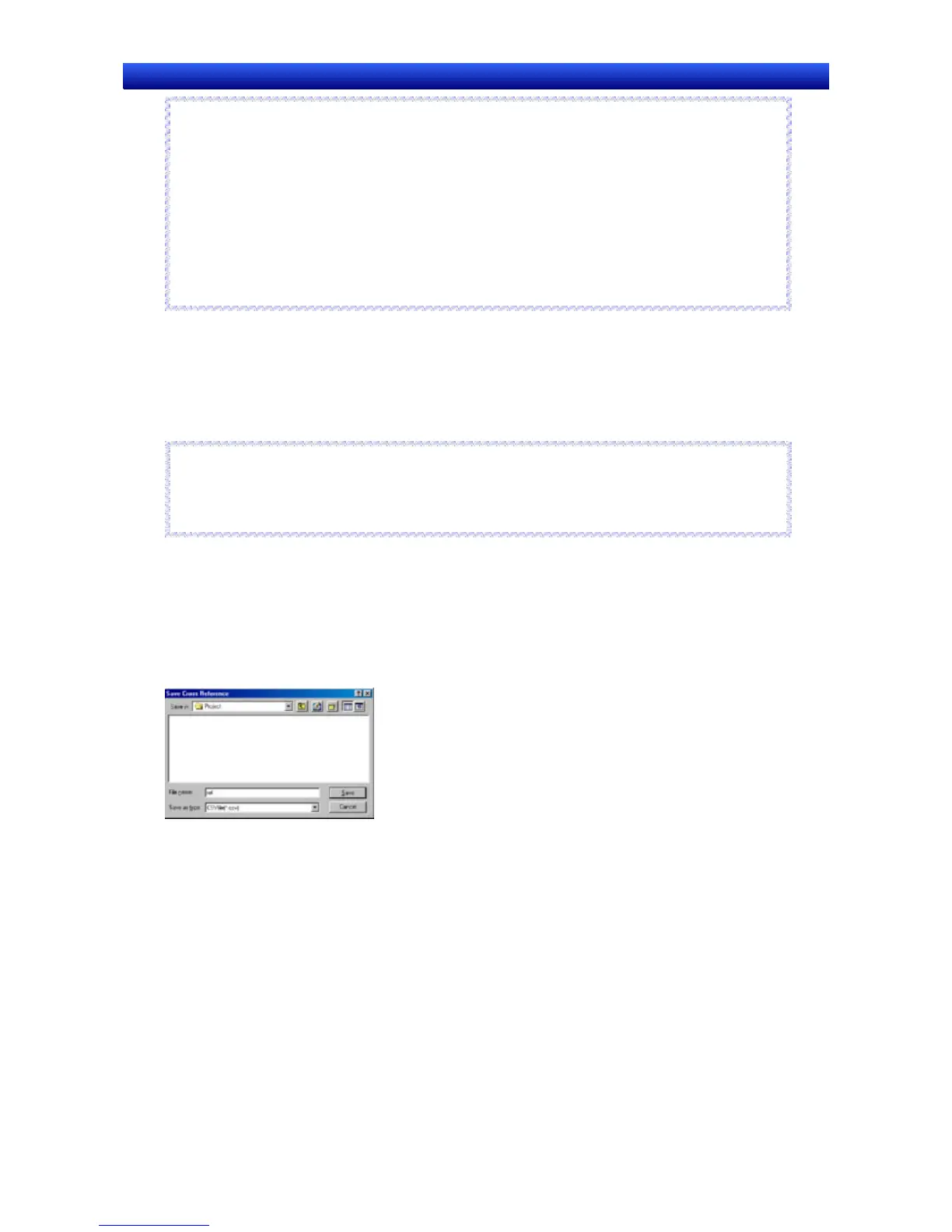

2. The Save Cross Reference Dialog Box will be displayed. Specify the directory and file name for the
save operation.
5-60

Omron NS Specifications

General

Power Supply	24 VDC
Display Size	5.7 to 12.1 inches (depending on the model)
Resolution	320 x 240 to 800 x 600
Touchscreen Type	Resistive
Display Type	TFT LCD
Communication Interfaces	RS-232C, RS-422/485, Ethernet, USB
Memory	Flash memory
Operating Temperature	0 to 50°C (depending on the model)
Storage Temperature	-20°C to 60°C
Protection Rating	IP65 (front panel)
Dimensions	Varies depending on the model
Weight	Varies depending on the model
CPU	Proprietary Omron CPU (performance varies depending on the model)
