Section 7 System Settings 7-1 Settings
NS-Designer Operation Manual
Serial Port A and Serial Port B
Select PLC or Bar-Code Reader under Serial Port A or Serial Port B in the Comm-All Tab Page to en-
able the Serial Port A Tab Page or Serial Port B Tab Page.

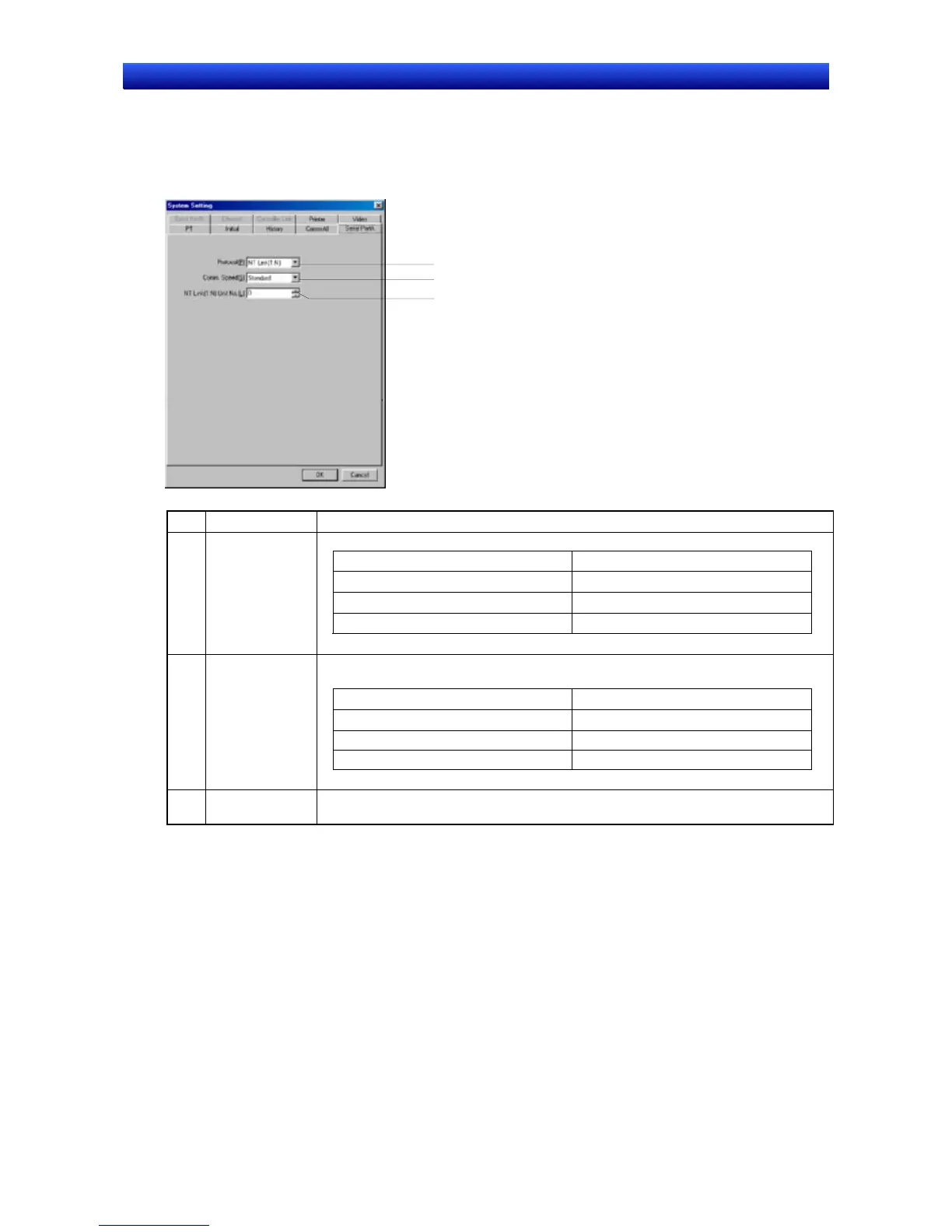

When Communications Destination Is Set to PLC:
1
2
3
No. Setting Details
1 Protocol Select the protocol from 1: 1 NT Link, 1: N NT Link, or Host Link.
Using both serial ports A and B Supported/not supported
1: 1 NT Link + 1: 1 NT Links Supported
1: 1 NT Link + 1: N NT Links Supported
1: N NT Links + 1: N NT Links Supported
2 Comm. Speed Select the communications speed. The communications speed range depends on the
protocol setting. Refer to the following table for applicable ranges.
Protocol Transfer speed selection range
1: N NT Links Normal or high-speed
1: 1 NT Link No settings
Host Link 9,600 or 19,200 bps
3 NT Link (1: N)
Unit No.
Select the unit number for the 1: N NT Link from 0 to 7. When a 1: 1 NT Link is se-
lected as the protocol, this setting is not required.
7-11
