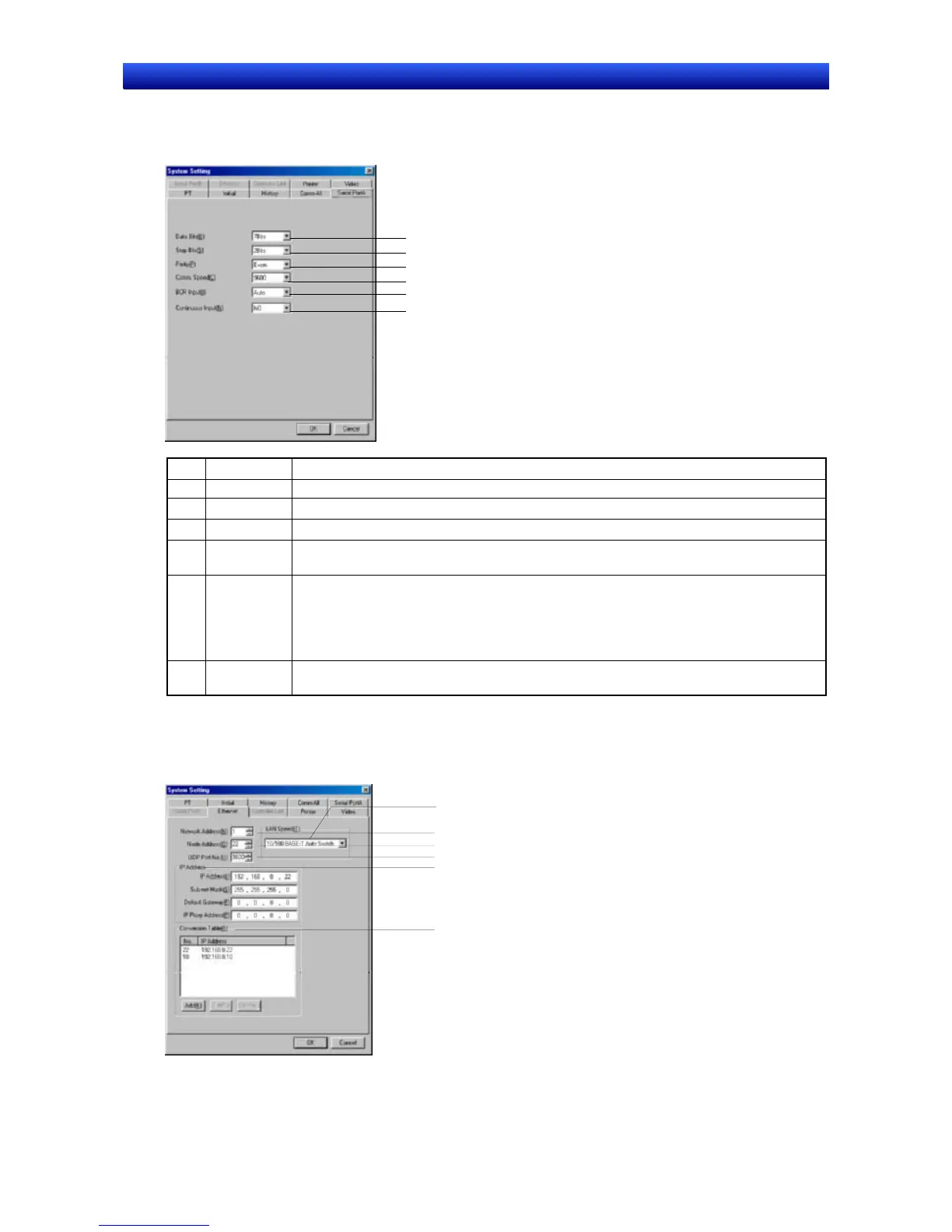

Section 7 System Settings 7-1 Settings
NS-Designer Operation Manual
When Communications Destination Is Set to Bar-Code Reader:
1
3
4
5
2
6
No. Setting Details
1 Data Bits Select the data bit length for the bar code reader from 7 or 8 bits.
2 Stop Bits Select the data stop bit length for the bar code reader from 1 or 2 bits.
3 Parity Select the data parity bits for the bar code reader from none, even, or odd.
4 Baud Rate Select the baud rate for communications with the bar code reader from 4,800, 9,600, or
19,200 bps.
5 BCR Input Select the confirmation method used after inputting data in the input column from the
following options.
Auto: Automatically confirms data when it is read from the bar code reader.
Manual: Confirms data when the Enter Key is pressed. Data and character strings can be
added.
6 Continuous
Input
Set whether to move focus to the next object when confirming bar code inputs. This set-
ting can be enabled when BCR Input is set to Auto.
Ethernet
Click the Ethernet Tab.
1
2
3
4
5
6
7-12
