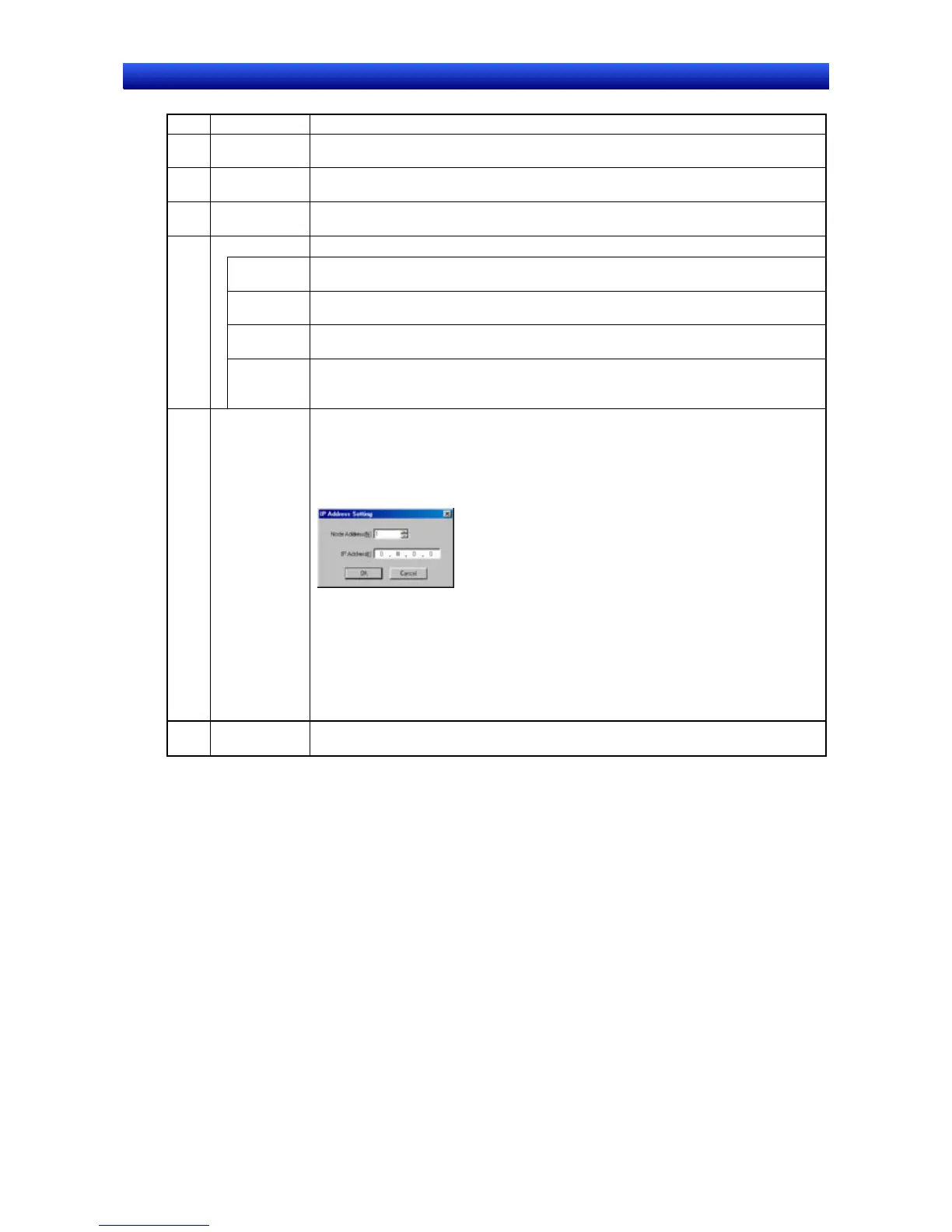

Section 7 System Settings 7-1 Settings
NS-Designer Operation Manual
No. Setting Details
1 Network Ad-
dress.
Set the network number of the Ethernet network to which the PT is connected. The
number can be set between 1 and 127.
2 Node Address Set the node address of the PT in the Ethernet network. The address can be set be-
tween 1 and 254.
3 UDP Port No. Set the UDP port number to be used. The number can be set between 1024 and
65535.
4 IP Address
IP Address Set the IP address of the Ethernet to which the PT is connected.
The IP address can be set between 0.0.0.0 and 255.255.255.255.
Sub-net
Mask
Set the subnet mask of the Ethernet to which the PT is connected.
The subnet mask can be set between 0.0.0.0 and 255.255.255.255.
Default
Gateway
Set the IP router for communications with other networks.
The default gateway can be set between 0.0.0.0 and 255.255.255.255.
IP Proxy
Address
Set the IP address or IP proxy address of the transmission destination for Ethernet
communications.
Set the address between 0.0.0.0 and 255.255.255.255.
5 Conversion
Table
Create the conversion table converting FINS node addresses to IP addresses for
Ethernet communications. Up to 32 address combinations can be registered.
Procedure
• Adding Settings
1. Click the Add Button to display the following dialog box.
2. Set the node address and the IP address to be converted to, and then click the
OK Button. The setting range is as follows:
Node address: 1 to 253
IP address: 0.0.0.0 to 255.255.255.255
• Editing or Deleting Settings
Select the setting to be edited or deleted.
Click the Edit Button or the Delete Button.
6 LAN Speed Select the method for setting the Ethernet speed from 10/100BASE-T Auto Switch or
10BASE-T Fixed.
7-13
To Next Page
