Section 7 System Settings 7-1 Settings
NS-Designer Operation Manual

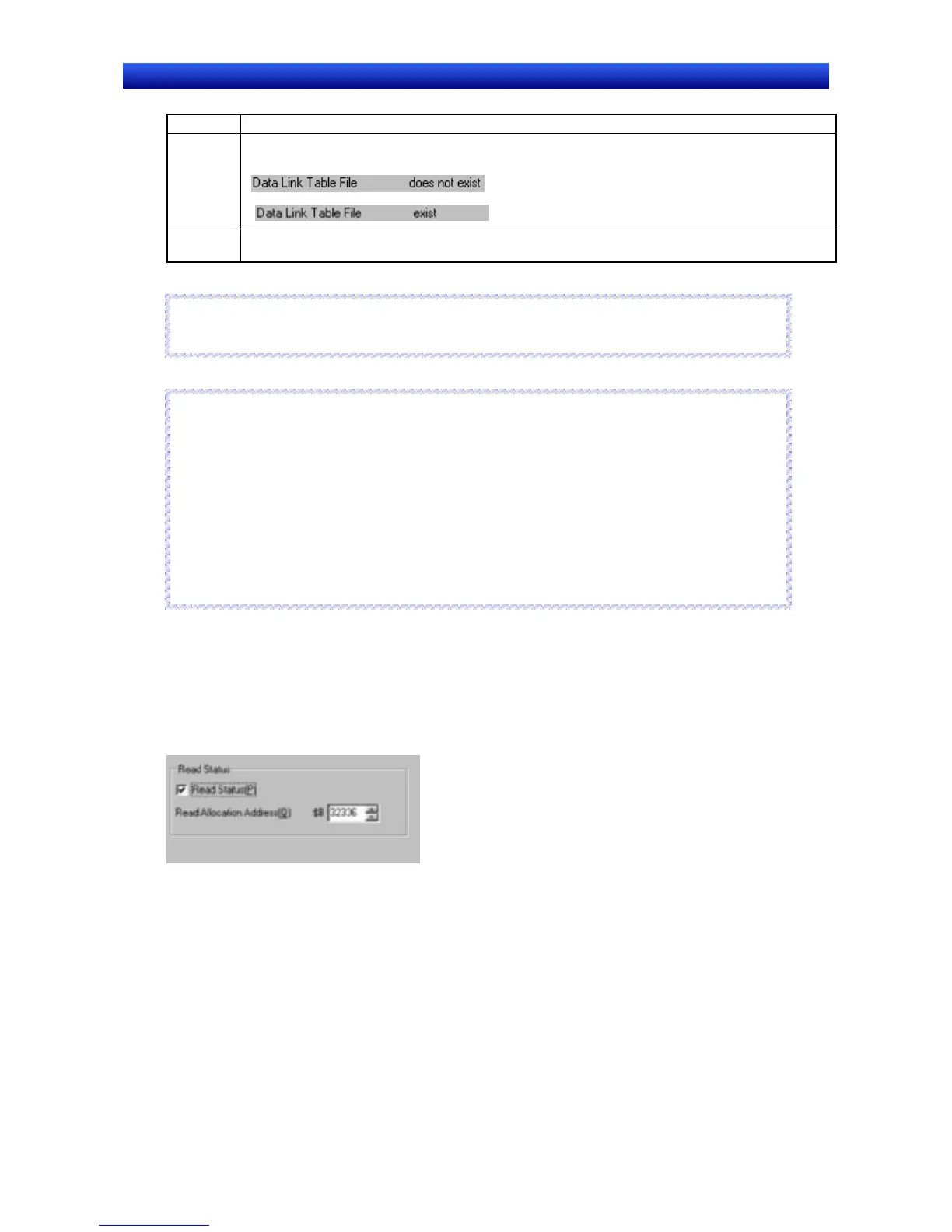

Number Details
1 Display whether the Data Link Tables exist in the folder storing the project file.
Examples: No Data Link Tables:
Data Link Table exists:
2
Used to select the Data Link Table file. A file name with extension .cl3 must be set. Click the Browse Button and
select the Data Link Table file. The specified Data Link Table will be resaved as ClkDLink.cl3 in the project folder.
Note
♦ Delete the data link tables from any node that is not participating in the data links.
N
N
o
o
t
t
e
e
Reference
• Any file name can be set when creating data link tables using Controller Link Support Software
or CX-Net. Specifying Data Link Tables in the Data Link Table Setting Dialog Box on
NS-Designer. The file will be saved as ClkDLink.cl3 in the project folder.
•
•
Data link tables can be set via a network. Set data link tables in the Controller Link I/F Unit
using CX-Net or Controller Link Support Software. Data Link Tables are not set in
NS-Designer. Setting data link tables via a network can be used to change data link tables.
When setting data link tables on the NS-Designer, the data link tables cannot be changed via
network. If the user attempt to change the settings of data link tables using Controller Link
Support Software or CX-Net, the settings in NS-Designer will remain. For this reason, projects
and setting files must be re-transferred to the PT when changing data link tables.
R
R
e
e
f
f
e
e
r
r
e
e
n
n
c
c
e
e
Read Status
Status indicates the operating status (network status), such as error information in the Controller Link
network and node participation status, and operating status (data link status). Reading the status
makes it possible to check whether an error has occurred and whether the machine is operating cor-
rectly.
When any $B address within the range is set in the Status Allocation Address, the address will be the
start address of 27 consecutive addresses to which status will be read. Refer to the Operation Manual
Appendix 8 Details of CLK Status for details on the allocation addresses.
7-15

Omron NS Specifications

General

Power Supply	24 VDC
Display Size	5.7 to 12.1 inches (depending on the model)
Resolution	320 x 240 to 800 x 600
Touchscreen Type	Resistive
Display Type	TFT LCD
Communication Interfaces	RS-232C, RS-422/485, Ethernet, USB
Memory	Flash memory
Operating Temperature	0 to 50°C (depending on the model)
Storage Temperature	-20°C to 60°C
Protection Rating	IP65 (front panel)
Dimensions	Varies depending on the model
Weight	Varies depending on the model
CPU	Proprietary Omron CPU (performance varies depending on the model)
