Omron NS User Manual

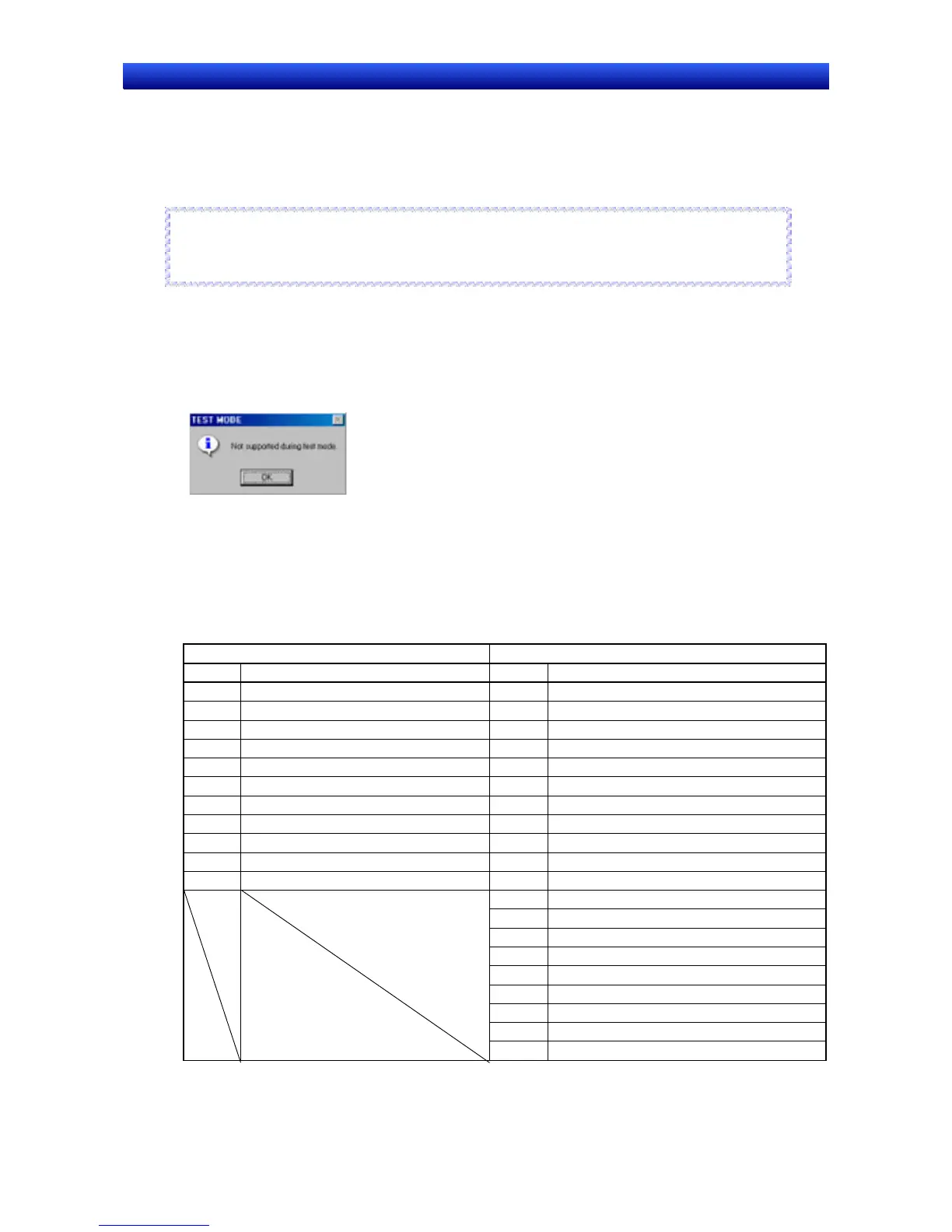

Section 8 Testing 8-1 Test Function
NS-Designer Operation Manual NS-Designer Operation Manual NS-Designer Operation Manual
•
•
Click the test mode icon at the top left of the window, and select Close from the Control Menu
Box that is displayed.
Press the Alt + F4 Keys.
2. A dialog box confirming whether to exit the test will be displayed. Click the Yes Button to exit the
test.
Reference
♦ When the menu bar is not displayed in the test screen, double-click on the test screen until the
menu bar is displayed.
R
R
e
e
f
f
e
e
r
r
e
e
n
n
c
c
e
e
Test Restrictions
The following restrictions apply to testing. The tests operate differently from PT operations.
1 Changing Date and Time
Date and time settings cannot be changed when using the test function, even if a new date or time
is input using the date and time functional objects.
2. Flicker Display Color
When flicker is performed in test mode, the inverse display color may differ from the color displayed
at the PT.
3. $SB and $SW Operations
In test mode, operations can be checked for the following system memory bits and words only.
When checking operations, change the $SB and $SW values directly.
Changes to other system memory values will not be processed.
$SB $SW
Offset Details Offset Details
+19 Prohibit Input +0 Current Screen No.
+33 Save Alarm/Event History +1 Current Pop-up Screen 1 No.
+36 Save Data Log +2 Position of Pop-up Screen 1 (X)
+38 Save Operation Log +3 Position of Pop-up Screen 1 (Y)
+39 Log Functional Object Operation +4 Current Pop-up Screen 2 No.
+40 Log Switch Screen Operation +5 Position of Pop-up Screen 2 (X)
+41 Log Macro Operation +6 Position of Pop-up Screen 2 (Y)
+45 Macro Error Dialog Control +7 Current Pop-up Screen 3 No.
+46 Notification of Macro Error +8 Position of Pop-up Screen 3 (X)
+47 Logging Process Error Flag +9 Position of Pop-up Screen 3 (Y)
+52 Data Block Operation Complete Flag +10 Current Label No.
+13 Password No. for Canceling Input Prohibition
+18 No. of Alarms/Events Occurred
+19 Occurred Alarm/Event ID
+20 Cancelled Alarm/Event ID
+21 Alarm/Event ID of Alarm/Event Object Macro
+23 Macro Error No.
+24 Screen Number Having Macro Error
+25 Object ID Having Macro Error
+26 Macro Timing Having Error
8-3

Omron NS Specifications

General

Power Supply	24 VDC
Display Size	5.7 to 12.1 inches (depending on the model)
Resolution	320 x 240 to 800 x 600
Touchscreen Type	Resistive
Display Type	TFT LCD
Communication Interfaces	RS-232C, RS-422/485, Ethernet, USB
Memory	Flash memory
Operating Temperature	0 to 50°C (depending on the model)
Storage Temperature	-20°C to 60°C
Protection Rating	IP65 (front panel)
Dimensions	Varies depending on the model
Weight	Varies depending on the model
CPU	Proprietary Omron CPU (performance varies depending on the model)
