Section 10 Transferring Data 10-1 Transferring Data to the PT
NS-Designer Operation Manual

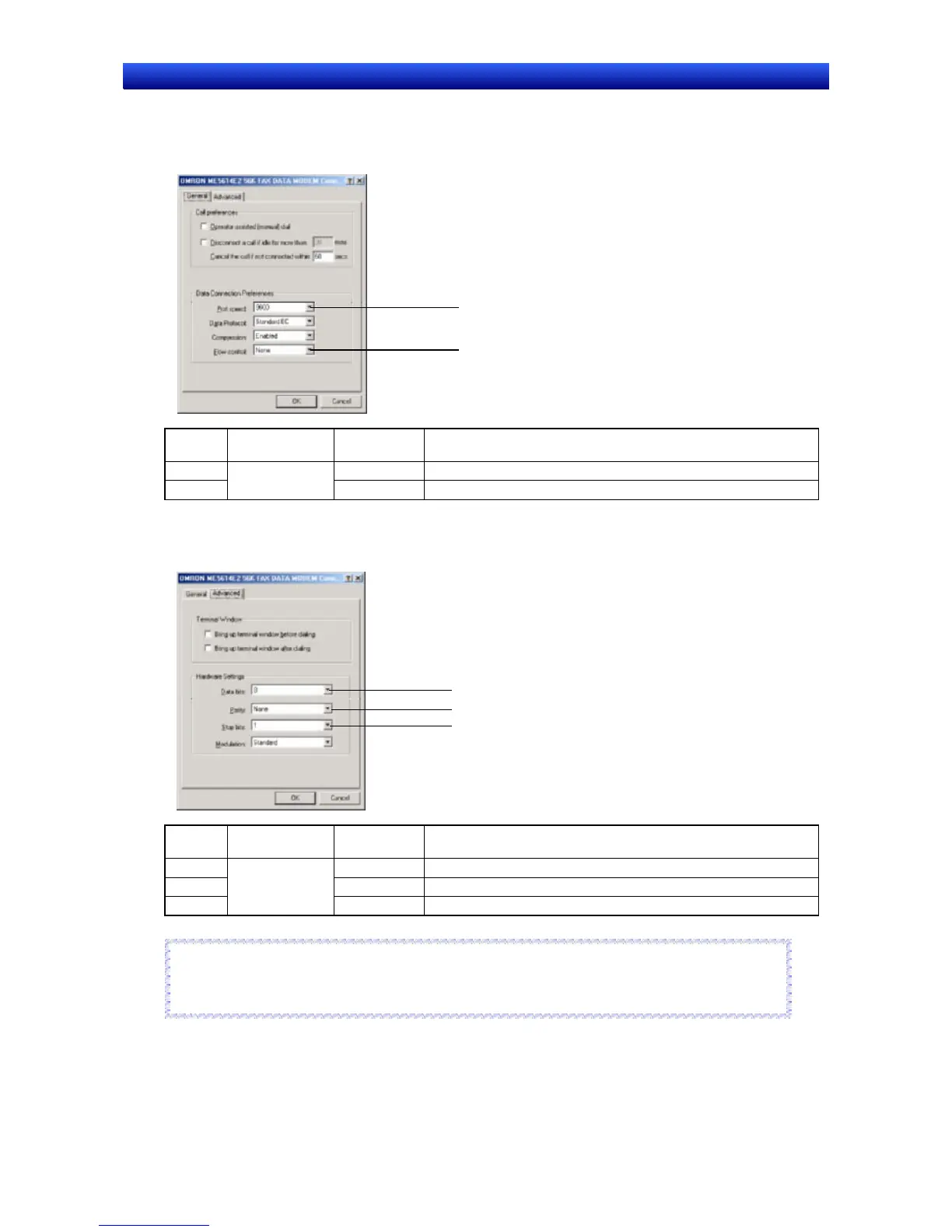

3. Click the Configure Button on the Modem Tab Page and set the modem properties.
Setting Example
Set the following items on the General Tab Page.
1
2
No.
Field on Gen-
eral Tab Page
Item Details
1 Port speed Set the baud rate of the modem.
2
Data connec-
tion options
Flow control This item enables or disables flow control. Disable flow control.
Make the following settings on the Advanced Tab Page.
No.
Field on De-
tails Tab Page
Item Details
1 Data bits Set the data length to 8 bits.
2 Parity Set the parity to “none.”
3
Hardware set-
tings
Stop bits Set 1 stop bit.
1
2
3
Reference
♦ If the option to Auto-reset after the transmission is selected, the PT will be automatically reset and
the phone line will be disconnected after transfer has been completed.
R
R
e
e
f
f
e
e
r
r
e
e
n
n
c
c
e
e
10-19
