Section 10 Transferring Data 10-1 Transferring Data to the PT
NS-Designer Operation Manual

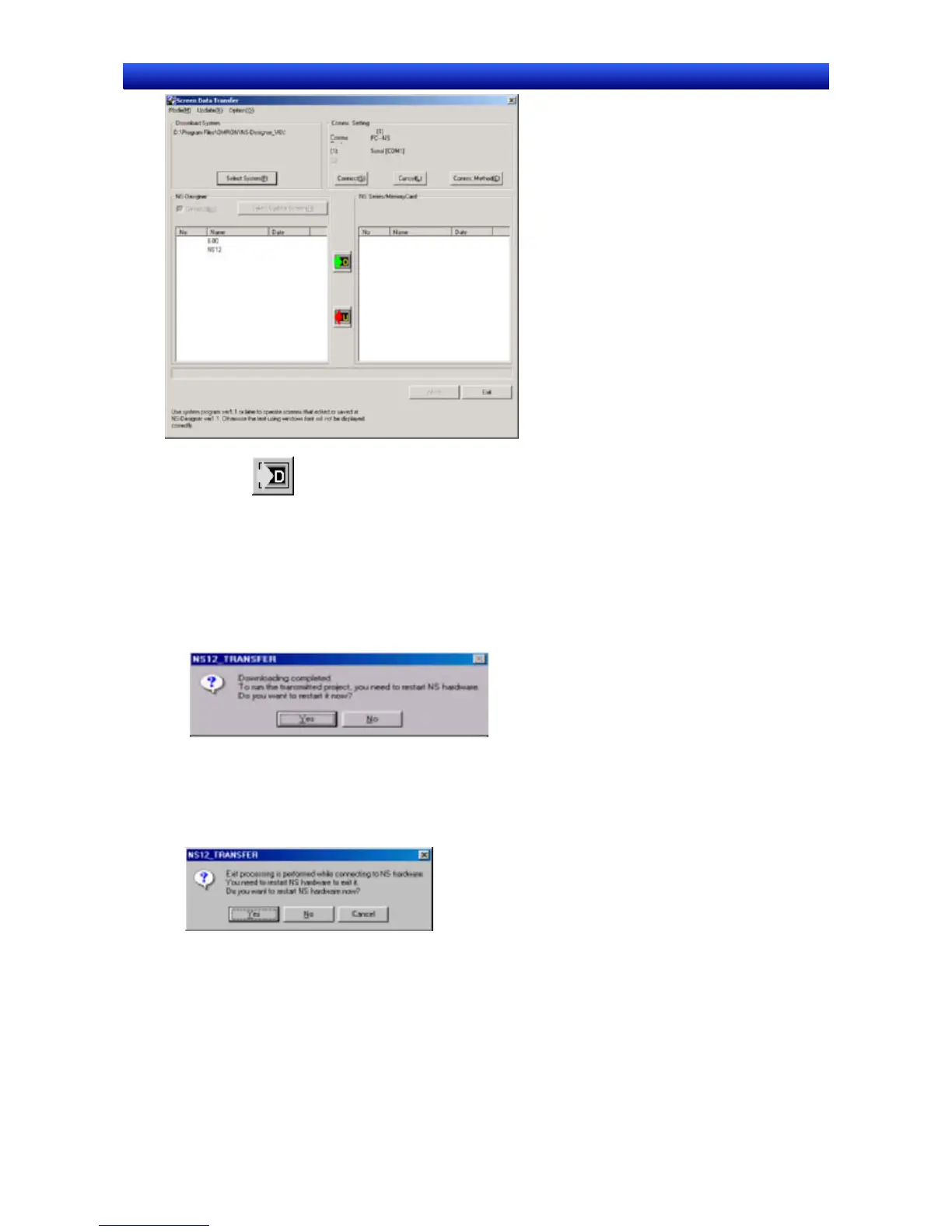

6. Click the Button. A confirmation dialog box will be displayed.
7. Click the Start Button. The download will be started.
The transfer progress will be displayed at the PT and in the Screen Data Transfer Dialog Box.
8. The following dialog box will be displayed at the computer when the data transfer is finished. The
PT must be restarted to run the project that has been transferred. Click the Yes Button to restart
the PT.
Click the No Button to return to the Screen Data Transfer Dialog Box, and downloading can be
performed again.
Even if the No Button is clicked, the confirmation message shown below will be displayed when
exiting the Screen Data Transfer Dialog Box. If the Yes Button is clicked, the PT will be restarted. If
the No Button is clicked, it will become necessary to restart the PT directly. To return to the Screen
Data Transfer Dialog Box, click the Cancel Button.
10-26

Omron NS Specifications

General

Power Supply	24 VDC
Display Size	5.7 to 12.1 inches (depending on the model)
Resolution	320 x 240 to 800 x 600
Touchscreen Type	Resistive
Display Type	TFT LCD
Communication Interfaces	RS-232C, RS-422/485, Ethernet, USB
Memory	Flash memory
Operating Temperature	0 to 50°C (depending on the model)
Storage Temperature	-20°C to 60°C
Protection Rating	IP65 (front panel)
Dimensions	Varies depending on the model
Weight	Varies depending on the model
CPU	Proprietary Omron CPU (performance varies depending on the model)
