Section 2 Setup, Starting, and Exiting 2-2 Installing the NS-Designer
NS-Designer Operation Manual NS-Designer Operation Manual

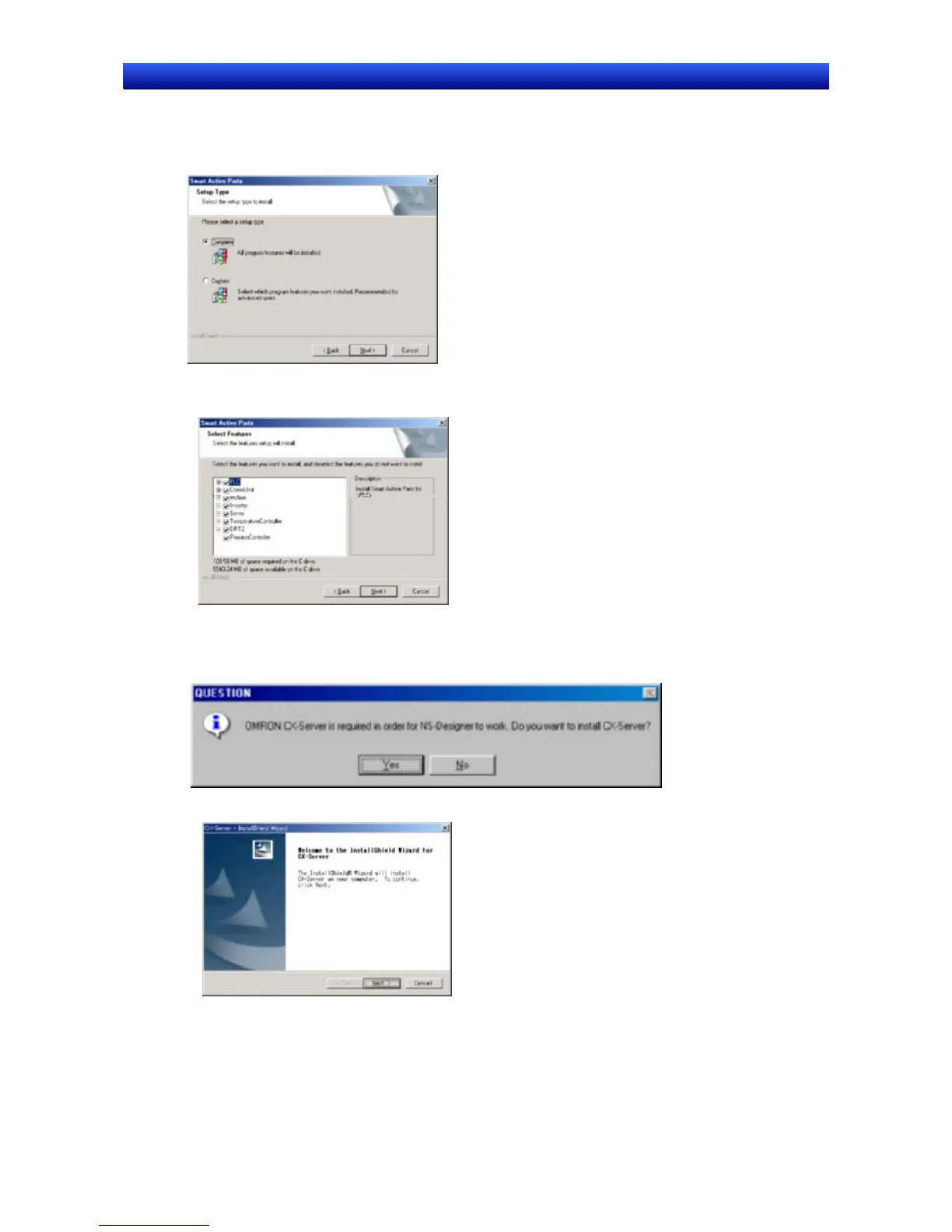

7. The Setup Type Dialog Box will be displayed. Select the setup type and click the Next Button. If
Complete is selected, proceed to step 9.
8. The dialog box for selecting features will be displayed. Select the Smart Active Parts to be installed
and click the Next Button.
9. During installation, the installation progress is displayed as a percentage. When installation has
been completed, the following dialog box will be displayed. Click the Finish Button.
10. A message will be displayed to confirm installation of the CX-Server. Click the Yes Button.
11. The following screen for installing the CX-Server will be displayed.
2-4
