Section 2 Setup, Starting, and Exiting 2-5 User Interface
NS-Designer Operation Manual NS-Designer Operation Manual

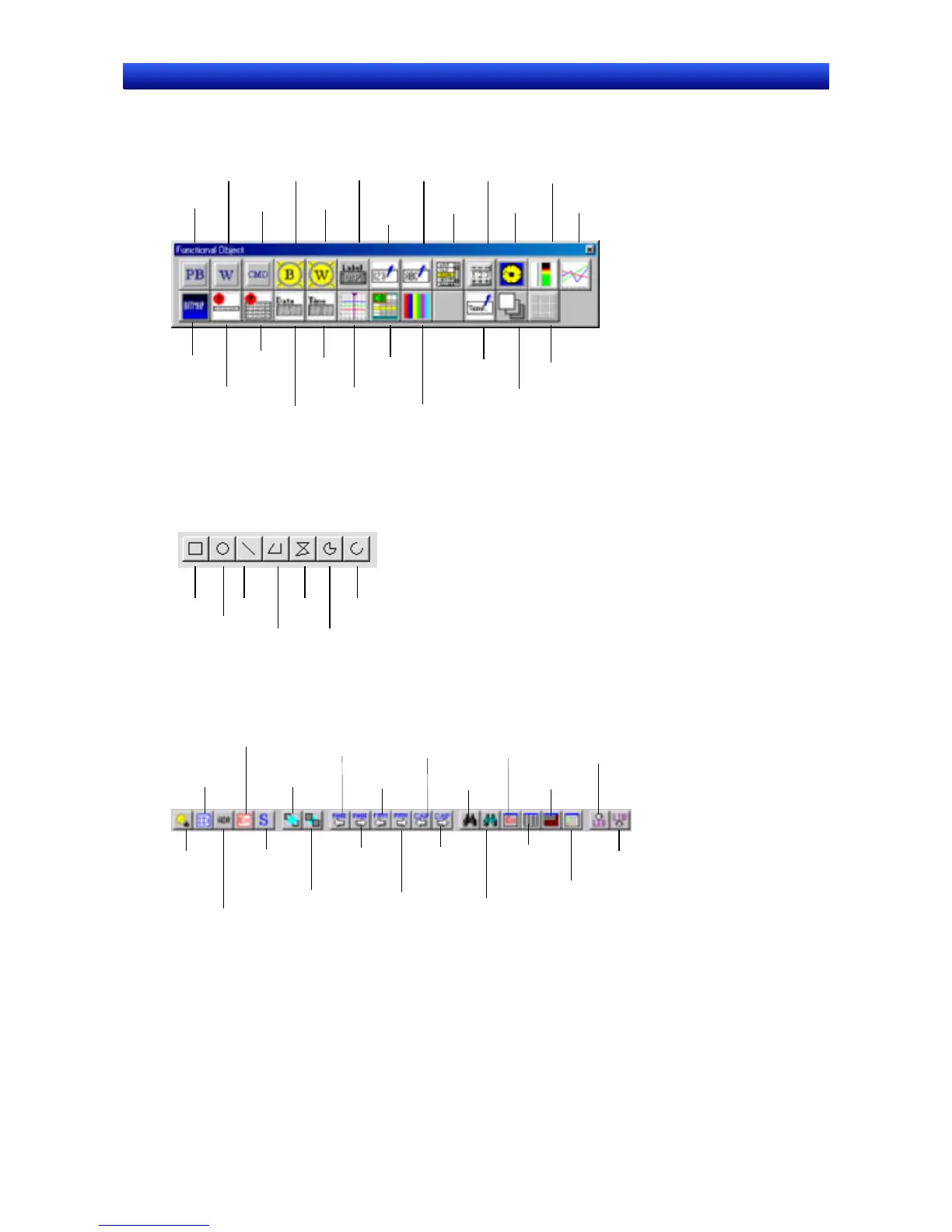

Functional Objects Toolbar
Displays screen creation functions for functional objects as icons. Select the icon button of the func-
tional object to be used in creating the screen to start screen creation.
Level
Meter
ON/OFF
Button
Word
Button
Command
Button
Bit
Lamp
Word
Lamp
Text
String Display
& Input
List
Selection
Thumbwheel
Switch
Analogue
Meters
Broken-line
Graph
Alarm/Event
Display
Alarm/Event
Summary &
History
Date
Time
Data Log
Graph
Frame
Ta bl e
Bitmap
Numeral
Display &
Input
Data Block
Ta bl e
Video Display
Temporary
Input
Fixed Objects Toolbar
Displays fixed object drawing functions as icons. Select the icon button for the fixed object to be drawn
and start drawing.
Rectangle
Circle/Oval
Straight
Line
Polyline Sector
Polygon Arc
Operations Toolbar
Displays frequently used functions from the View and Tools Menus as icons.
Simulate
ON/OFF
Show Address
Show Sheet
Ob
j
ect
Bring to
Front
Send to
Back
Previous
Screen
Next Screen
Previous
Frame Page
Next Frame
Page
Previous
Label
Find
Validation
Result
Next
Label
Registe
r
Library
List Up
Addresses
Used
Address Cross
Reference
Functional
Object List
List Up Functional
Objects Used
Use
Library
Show ID
Show Erro
r
Object
2-17

Omron NS Specifications

General

Power Supply	24 VDC
Display Size	5.7 to 12.1 inches (depending on the model)
Resolution	320 x 240 to 800 x 600
Touchscreen Type	Resistive
Display Type	TFT LCD
Communication Interfaces	RS-232C, RS-422/485, Ethernet, USB
Memory	Flash memory
Operating Temperature	0 to 50°C (depending on the model)
Storage Temperature	-20°C to 60°C
Protection Rating	IP65 (front panel)
Dimensions	Varies depending on the model
Weight	Varies depending on the model
CPU	Proprietary Omron CPU (performance varies depending on the model)
