Section 4 Screen Types and Operations 4-1 Basic Operations
NS-Designer Operation Manual

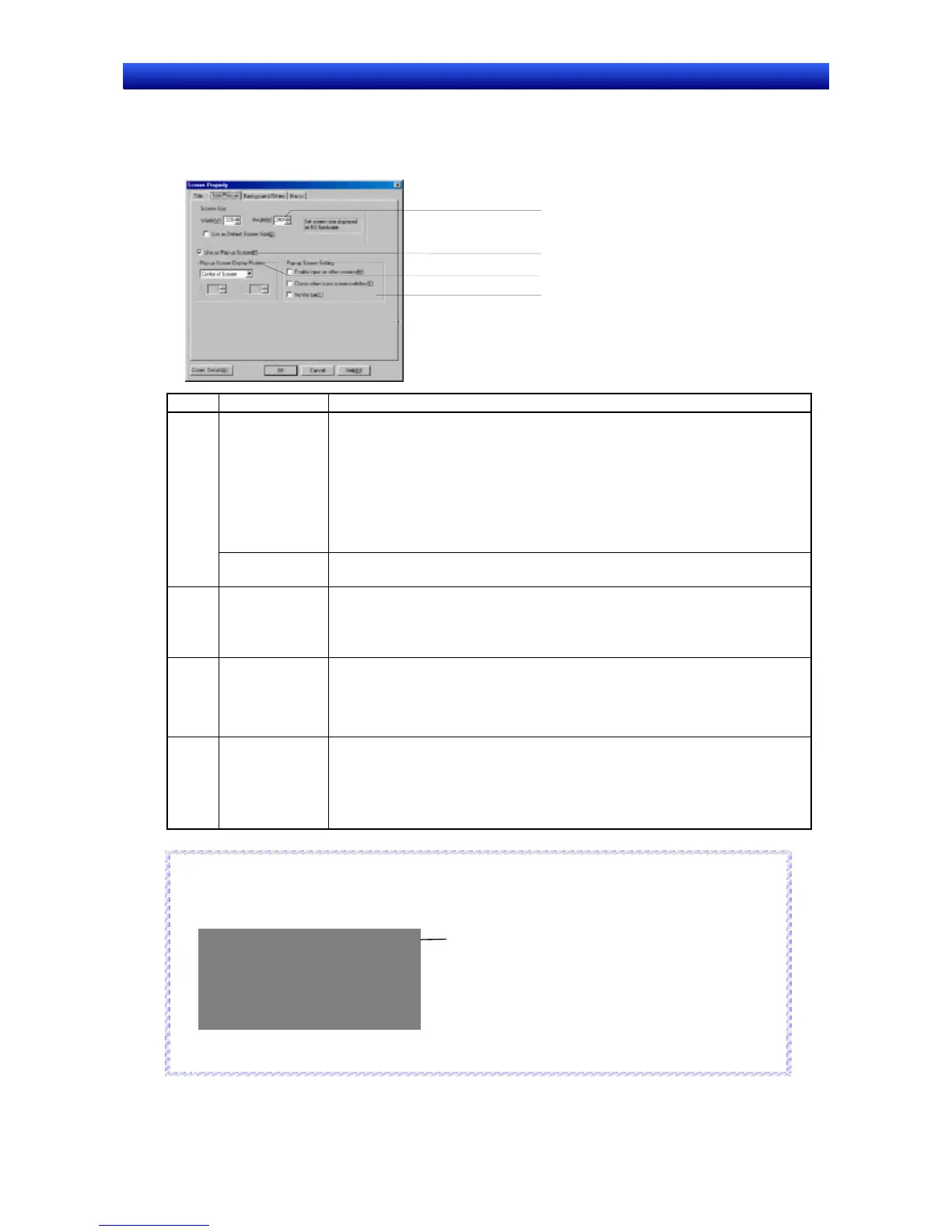

Size/Pop-up
1. Select the Size/Pop-up Tab.
2. Set the screen size and pop-up screen setting.
1
2
3
4
No. Item Details
1 Screen Size Set the PT screen display size.
The maximum screen size that can be set depends on the PT model selected.
NS12: Up to 796 dots horizontal × 566 dots vertical with title bar.
Up to 796 dots horizontal × 596 dots vertical without title bar.
NS10, NS8: Up to 636 dots horizontal × 446 dots vertical with title bar.
Up to 636 dots horizontal × 476 dots vertical without title bar.
NS5: Up to 316 dots horizontal × 206 dots vertical with title bar.
Up to 316 dots horizontal × 236 dots vertical without title bar.
Use as Default
Screen Size
Select this item to set the size as the default the next time a new screen is cre-
ated.
2 Use as Pop-up
Screen
Select this item to use the screen as a pop-up screen when the PT is running.
When not selected, the screen is used as a base screen.
Screen number 0 cannot be set as a pop-up screen.
Settings of other screens can be changed freely.
3 Pop-up Screen
Display Position
Set the position where the pop-up screen is displayed while the PT is running.
Select the position from one of the following settings.
Center of Screen, Top Left of Screen, Bottom Left of Screen, Top Right of
Screen, Bottom Right of Screen, or Any Position. When Any Position is selected,
specify the X and Y coordinates for the top left of the pop-up screen.
4 Pop-up Screen
Setting
Set the settings related to the pop-up screen.
Each of the setting items is as follows: Select each item to enable the setting.
Enable input on other screens
Closes when base screen switches
No title bar
Reference
♦ If No title bar is selected under Pop-up Screen Setting, the screen’s frame will not be displayed
when the screen is displayed on the PT.
♦ If Any Position is selected under Pop-up Screen Display Position and the values input for the screen
coordinates are out of range, the pop-up screen will be displayed as a full screen.
R
R
e
e
f
f
e
e
r
r
e
e
n
n
c
c
e
e
No title bar or frame displayed
Title bar and frame dis-
played
4-2

Omron NS Specifications

General

Power Supply	24 VDC
Display Size	5.7 to 12.1 inches (depending on the model)
Resolution	320 x 240 to 800 x 600
Touchscreen Type	Resistive
Display Type	TFT LCD
Communication Interfaces	RS-232C, RS-422/485, Ethernet, USB
Memory	Flash memory
Operating Temperature	0 to 50°C (depending on the model)
Storage Temperature	-20°C to 60°C
Protection Rating	IP65 (front panel)
Dimensions	Varies depending on the model
Weight	Varies depending on the model
CPU	Proprietary Omron CPU (performance varies depending on the model)
