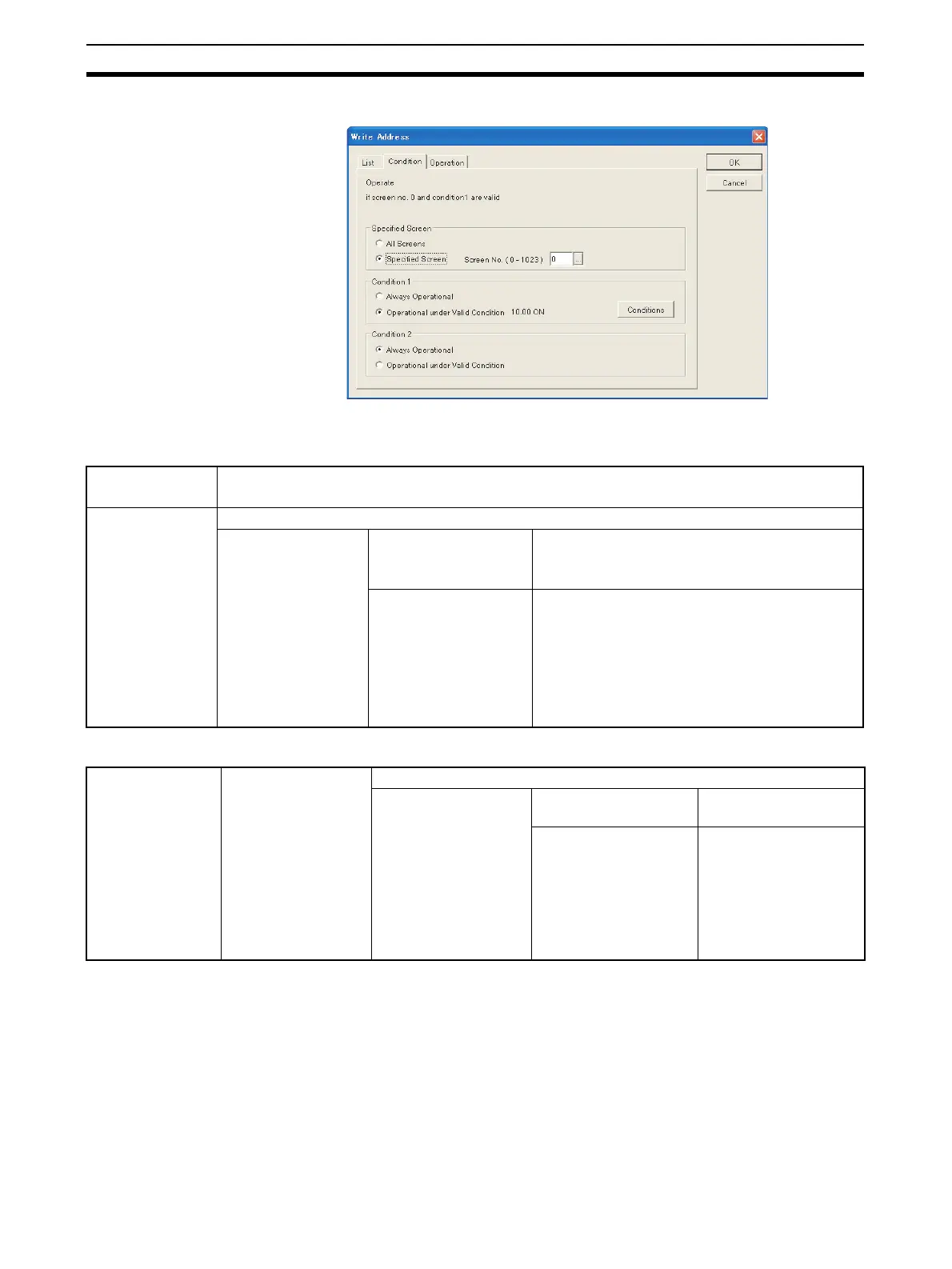

2. Click the Settings Button. The Write Address Dialog Box will be displayed.
Sets the following items.
Conditions Tab Page
Operation Tab Page
Condition 2 can also be applied. An AND condition is used.
Specified Screen • All Screens
• Specified Screen Screen No.: 0 to 1023 (3FF hex)
Conditions • Always Operational
• Operational under
Valid Condition
Relation Code • Bit
• Word (unsigned)
• Double Word (unsigned)
Address (at this value) Bit: ON or OFF
Word or double word: Communications address =
Value 1, =, <, >, ≤, ≥, Value 1 < Communications
address < Value2, Value 1 < Communications
address ≤ Value 2, Value 1 < Communications
address ≤ Value 2, Value 1 ≤ Communications
address < Value 2, Value: Fixed value (Word: 0 to
65,536, Double-word: 0 to 4,294,967,295)
Operation Operation Mode Set, Reset, Momentary, Alternate, etc
Others Value set (1W), Value
set (2W)
Output: Address, Value
Add (4-digit BCD), Add
(8-digit BCD), Add (DEC
1W), Add (DEC 2W),
Sub (4-digit BCD), Add/
Sub (8-digit BCD), Sub
(DEC 1W), Sub (DEC
2W), for thumb rotary
switch
Output: Add/Sub
Source, Value
