NV-Designer Window Names and Menus Section 3-2
3-2-5 Screen Manager
The Screen Manager is a dialog box for managing the base screens in a
project.
It can be used as a list for opening screens.
Screens can be copied, pasted, cut, and deleted using the Screen Manager.
Multiple projects can be started simultaneously and editing can be performed
between the Screen Managers.
Project Name and Base
Screen List
The project name is displayed at the upper left of the window.
Serial numbers starting from 0 will be assigned to projects that have not yet
been saved.
This is how projects can be distinguished if multiple projects are created.
A base screen is displayed by its number and name.
Note The number of screens that can be registered depends on the con-
tents of the screens.
Creating Screens Double-click the number of the base screen that you want to create, or select
the number and click the Open Button.
Editing the Screen Copy: Select the screen to copy, click the Copy Button, input a different
screen number, and click the Paste Button.
Move: Select the screen to move, click the Cut Button, input a different
screen number, and click the Paste Button.
Delete: Select the screen to delete and then click the Delete Button.

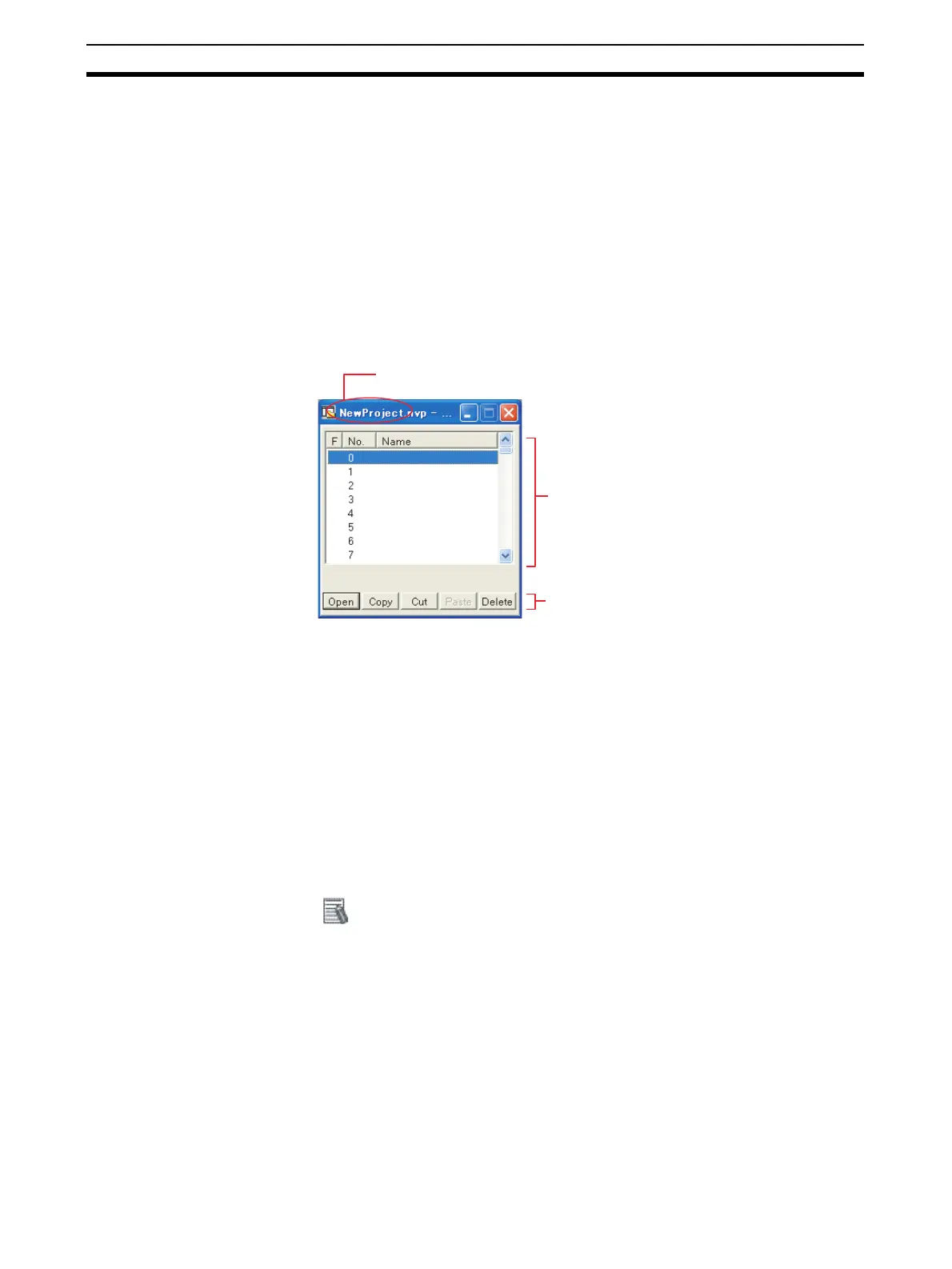

Project name
List of screens
0 to 1,023
Command Buttons
Additional Information
• The copy, paste, cut, and delete functions can also be accessed by right-click-
ing on the desired screen.
• The “+” sign will be displayed in the F column if a screen is copied and pasted.
• Multiple Screen Managers can be displayed simultaneously and screens can
be copied or moved between files. However, if the models of NV-series PT are
different and the screen cannot be pasted, a message saying so will be dis-
played.
