Omron NV Series - Creating Base Screens; NV-Designer Configuration (Optional)

43
Creating a Simple Screen Section 4-2
Example: With a CP-series PLC, CIO 0 to CIO 2 are allocated to built-in
inputs, so the words allocated to the Bit Area must always be changed from
the defaults.

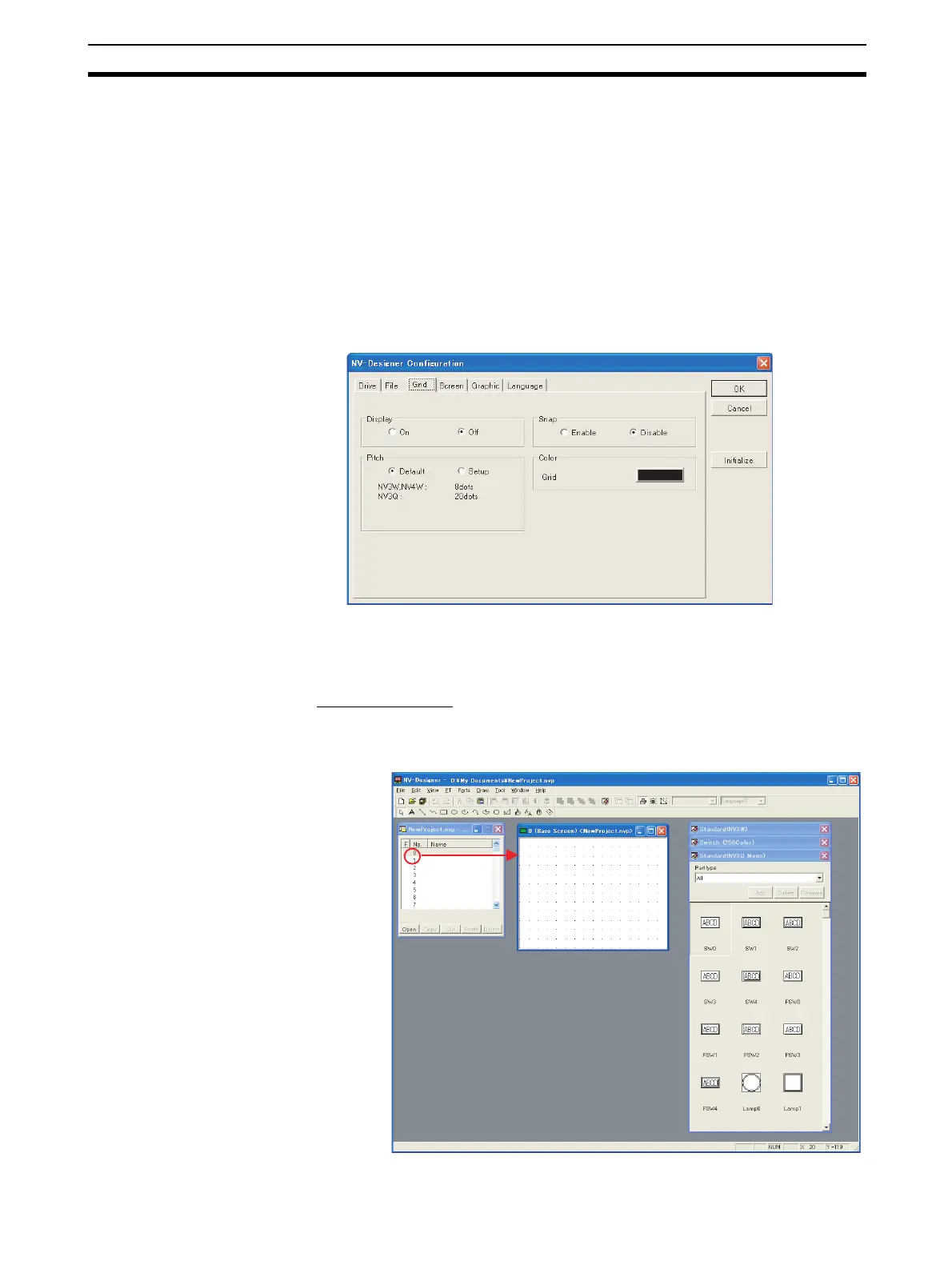

4-2-3 NV-Designer Configuration (Optional)
The NV-Designer Configuration can be used to change the display settings for
the NV-Designer.
1,2,3... 1. Select NV-Designer Configuration from the Tool Menu.
2. Change the parameters in the following window.
(Example: A grid can be displayed on the base screens by specifying it in
here.)
4-2-4 Creating Base Screens
Use the following procedure to create the sample screen.
Opening Screen 0
1,2,3... 1. Double-click “0” in the Screen Manager at the upper left of the window. The
base screen with screen number 0 will open.
