Omron NV Series - 4-2-10 Starting PLC Communications; Connecting the PT and PLC

52
Creating a Simple Screen Section 4-2

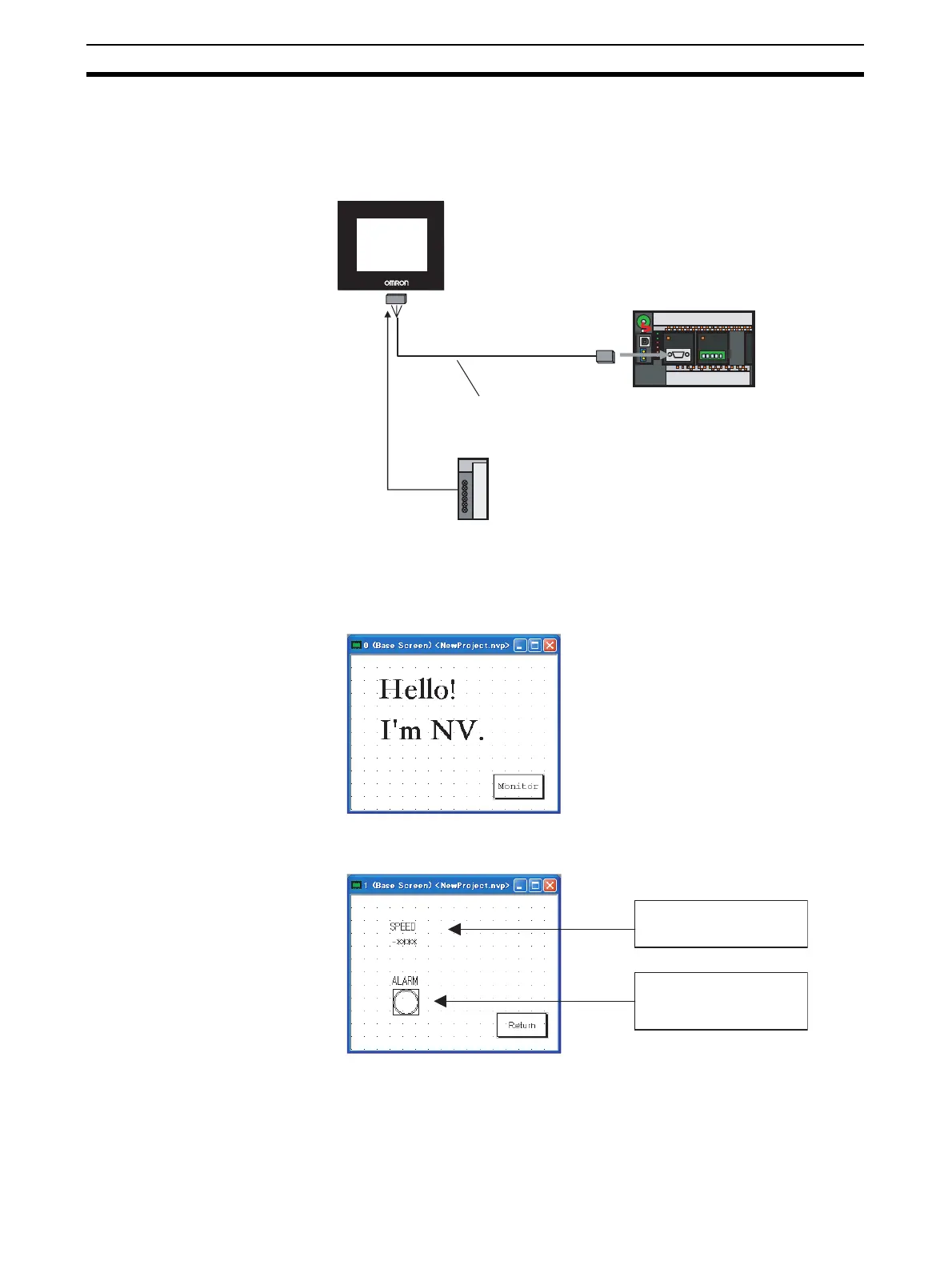

4-2-9 Connecting the PT and PLC
You can connect the PLC to the NV3Q using a RS-232C cable.
4-2-10 Starting PLC Communications
1,2,3... 1. Turn ON the PLC.
2. Screen 0 will be displayed. Touch the Monitor Switch.
3. The screen will change to screen 1 and the following information will be
monitored.
4. Touch the Back Switch to return to the previous screen (screen 0).
NV3Q
PLC
PLC Connecting Cable
Host Link connection
24-V power supply
S8JX
XW2Z-200T-3 (2 m without 5-V line)
XW2Z-500T-3 (5 m without 5-V line)
The contents of D100 will
be displayed.
The lamp color changes
when CIO 100.00 turns ON.
