124
Data Parts and Keyboard Parts Section 7-7

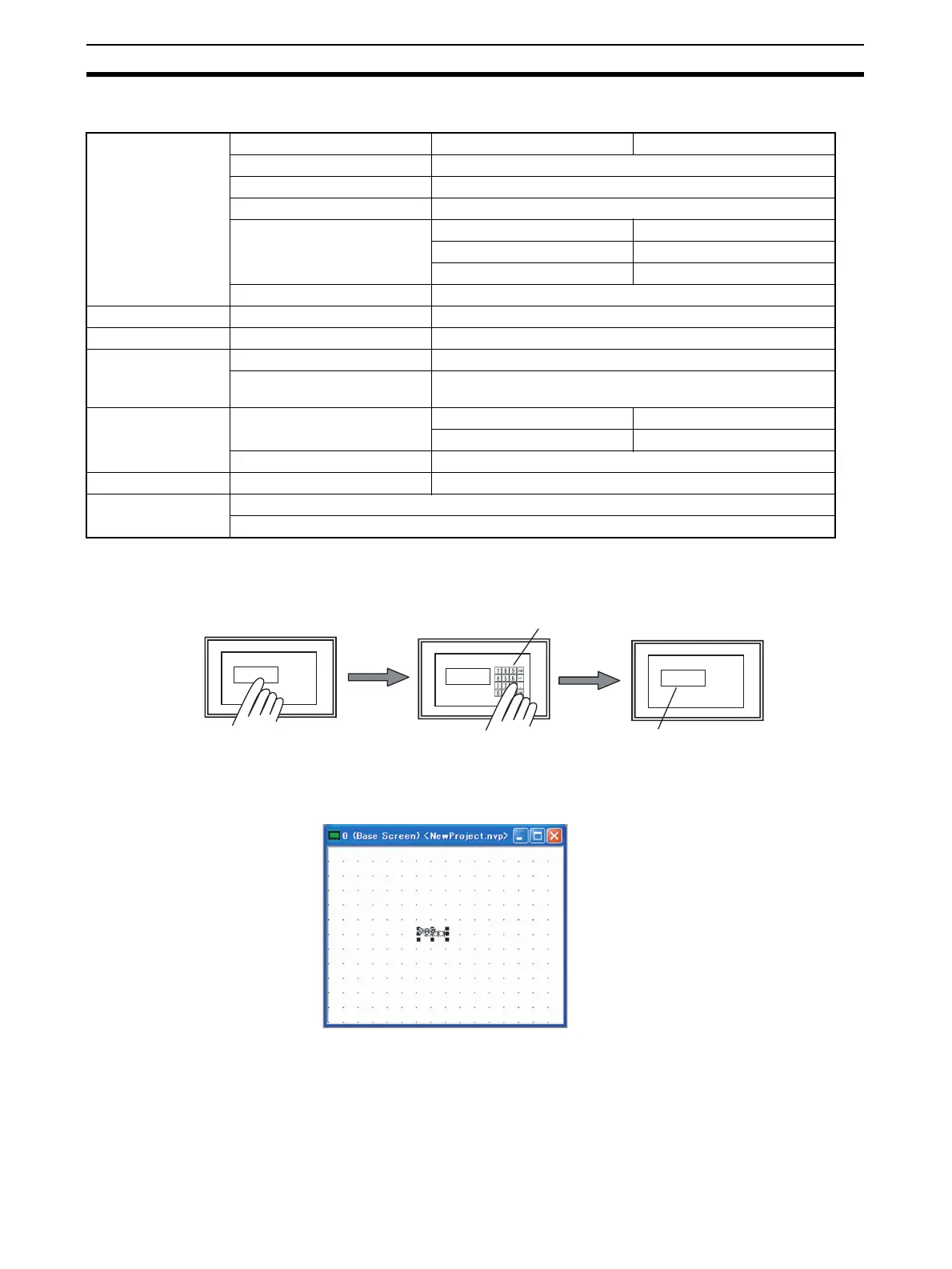

7-7-3 Default Settings of Data Parts
7-7-4 Settings for Creating an Edit Keyboard Screen
Creating a Sample Screen
1,2,3... 1. Open base screen 0 and position a data part. (Select Parts No. from the
View Menu to display part numbers in advance.)
Basic Setup
Displayed data Number of digits 4
Data format DEC (1W)
Zero suppression On
Address D100
Size
Font Normal
Ver tical 1
Horizontal 1
Decimal point specification Off
Input Off
Display/Hide Always displayed
Reverse/Blink Normal Off
When condition is met (prior-
ity)
Off
Color and Form
Color
Characters Black
Background White
Display Frame Off
Option Scaling Off
Operation Security Off
Off
0
0
1234
Screen 0
Touch the data part.
Screen 0
Keyboard screens
Enter a value.
Screen 0
The value will be displayed in the data par
t
Click "0" in the Screen Man-
ager, and then drag the data
part from the standard parts
library and drop it on the base
screen.
